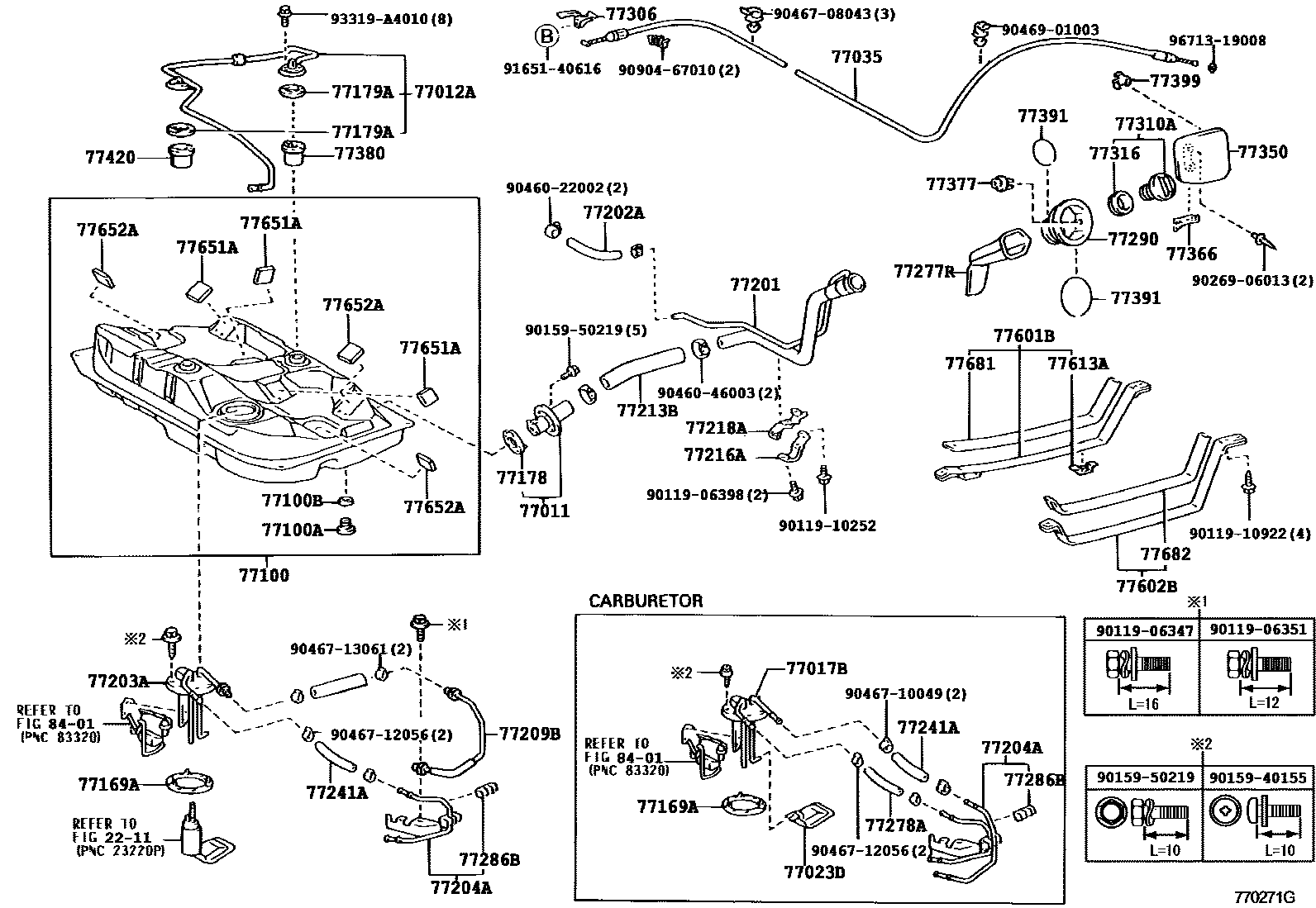

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12090iCDE110,EE110,WZE110,ZZE11#¥2,250199704-200109

main77011-12130iAE115¥2,060199704-200107

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12140iEE110¥4,370199704-199910

main77012-12140iZZE11#..LHD¥4,370200008-200109

ISRAEL SPEC OR EUROPEAN POSSESSION SPEC OR CHINA SPEC

main77012-12150iAE115¥2,360199704-200107

main77012-12180iCDE110,EE110,WZE110,ZZE11#¥5,100199910-200109

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-12500iAE115¥6,000199704-200107

main77017-12600iCE110¥9,200199704-199910

main77017-12630iEE110¥9,200199704-199910

sub77017-12670¥9,200

main77017-12660iCDE110,WZE110¥9,200200001-200109

main77017-12670iEE110¥9,200199910-200107

77023DFILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iEE110¥1,020199704-200107

main77023-32030iAE115¥1,020199704-200107

main77023-32040iCE110¥870199704-200109

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12220iAE111,CE110,EE111..RHD¥1,680199704-200107

main77035-12370iAE115..SOL;CDE110,EE110,WZE110,ZZE11#..LHD¥1,970199704-200109

77100TANK ASSY, FUEL

main77001-12810iCDE110,WZE110¥43,600200001-200109

sub77001-12850

main77001-12931iEE110,ZZE11#¥46,300199704-200109

main77001-12936iAE115¥41,800199704-200107

77100APLUG(FOR FUEL TANK)

main90341-20004iZZE11#..LHD¥360199704-200109

77100BGASKET(FOR FUEL TANK)

main90430-20007iZZE11#..LHD¥220199704-200109

77169AGASKET, FUEL SUCTION TUBE SET

main77169-12030iCDE110,EE110,WZE110,ZZE11#¥630199704-200109

main77169-14010iAE115¥230199704-200107

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥120199704-200109

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iWZE110¥230199704-200109

sub77179-26011¥190

main77179-26010iZZE11#¥230199910-200109

ISRAEL SPEC OR EUROPEAN POSSESSION SPEC OR CHINA SPEC

sub77179-26011¥190

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12430iCE110¥10,300199704-200109

main77201-12500iAE111,EE11#¥10,500199704-200109

main77201-12550iAE115¥12,700199704-200107

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77269-12050iEE110,ZZE11#¥1,280199910-200109

L=220

main95311-13022iEE110¥590199704-200109

L=220

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-12170iAE111,EE111¥6,100199704-199910

main77203-12190iAE115¥6,400199704-200107

main77203-12280iZZE11#¥5,800199910-200109

77204ATUBE, FUEL TANK RETURN

main77204-12010iCE110¥2,360199704-200109

main77204-12020iAE111,EE111¥1,920199704-199910

main77204-12030iAE115¥2,460199704-200107

main77204-12060iEE110¥2,250199704-200107

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-12080iAE111,EE111¥3,440199704-199910

main77209-12120iAE115¥4,130199704-200107

main77209-12150iZZE11#¥3,440199910-200109

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12150iAE115¥4,190199704-199910

main77213-12160iAE111,EE11#¥3,910199704-199910

main77213-12170iCE110¥3,500199704-200109

sub77213-12220¥3,480

main77213-12220iEE110,ZZE11#¥3,480199910-200109

main77213-12230iAE115¥3,790199910-200107

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12070iAE111,CE110,EE11#¥840199704-200109

main77216-12080iAE115¥620199704-200107

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12030iCDE110,EE110,WZE110,ZZE11#¥1,000199704-200109

main77218-12040iAE115¥750199704-200107

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-04020iEE110¥510199704-200107

L=200(*H,L=110)

main95333-06020iCDE110,WZE110¥480199704-200109

L=200(*H,L=110)

sub95337-06020¥570

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12160iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥3,490199704-200109

77278AHOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

main95333-06020iEE110¥480199704-200107

L=200(*H,L=110)

sub95337-06020¥570

main95333-08020iCE110¥320199704-200109

L=200(*H,L=120)

sub95337-08020¥310

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77285-12040iAE11#,CE110,EE111¥620199704-200109

main77285-12050iEE110¥610199704-200107

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12110iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥1,670199704-200109

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-13060iCDE110,WZE110,ZZE11#..RHD..WG¥1,610199704-200107

main77306-13081iAE115,CDE110,WZE110,ZZE11#..LHD..WG¥1,850199704-200109

77310ACAP ASSY, FUEL TANK

main77300-12010iCDE110,WZE110¥2,780200001-200109

main77300-52010iAE115,EE110,ZZE11#¥2,320199910-200109

main77310-12150iCE110¥2,780199803-199910

main77310-16011iAE11#,EE11#¥2,790199704-199803

sub77310-12140¥2,790

main77310-32011iCE110¥1,940199704-199803

main77310-48010iAE11#,EE11#¥2,800199803-199910

77316GASKET, FUEL TANK CAP

main77316-16010iAE11#,CE110,EE11#¥660199704-200109

77350LID ASSY, FUEL FILLER OPENING

main77350-12360iAE115,CDE110,WZE110,ZZE11#..WG¥3,590199704-200109

main77350-12410iCDE110,EE110,WZE110,ZZE11#..SED¥3,590199704-200109

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥430199704-200109

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥300199704-200109

77380VALVE ASSY, FUEL CUT OFF

main77380-12020iEE110,ZZE11#¥1,030199910-200109

COLD SPEC

main77380-12020iCDE110,WZE110¥1,030200001-200109

main77380-26010iAE111,CE110,EE11#¥780199704-200109

77391RING, FUEL INLET BOX

main77391-12010iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥240199704-200109

OUTER

main77391-12020iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥180199704-200109

INNER

77399HANGER, FUEL TANK CAP

main77399-12020iAE11#,CE110,EE11#¥740199704-200109

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-12010iEE110,ZZE11#¥1,260199910-200109

COLD SPEC

main77420-12010iCDE110,WZE110¥1,260200001-200109

main77420-26010iEE110¥780199704-200109

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12190iAE115¥2,470199704-200107

main77601-12210iAE111,CE110,EE11#¥2,470199704-200109

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12130iCDE110,EE110,WZE110,ZZE11#¥2,470199704-200109

main77602-12140iAE115¥2,470199704-200107

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-16030iAE115¥350199704-200109

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iAE11#,CE110,EE11#¥250199704-200109

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iCDE110,EE110,WZE110,ZZE11#¥590199704-200109

77681SEAT, FUEL TANK BAND, RH

main77681-32060iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥1,900199704-200109

77682SEAT, FUEL TANK BAND, LH

main77681-32060iAE11#,CE110,EE11#¥1,900199704-200109

8401

9011906347

main90119-06347¥80

9011906351

main90119-06351¥100

9011906398

main90119-06398¥70

9011910252

main90119-10252¥220

9011910922

main90119-10922¥170

9015940155

main90159-40155¥120

9015950219

main90159-50219¥70

9026906013

main90269-06013¥60

9046022002

main90460-22002¥530

9046046003

main90460-46003¥310

9046708043

main90467-08043¥160

9046710049

main90467-10049¥140

9046712056

main90467-12056¥70

9046713061

main90467-13061¥70

9046901003

main90469-01003¥220

9090467010

main90904-67010¥120

9165140616

main91651-40616¥60

93319A4010

main93319-A4010¥60

9671319008

main96713-19008¥210

62 parts on this diagram · 5 diagrams in section
