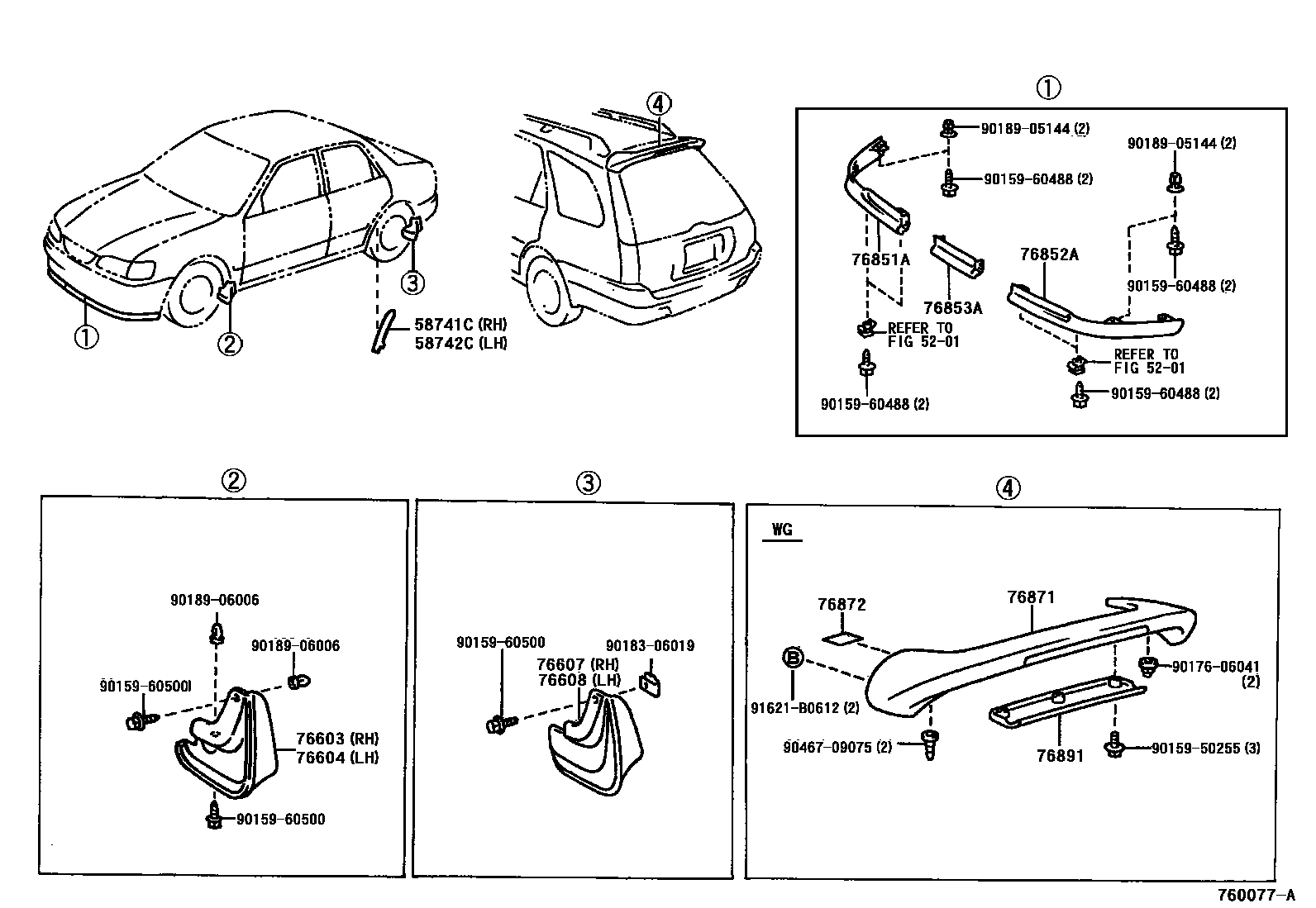

MUDGUARD & SPOILER

0001 1 0002 1

58741CPROTECTOR, QUARTER PANEL, RH

main58741-12130iAE11#,CE110,EE11#199704-200109

58742CPROTECTOR, QUARTER PANEL, LH

main58742-12120iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12181iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12181iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-12440iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-12430iAE11#,CE110,EE11#199704-200109

76851ACOVER, FRONT SPOILER, RH

main76851-12090iAE111,CE110,EE111..LUNA199808-199910

main76851-12130iAE115,CDE110,WZE110,ZZE11#..SOL199910-200109

76852ACOVER, FRONT SPOILER, LH

main76852-12070iAE111,CE110,EE111..LUNA199808-199910

main76852-12090iAE115,CDE110,WZE110,ZZE11#..SOL199910-200109

76853ARETAINER, FRONT SPOILER, UPPER NO.1

main76853-12070iAE111,CE110,EE111..LUNA199808-199910

76871SPOILER, REAR

main76871-13901iAE115,CDE110,WZE110,ZZE11#..WG199704-200109

76872PROTECTOR, REAR SPOILER, NO.1

main76872-13020iAE115,CDE110,WZE110,ZZE11#..WG199704-200109

76891SPOILER, REAR NO.1

main76891-12110iAE115,CDE110,WZE110,ZZE11#..WG199704-200109

9015950255

main90159-50255

9015960488

main90159-60488

9015960500

main90159-60500

9017606041

main90176-06041

9018306019

main90183-06019

9018905144

main90189-05144

9018906006

main90189-06006

9046709075

main90467-09075

91621B0612

main91621-B0612

21 parts on this diagram · 2 diagrams in section
