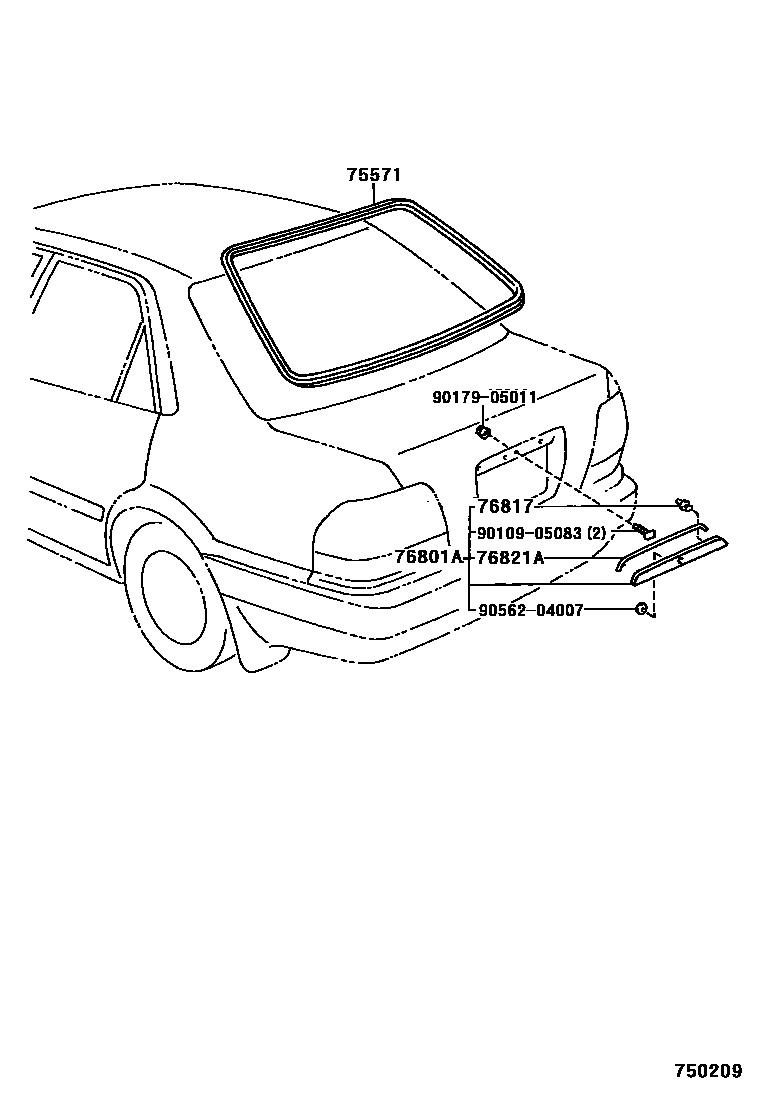

REAR MOULDING

0001 1 0002 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-12680iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

main75571-13060iAE11#,CE110,EE111..WG199704-199910

main75571-13110iAE11#,CE110,EE111..WG199704-199910

W(REAR SPOILER)

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-12610iCDE110,WZE110..SED..TERRA200001-200107

main76801-12620-A0iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SUPER WHITE 2,040

main76801-12620-B1iAE111,CE110,EE111..SED..(LUNA,TERRA)199808-199910

SILVER ME,199

main76801-12620-D1iAE111,CE110,EE111..SED..(LUNA,TERRA)199808-199910

CORAL REEF M.M.,3L6

main76801-12620-D3iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

SUPER RED II,3E5

main76801-12620-D4iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

RED M.M.,3N8

main76801-12620-G1iAE111,CE110,EE111..SED..(LUNA,TERRA)199808-199910

GREEN M.M.,6P5

main76801-12620-G2iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

GREEN MC.,6R8

main76801-12620-J1iAE111,CE110,EE111..SED..(LUNA,TERRA)199808-199910

BLUE M.M.,8L5

main76801-12620-J3iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199910-200109

DK.BLUE,8M4

main76801-12620-J4iAE111,CE110,EE111..SED..(LUNA,TERRA)199906-199910

DK.BLUE M.M.,8L3

main76801-12620-K1iAE111,CE110,EE111..SED..(LUNA,TERRA)199808-199910

VIOLET M.M.,944

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12050×2iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-12150iAE111,CE110,EE11#..SED199704-199910

main76821-13020iAE115,CDE110,WZE110,ZZE11#..WG199910-200109

9010905083

main90109-05083

9017905011

main90179-05011

9056204007

main90562-04007

7 parts on this diagram · 2 diagrams in section
