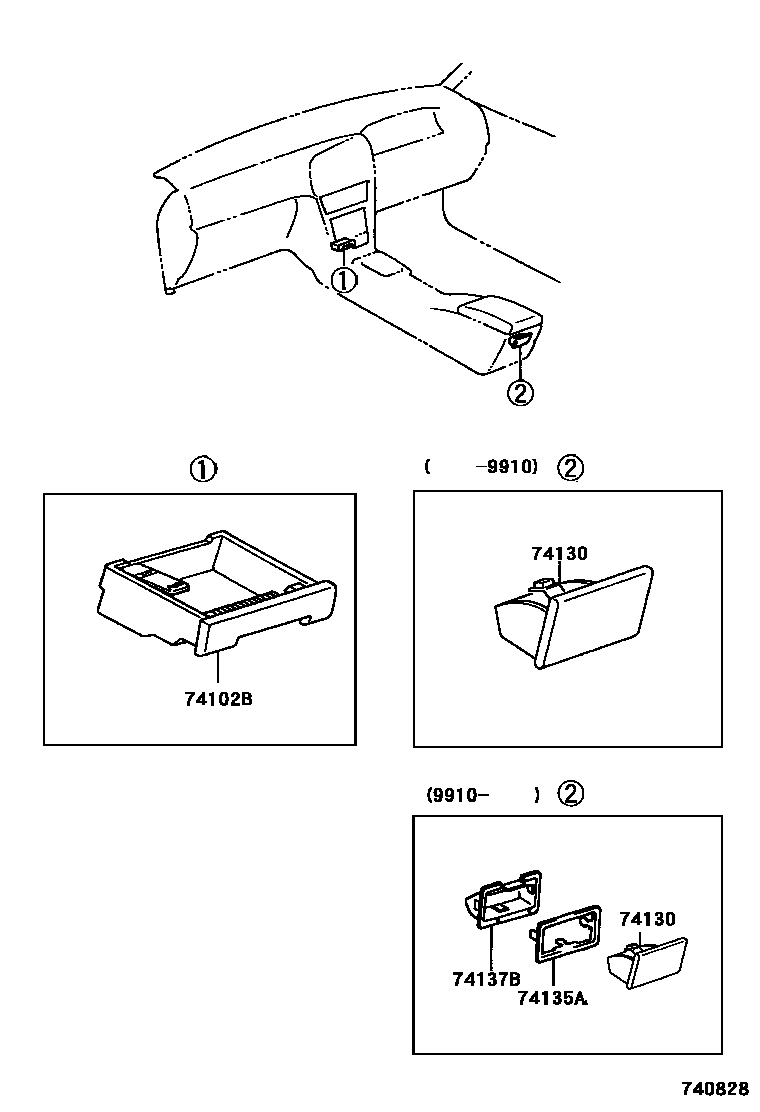

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-12250-B0iAE111..4FC..TERRA;AE111..WG..5F..TERRA;CE110,EE11#..LHD..TERRA199808-199910

SHADOW GRAY,TRIM1#

sub74102-12250

main74102-12250-B0iAE115;AE111..LHD..SED..5F..TERRA199808-199910

SHADOW GRAY,TRIM12

sub74102-12250

main74102-12250-B0iEE110199704-199808

SHADOW GRAY,TRIM0#

sub74102-12250

main74102-12250-B0iCDE110,EE110,WZE110,ZZE11#..LHD..TERRA199910-200109

SHADOW GRAY,TRIM16

sub74102-12250

main74102-12250-B0iAE115199808-199901

G6 GRADE PACKAGE,SHADOW GRAY,TRIM1#

sub74102-12250

main74102-12250-B1iEE110199901-199910

DK.CHARCOAL,TRIM0#,10

sub74102-12250

main74102-12250-B1iEE110199808-199910

DK.CHARCOAL,TRIM0#,1#

sub74102-12250

main74102-12250-B1iEE110199704-200109

DK.CHARCOAL,TRIM1#

sub74102-12250

main74102-12250-B1iZZE111..STD199910-200109

DK.CHARCOAL,TRIM11

sub74102-12250

main74102-12250-B1iAE115;EE111..STD199808-199910

DK.CHARCOAL,TRIM10

sub74102-12250

main74102-12260-B0iCE110,EE111..RHD..WG199808-199910

SHADOW GRAY,TRIM12

sub74102-12260

main74102-12260-B0iCDE110,WZE110,ZZE11#..RHD..TERRA199910-200107

SHADOW GRAY,TRIM16

sub74102-12260

main74102-12260-B0iAE111,CE110,EE111..RHD..SED199704-199808

SHADOW GRAY,TRIM0#

sub74102-12260

main74102-12260-B0iCE110,EE111..RHD..WG199808-199901

G6 GRADE PACKAGE,SHADOW GRAY,TRIM1#

sub74102-12260

main74102-12260-B1iCE110,EE111..RHD..WG199808-199910

DK.CHARCOAL,TRIM10

sub74102-12260

main74102-12260-B1iAE111,CE110,EE111..RHD..SED199808-199901

DK.CHARCOAL,TRIM0#,1#

sub74102-12260

main74102-12260-B1iAE111,CE110,EE111..RHD199704-199808

DK.CHARCOAL,TRIM1#

sub74102-12260

main74102-12260-B1iCDE110,WZE110,ZZE11#..RHD..TERRA199910-200107

DK.CHARCOAL,TRIM11

sub74102-12260

main74102-12260-B1iAE111,CE110,EE111..RHD..SED199901-199910

DK.CHARCOAL,TRIM0#,10

sub74102-12260

main74102-12270-J0iAE111..RHD..LUNA199808-199910

BLUE,TRIM1#

sub74102-12270

main74102-12300-G0iAE111,EE111..SED..LUNA199808-199910

GREEN,TRIM0#

sub74102-12300

main74102-12300-J0iAE111,CE110,EE111..LHD..LUNA199808-199910

BLUE,TRIM1#

sub74102-12300

main74102-12330-B0iAE115,CDE110,WZE110,ZZE11#..LHD..SOL199910-200109

LIGHT SILVER,TRIM11,16

sub74102-12250

main74102-12330-B0iAE111,CE110,EE111..LHD..LUNA199901-199910

LIGHT SILVER,TRIM1#

sub74102-12250

main74102-12340-B0iZZE112..RHD..SOL199910-200107

LIGHT SILVER,TRIM11,16

main74102-12340-B0iAE111..RHD..LUNA199901-199910

LIGHT SILVER,TRIM1#

74130RECEPTACLE ASSY, REAR ASH

main74109-12020-A0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub74109-20080

sub74109-12020

main74109-12020-B3iEE111..STD199808-199910

MD.CHARCOAL,TRIM10

sub74109-20080

sub74109-12020

main74109-12020-B3iEE111..STD199704-200109

MD.CHARCOAL,TRIM1#

sub74109-20080

sub74109-12020

main74109-12020-B3iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

MD.CHARCOAL,TRIM11

sub74109-20080

sub74109-12020

main74109-12020-P0iAE11#,CE110,EE11#..LUNA,TERRA199808-199910

SHADOW GRAY,TRIM12

sub74109-20080

sub74109-12020

main74109-12020-P0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

SHADOW GRAY,TRIM16

sub74109-20080

sub74109-12020

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-12040iCDE110,EE110,WZE110,ZZE11#199910-200109

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iCDE110,EE110,WZE110,ZZE11#199910-200109

4 parts on this diagram · 1 diagram in section
