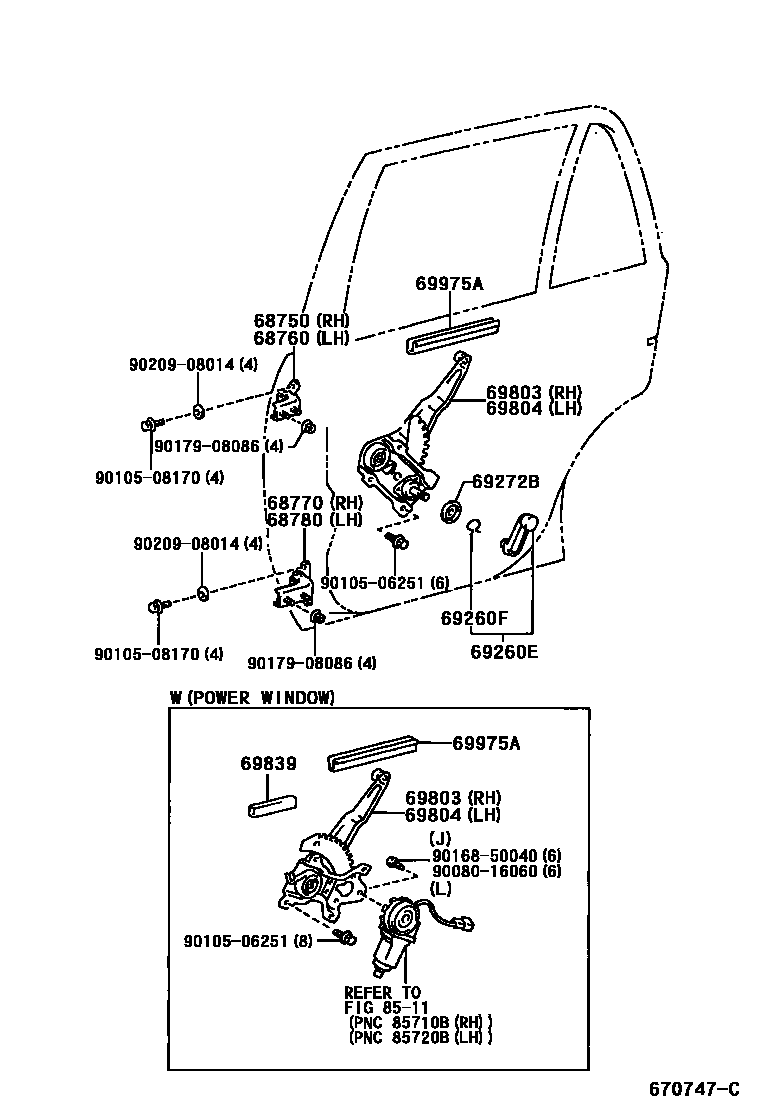

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32060iAE11#,CE110,EE11#199704-199910

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32060iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12100iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12090iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14030-A0×2iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

main69260-14030-B4×2iEE111..STD199901-199910

MD.CHARCOAL,TRIM1#

main69260-14030-P0×2iAE11#,CE110,EE11#..LUNA,TERRA199901-199910

SHADOW GRAY,TRIM12

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iAE11#,CE110,EE11#199704-199910

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iAE11#,CE110,EE11#199704-199910

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12130iAE111,CE110,EE111..LUNA199808-199910

W(POWER WINDOW)

sub69803-52040

main69830-12310iAE11#,CE110,EE11#199704-199910

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12130iAE111..LHD..SED199801-199807

SPECIAL SPEC(ISRAEL) & W(POWER WINDOW)

sub69804-52040

main69840-12310iAE11#,CE110,EE11#199704-199910

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12020×4iAE111,CE110,EE111..LUNA199808-199910

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010×2iAE11#,CE110,EE11#199704-199910

8511

9008016060

main90080-16060

9010506251

main90105-06251

9010508170

main90105-08170

9016850040

main90168-50040

9017908086

main90179-08086

9020908014

main90209-08014

18 parts on this diagram · 1 diagram in section
