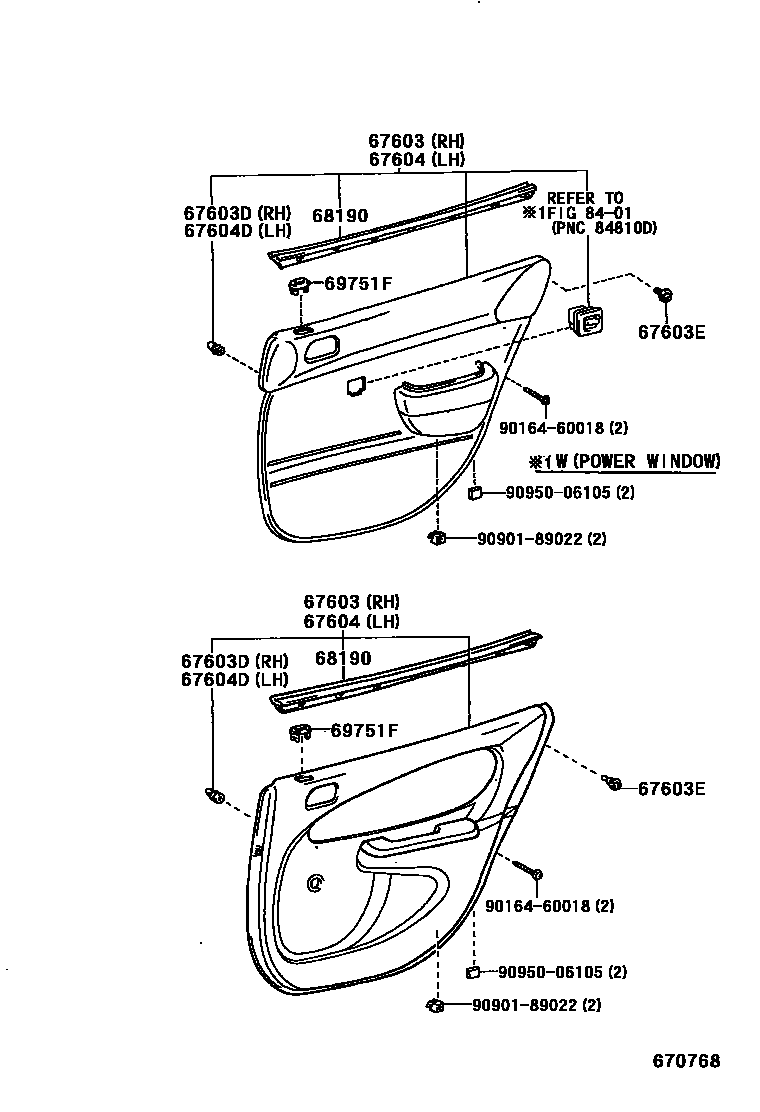

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67010-12100-B1iAE11#,CE110,EE111..WG199808-199901

SHADOW GRAY,TRIM12

main67010-12110-B1iAE111,CE110,EE111..WG..LUNA199808-199901

W(POWER WINDOW),SHADOW GRAY,TRIM12

main67010-12300-B0iCDE110,EE110,WZE110,ZZE11#..TERRA199910-200109

MIDIUM CHARCOAL,TRIM11

sub67010-12300¥27,100

main67010-12300-B1iCDE110,EE110,WZE110,ZZE11#..TERRA199910-200109

SHADOW GRAY,TRIM16

sub67010-12300¥27,100

main67010-12310-B0iAE115,CDE110,WZE110,ZZE11#..SOL199910-200109

MIDIUM CHARCOAL,TRIM11

sub67010-12310

main67010-12310-B1iAE115,CDE110,WZE110,ZZE11#..SOL199910-200109

SHADOW GRAY,TRIM16

sub67010-12310

main67630-1H610-B3iEE111..STD199704-199910

MD. CHARCOAL,TRIM1#

sub67630-1H610¥20,200

main67630-1H610-B8iZZE111..STD199910-200109

MIDIUM CHARCOAL,TRIM1#

sub67630-1H610¥20,200

main67630-1H630-A1iEE110199704-199709

IVORY,TRIM0#

main67630-1H630-B1iEE110199704-199709

MD. CHARCOAL,TRIM1#

main67630-1H640-B2iAE111..LHD..SED199801-199807

SPECIAL SPEC(ISRAEL) & W(POWER WINDOW),MD.CHARCOAL,TRIM10

sub67630-1H640¥27,000

main67630-1H710-A0iEE110199709-199808

IVORY,TRIM0#

main67630-1H710-B1iAE11#,CE110,EE111..WG199709-199808

MD.CHARCOAL.,TRIM1#

main67630-1H890-A1iAE111,CE110,EE11#..SED..TERRA199808-199910

IVORY,TRIM0#

sub67630-1H890¥27,100

main67630-1H890-B0iAE11#,CE110,EE11#..TERRA199808-199910

MD.CHARCOAL,TRIM10

sub67630-1H890¥27,100

main67630-1H890-B3iAE11#,CE110,EE11#..TERRA199901-199910

SHADOW GRAY,TRIM12

sub67630-1H890¥27,100

main67630-1K040-A1iAE111,EE111..SED..LUNA199808-199910

IVORY,TRIM0#

main67630-1K040-B0iAE111,CE110,EE111..LUNA199808-199910

MD.CHARCOAL,TRIM10

main67630-1K040-B2iAE115199904-199910

ITALY SPEC,SHADOW GRAY,TRIM12

main67630-1K040-B2iAE111,CE110,EE111..LUNA199901-199910

SHADOW GRAY,TRIM12

main67630-1K050-A1iAE111,EE111..SED..LUNA199808-199910

W(POWER WINDOW),IVORY,TRIM0#

main67630-1K050-B0iAE111,CE110,EE111..LUNA199808-199910

W(POWER WINDOW),MD.CHARCOAL,TRIM10

main67630-1K050-B2iAE111,CE110,EE111..LUNA199901-199910

W(POWER WINDOW),SHADOW GRAY,TRIM12

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050iEE110¥160199704-200109

RED

main67771-16170iEE111..STD¥160199704-200109

SABLE

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-06133-A0iEE110199704-199910

IVORY,TRIM0#

sub90467-06133¥230

main90467-06133-B0iAE11#,CE110,EE111..WG199808-199910

SHADOW GRAY,TRIM12

sub90467-06133¥230

main90467-06133-B0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

SHADOW GRAY,TRIM16

sub90467-06133¥230

main90467-06133-B4iEE110199704-199901

MD.CHARCOAL,TRIM1#

sub90467-06133¥230

main90467-06133-B4iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

MD.CHARCOAL,TRIM11

sub90467-06133¥230

main90467-06133-B4iEE110199808-199910

MD.CHARCOAL,TRIM10

sub90467-06133¥230

main90467-06133-C0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199704-199901

BLACK,TRIM0#,1#

sub90467-06133¥230

main90467-06133-C0iAE111,CE110,EE11#..SED..(LUNA,TERRA)199901-199910

BLACK,TRIM0#,10,12

sub90467-06133¥230

main90467-06133-C0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

BLACK,TRIM11,16

sub90467-06133¥230

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67020-12100-B1iAE11#,CE110,EE111..WG199808-199901

SHADOW GRAY,TRIM12

main67020-12110-B1iAE111,CE110,EE111..WG..LUNA199808-199901

W(POWER WINDOW),SHADOW GRAY,TRIM12

main67020-12300-B0iCDE110,EE110,WZE110,ZZE11#..TERRA199910-200109

MIDIUM CHARCOAL,TRIM11

sub67020-12300¥27,100

main67020-12300-B1iCDE110,EE110,WZE110,ZZE11#..TERRA199910-200109

SHADOW GRAY,TRIM16

sub67020-12300¥27,100

main67020-12310-B0iAE115,CDE110,WZE110,ZZE11#..SOL199910-200109

MIDIUM CHARCOAL,TRIM11

sub67020-12310

main67020-12310-B1iAE115,CDE110,WZE110,ZZE11#..SOL199910-200109

SHADOW GRAY,TRIM16

sub67020-12310

main67640-1H610-B3iEE111..STD199704-199910

MD. CHARCOAL,TRIM1#

sub67640-1H610¥20,200

main67640-1H610-B8iZZE111..STD199910-200109

MIDIUM CHARCOAL,TRIM1#

sub67640-1H610¥20,200

main67640-1H630-A1iEE110199704-199709

IVORY,TRIM0#

main67640-1H630-B1iAE11#,CE110,EE11#..TERRA199704-199709

MD. CHARCOAL,TRIM1#

main67640-1H640-B2iAE111..LHD..SED199801-199807

SPECIAL SPEC(ISRAEL) & W(POWER WINDOW),MD.CHARCOAL,TRIM10

sub67640-1H640¥27,100

main67640-1H710-A0iEE110199709-199808

IVORY,TRIM0#

main67640-1H710-B1iAE11#,CE110,EE11#..TERRA199709-199808

MD.CHARCOAL.,TRIM1#

main67640-1H880-A1iEE110199808-199910

IVORY,TRIM0#

sub67640-1H880¥27,100

main67640-1H880-B0iAE11#,CE110,EE11#..TERRA199808-199910

MD.CHARCOAL,TRIM10

sub67640-1H880¥27,100

main67640-1H880-B3iEE110199901-199910

SHADOW GRAY,TRIM12

sub67640-1H880¥27,100

main67640-1K030-A1iAE111,EE111..SED..LUNA199808-199910

IVORY,TRIM0#

main67640-1K030-B0iAE111,CE110,EE111..LUNA199808-199910

MD.CHARCOAL,TRIM10

main67640-1K030-B2iAE115199904-199910

ITALY SPEC,SHADOW GRAY,TRIM12

main67640-1K030-B2iAE111,CE110,EE111..LUNA199901-199910

SHADOW GRAY,TRIM12

main67640-1K040-A1iAE111,EE111..SED..LUNA199808-199910

W(POWER WINDOW),IVORY,TRIM0#

main67640-1K040-B0iAE111,CE110,EE111..LUNA199808-199910

W(POWER WINDOW),MD.CHARCOAL,TRIM10

main67640-1K040-B2iAE111,CE110,EE111..LUNA199901-199910

W(POWER WINDOW),SHADOW GRAY,TRIM12

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050iAE11#,CE110,EE111..LHD..WG¥160199704-200109

RED

main67771-16170iZZE111..STD¥160199704-200109

SABLE

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-12220iEE111..STD¥2,070199704-200109

RH

main68173-12250iAE115..SOL;CDE110,EE110,WZE110,ZZE11#..SOL,TERRA¥3,090199704-200109

RH

main68174-12080iZZE111..STD¥2,070199704-200109

LH

main68174-12110iAE11#,CE110,EE11#..LUNA,TERRA¥3,090199704-200109

LH

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-12070-A0iEE110199704-199910

IVORY,TRIM0#

main69751-12070-B0iAE11#,CE110,EE111..WG199808-199910

SHADOW GRAY,TRIM12

main69751-12070-B0iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

SHADOW GRAY,TRIM16

main69751-12070-B1iZZE111..STD199704-200109

MD.CHARCOAL,TRIM1#

main69751-12070-B1iAE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA199910-200109

MD.CHARCOAL,TRIM11

main69751-12070-B1iEE110199808-199910

MD.CHARCOAL,TRIM10

8401

9016460018

main90164-60018¥70

9090189022

main90901-89022¥80

9095006105

main90950-06105¥110

11 parts on this diagram · 2 diagrams in section
