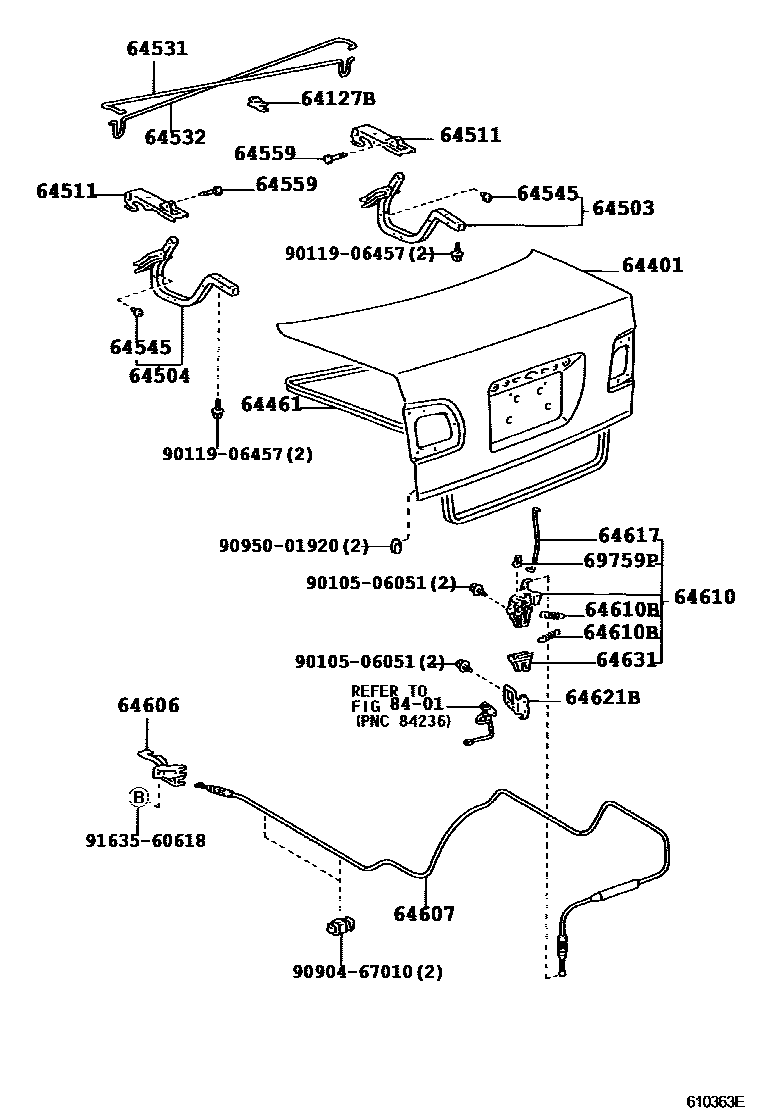

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64545CUSHION, LUGGAGE DOOR HINGE
64559PIN, LUGGAGE DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610BSPRING, TENSION(FOR LOCK)
WD=0.55,CW=17.25
WD=0.55,CW=17.5
64617LINK, LUGGAGE COMPARTMENT DOOR LOCK
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64631PROTECTOR, LUGGAGE DOOR LOCK
69759PSNAP, DOOR LOCK CONTROL LINK
8401
9010506051
main90105-06051
9011906457
main90119-06457
9090467010
main90904-67010
9095001920
main90950-01920
9163560618
main91635-60618
24 parts on this diagram · 1 diagram in section
