FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57509-12020iCE110199704-199910

sub57509-12030

main57509-12030iCDE110,EE110,WZE110,ZZE11#199910-200109

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12040iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-12010iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12121iCDE110,EE110,WZE110,ZZE11#199704-200109

main58027-12132iAE115199704-200107

58111PAN, FRONT FLOOR

main58111-12262iAE111,CE110,EE11#199704-200109

main58111-12272iAE115199704-199802

sub58111-12273

main58111-12273iAE115199802-200107

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-12010iCDE110,EE110,WZE110,ZZE11#199910-200109

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12060iCDE110,EE110,WZE110,ZZE11#199704-200109

main58013-12070iAE115199704-200107

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

58191FOOTREST, FRONT FLOOR

main58191-12110iCDE110,WZE110,ZZE11#..RHD199704-200107

main58192-12060iAE11#,CE110,EE11#..LHD199704-200109

58198ACLIP, FOOTREST, NO.1

main58198-12030iAE111,CE110,EE111..RHD199704-200107

main58198-12040iAE115..SOL;CDE110,EE110,WZE110,ZZE11#..LHD199704-200109

58199ACLIP, FOOTREST, NO.2

main58199-12020iCDE110,WZE110,ZZE11#..RHD199704-200107

58208PAN, CENTER FLOOR

main58211-12911iAE111,CE110,EE11#..SED199704-200109

main58211-13906iAE115199704-200107

main58211-13907iCDE110,WZE110,ZZE11#..WG199704-200109

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-12041iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-12040iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-12040iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A460iCDE110,EE110,WZE110,ZZE11#..SED..(SOL,TERRA)199704-200109

W(SPLIT TYPE REAR SEAT)

main58307-1A470iCDE110,EE110,WZE110,ZZE11#..SED..(STD,TERRA)199704-200109

58311PAN, REAR FLOOR

main58311-12210iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

58313PANEL, REAR FLOOR SIDE, RH

main58313-12904iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iCDE110,EE110,WZE110,ZZE11#..SED199704-200109

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12100iAE11#,CE110,EE11#199704-200109

9011506166

main90115-06166

9011506219

main90115-06219

9011506314

main90115-06314

9011906741

main90119-06741

9029703007

main90297-03007

9033330002

main90333-30002

9095001826

main90950-01826

9095001827

main90950-01827

9095001841

main90950-01841

9095001866

main90950-01866

9095001867

main90950-01867

9095006108

main90950-06108

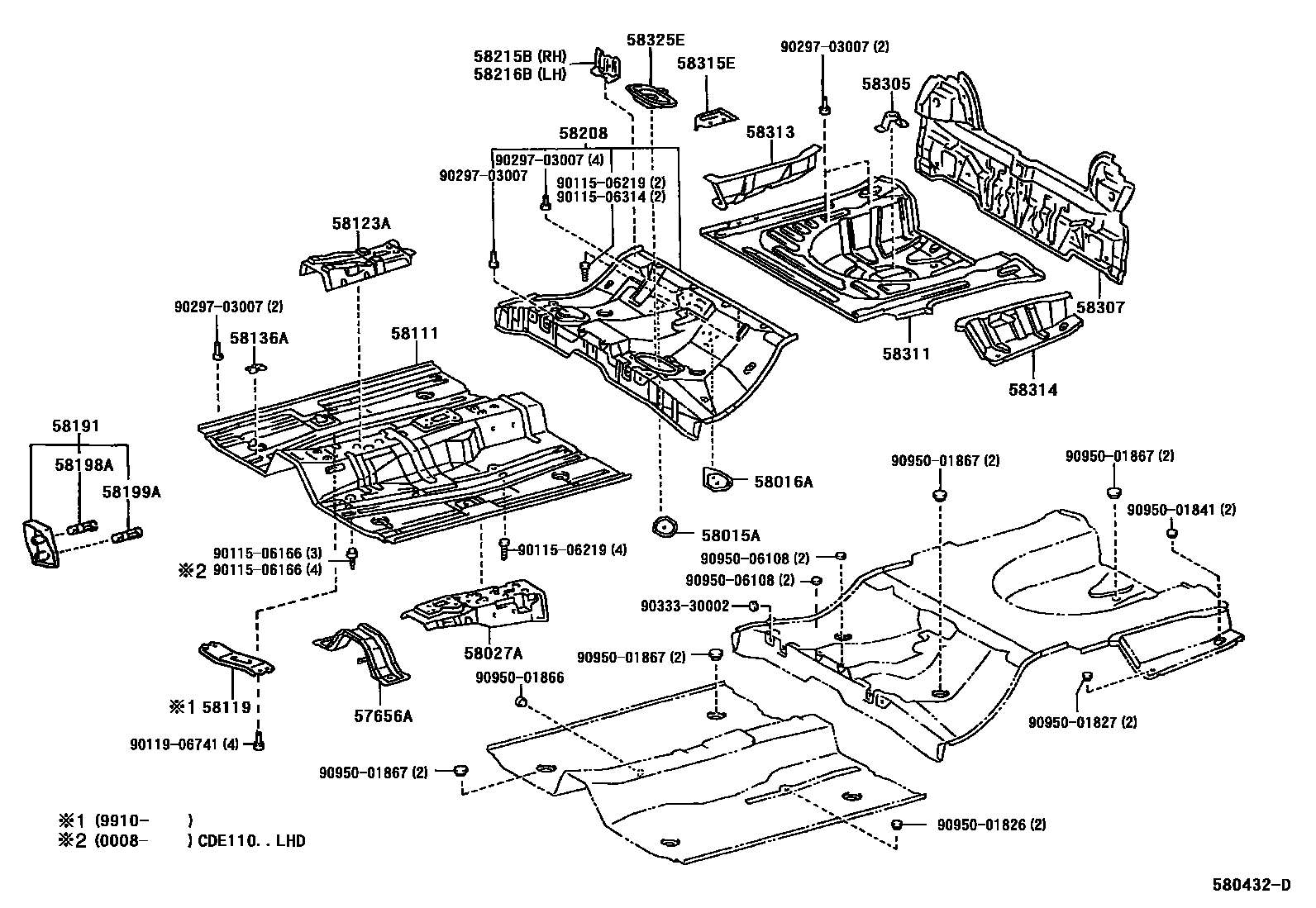

33 parts on this diagram · 2 diagrams in section
