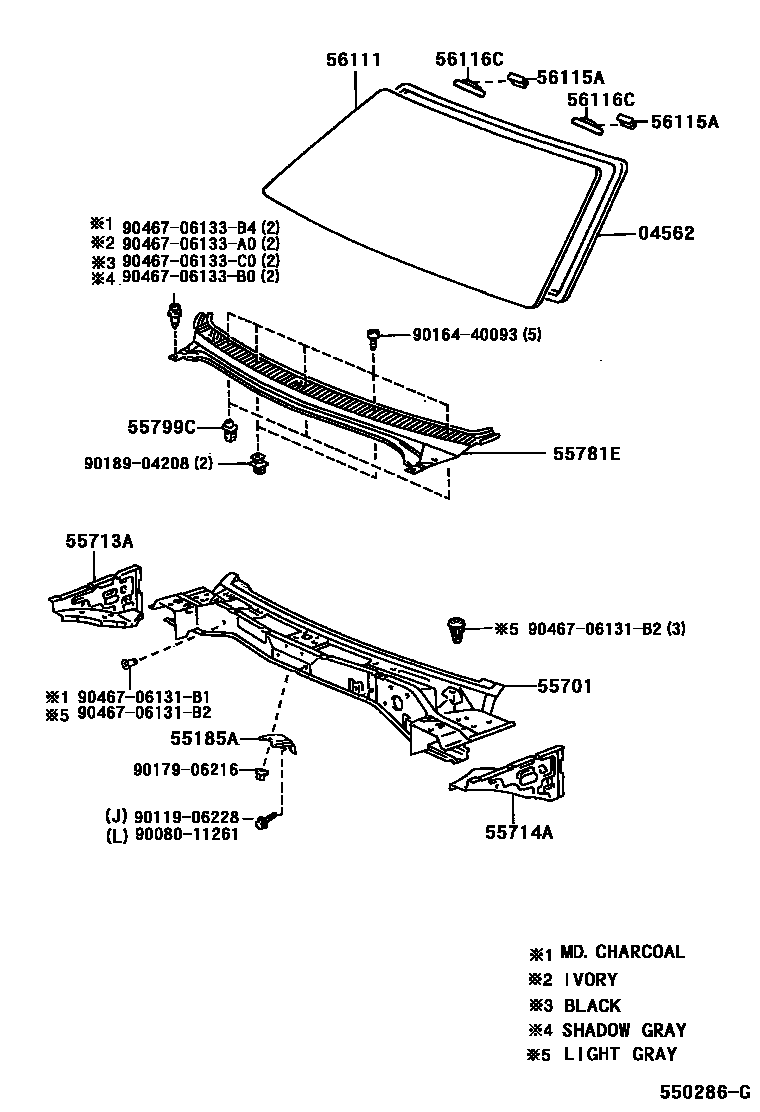

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

55185ABRACE, DASH PANEL TO COWL

main55185-12010iAE11#,CE110,EE11#..LHD199704-200109

55701PANEL SUB-ASSY, COWL

main55700-1A111iCE110..RHD199907-199910

main55700-1A200iCE110..LHD199704-199907

sub55700-1A201

main55700-1A201iCE110..LHD199907-199910

main55700-1A240iEE11#..LHD199704-199907

sub55700-1A241

main55700-1A241iEE11#..LHD199907-200107

main55700-1A250iAE111..LHD199704-199907

sub55700-1A251

main55700-1A251iAE111..LHD199907-199910

sub55700-1A291

main55700-1A260iAE115199704-199907

sub55700-1A261

main55700-1A261iAE115199907-200107

main55700-1A321iZZE11#..RHD199910-200107

sub55700-1A341

main55700-1A351iWZE110..RHD200001-200107

main55700-1A361iZZE11#..LHD199910-200109

sub55700-1A201

main55700-1A381iWZE110..LHD;CDE110..SED..SOL200001-200109

main55700-1A420iCDE110..RHD200008-200107

sub55700-1A351

main55700-1A430iCDE110..SED..SOL200008-200109

COLD SPEC

main55700-1A440iCDE110..LHD..WG200008-200109

main55700-1A450iCDE110..LHD..WG200008-200109

COLD SPEC

main55700-1A900iAE111,EE111..RHD199704-199909

sub55700-1A902

main55700-1A901iCE110..RHD199704-199907

sub55700-1A111

main55700-1A902iAE111,EE111..RHD199909-199910

55713APANEL, COWL TOP SIDE, RH

main55713-12081iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

55714APANEL, COWL TOP SIDE, LH

main55714-12081iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-12160iCDE110,WZE110,ZZE11#..RHD199704-200107

main55708-12200iAE11#,CE110,EE11#..LHD199704-200109

sub55708-12210

main55708-12210iAE11#,CE110,EE11#..LHD199704-200109

COLD SPEC

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

56111GLASS, WINDSHIELD

main56111-1A690iAE11#,CE110,EE11#199704-200109

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12050iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAE11#,CE110,EE11#199704-200109

9008011261

main90080-11261

9011906228

main90119-06228

9016440093

main90164-40093

9017906216

main90179-06216

9018904208

main90189-04208

9046706131B1

main90467-06131B1

9046706131B2

main90467-06131B2

9046706133A0

main90467-06133A0

9046706133B0

main90467-06133B0

9046706133B4

main90467-06133B4

9046706133C0

main90467-06133C0

21 parts on this diagram · 1 diagram in section
