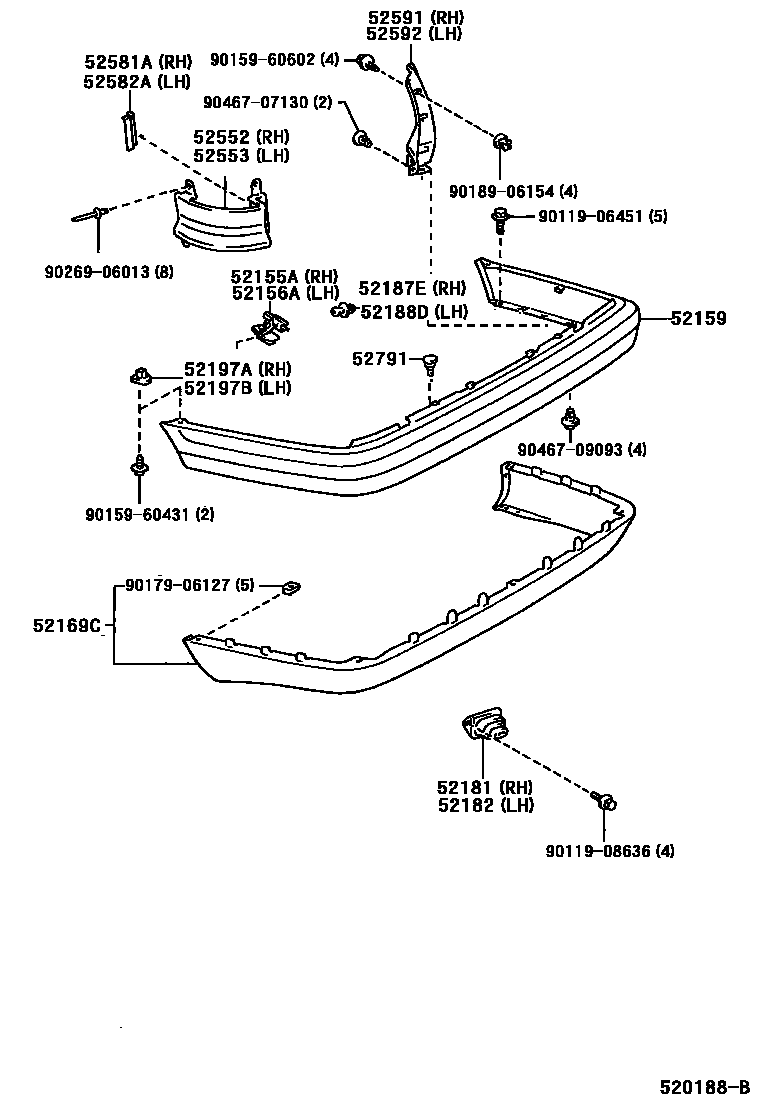

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
52169CCOVER, REAR BUMPER, LOWER
52181ARM, REAR BUMPER, RH
52182ARM, REAR BUMPER, LH
52187EGUIDE, REAR BUMPER LOCATION, RH
52188DGUIDE, REAR BUMPER LOCATION, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52552FILLER, REAR BUMPER, RH
52553FILLER, REAR BUMPER, LH
52581APROTECTOR, REAR BUMPER FILLER
52582APROTECTOR, REAR BUMPER FILLER, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52791BOLT, BUMPER MOULDING SET, NO.1
9011906451
main90119-06451
9011908636
main90119-08636
9015960431
main90159-60431
9015960602
main90159-60602
9017906127
main90179-06127
9018906154
main90189-06154
9026906013
main90269-06013
9046707130
main90467-07130
9046709093
main90467-09093
26 parts on this diagram · 2 diagrams in section
