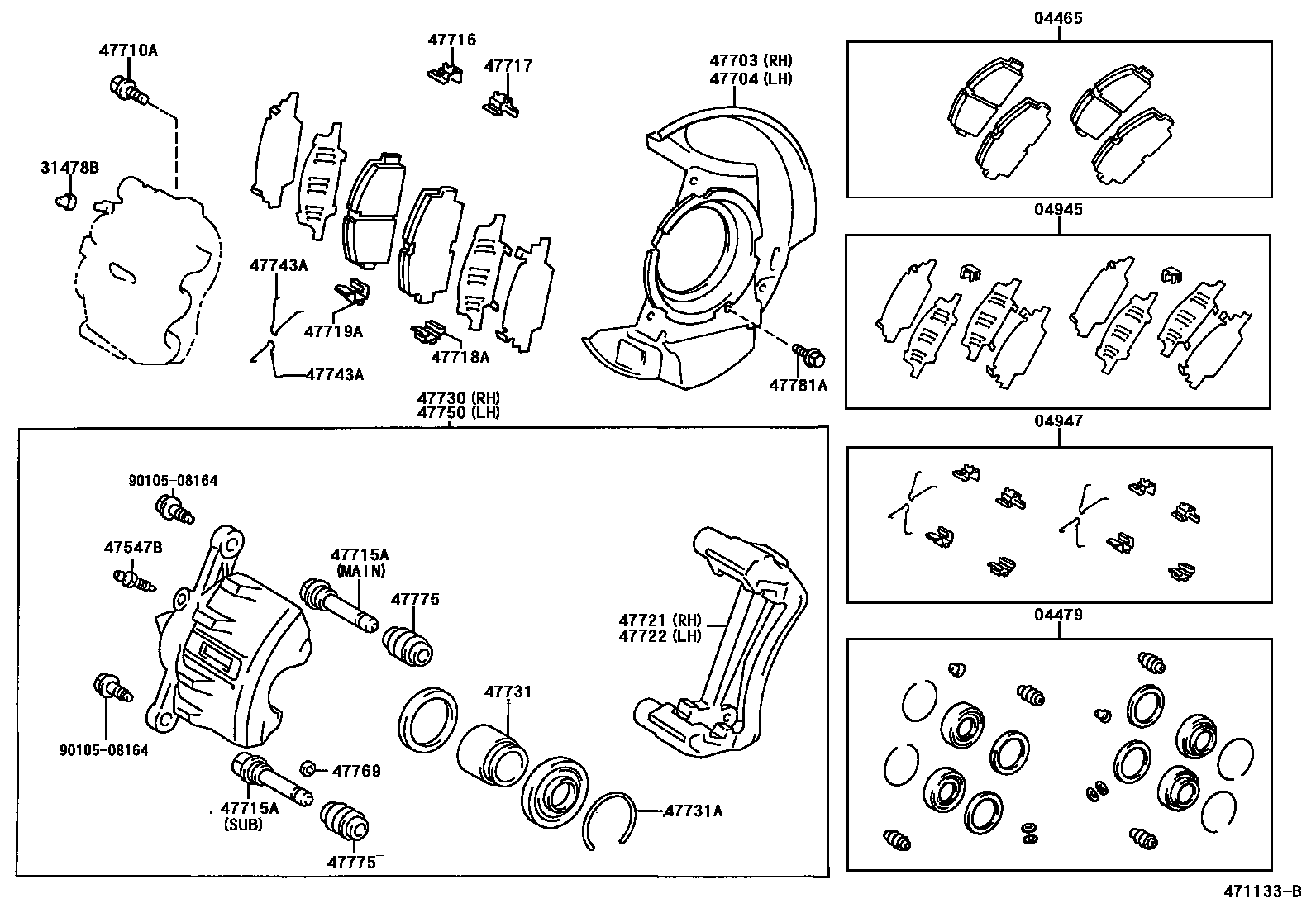

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1RUSSIA SPEC OR ROUGH ROAD PAC

04465PAD KIT, DISC BRAKE, FRONT

main04465-12240iZZE112..LHD..TERRA;ZZE111..LHD..SED..TERRA¥10,200199711-200008

MARK SUMITOMO PS522H,ROUGH ROAD PACKAGE

main04465-12240iEE110,WZE110..LHD..SED¥10,200199704-200107

MARK SUMITOMO PS522H,RUSSIA SPEC

main04465-12540iAE11#,CE110,EE111¥11,100199704-200109

MARK NBK PN540H

sub04465-12593¥11,100

main04465-12550iZZE112..SED..4FC..SOL¥10,200200006-200008

MARK AK PA533,CHINA SPEC

main04465-12550iZZE112..LHD..TERRA;ZZE112..SED..4FC..SOL;WZE110,ZZE111..LHD..SED..TERRA¥10,200200008-200109

MARK AK PA533,ROUGH ROAD PACKAGE

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE111..LHD..TERRA;EE111..LHD..SED..TERRA¥3,010199711-200109

ROUGH ROAD PACKAGE

main04479-12091iEE110,WZE110..LHD..SED¥3,010199704-200107

RUSSIA SPEC

main04479-12091iZZE112..SED..4FC..SOL¥3,010200006-200109

CHINA SPEC

main04479-12180iAE11#,CE110,EE111¥3,130199704-200109

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12060iZZE112..SED..4FC..SOL¥1,600200006-200109

CHINA SPEC

main04945-12060iCE110,EE110..LHD..SED¥1,600199709-200107

RUSSIA SPEC

main04945-12060iAE111..LHD..TERRA;EE111..LHD..SED..TERRA¥1,600199711-200109

ROUGH ROAD PACKAGE

main04945-20090iAE11#,CE110,EE111¥1,020199704-200109

main04945-32060iCE110,EE110..LHD..SED¥2,030199704-199709

RUSSIA SPEC

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20060iEE110,WZE110..LHD..SED¥2,900199704-200107

RUSSIA SPEC

main04947-20060iAE111..LHD..TERRA;EE111..LHD..SED..TERRA¥2,900199711-200109

ROUGH ROAD PACKAGE

main04947-20060iZZE112..SED..4FC..SOL¥2,900200006-200109

CHINA SPEC

main04947-33130iAE11#,CE110,EE111¥2,760199704-200109

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥160199704-200109

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥200199704-200109

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12160iZZE112..LHD..TERRA;ZZE111..LHD..SED..TERRA¥1,710199711-200109

ROUGH ROAD PACKAGE

main47781-12160iEE110,WZE110..LHD..SED¥1,710199704-200107

RUSSIA SPEC

main47781-12170iAE11#,CE110,EE111¥1,710199704-200109

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12160iZZE112..LHD..TERRA;ZZE111..LHD..SED..TERRA¥1,710199711-200109

ROUGH ROAD PACKAGE

main47782-12160iEE110,WZE110..LHD..SED¥1,710199704-200107

RUSSIA SPEC

main47782-12170iAE115,CDE110,WZE110,ZZE11#¥1,710199704-200109

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAE11#,CE110,EE11#¥230199704-200109

*12-1.25PX25.8-19.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iAE115,CDE110,WZE110,ZZE11#¥620200103-200109

SUB

main47715-22080iAE115,CDE110,WZE110,ZZE11#¥820200103-200109

MAIN

main47715-50010iAE115,CDE110,WZE110,ZZE11#¥460199704-200103

SUB

main47715-50030iAE115,CDE110,WZE110,ZZE11#¥510199704-200103

MAIN

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140iZZE112..SED..4FC..SOL¥390200006-200109

CHINA SPEC

main47716-20140iEE110,WZE110..LHD..SED¥390199704-200107

RUSSIA SPEC

main47716-20140iZZE112..LHD..TERRA;ZZE111..LHD..SED..TERRA¥390199711-200109

ROUGH ROAD PACKAGE

main47716-33050iAE115,CDE110,WZE110,ZZE11#¥300199704-200109

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33060iAE115,CDE110,WZE110,ZZE11#¥300199704-200109

main47717-20140iZZE112..SED..4FC..SOL¥390200006-200109

CHINA SPEC

main47717-20140iCE110,EE110..LHD..SED¥390199704-200107

RUSSIA SPEC

main47717-20140iAE111..LHD..TERRA;EE111..LHD..SED..TERRA¥390199711-200109

ROUGH ROAD PACKAGE

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-20150iAE11#,CE110,EE111¥300199704-200109

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-20160iAE11#,CE110,EE111¥300199704-200109

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iEE110¥12,900199704-200107

main47721-12160iCE110..LHD..SED¥3,410199704-200107

RUSSIA SPEC

main47721-12160iZZE112..SED..4FC..SOL¥3,410200006-200109

CHINA SPEC

main47721-12160iAE111..LHD..TERRA;EE111..LHD..SED..TERRA¥3,410199711-200109

ROUGH ROAD PACKAGE

main47721-12211iAE115,CDE110,WZE110,ZZE11#¥6,600199704-200109

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iEE110¥12,900199704-200107

main47721-12160iZZE112..LHD..TERRA;ZZE111..LHD..SED..TERRA¥3,410199711-200109

ROUGH ROAD PACKAGE

main47721-12160iZZE112..SED..4FC..SOL¥3,410200006-200109

CHINA SPEC

main47721-12160iCE110..LHD..SED¥3,410199704-200107

RUSSIA SPEC

main47722-12031iAE115,CDE110,WZE110,ZZE11#¥10,500199704-200109

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12310iEE110¥42,100199704-200107

main47730-12400iCE110..LHD..SED¥23,700199704-200107

RUSSIA SPEC

main47730-12400iAE111..LHD..TERRA;EE111..LHD..SED..TERRA¥23,700199711-200109

ROUGH ROAD PACKAGE

main47730-12400iZZE112..SED..4FC..SOL¥23,700200006-200109

CHINA SPEC

main47730-12451iAE11#,CE110,EE111¥28,000199704-200109

47731PISTON, FRONT DISC BRAKE

main47731-12150iZZE112..SED..4FC..SOL¥4,950200006-200109

CHINA SPEC

main47731-12150iEE110,WZE110..LHD..SED¥4,950199704-200107

RUSSIA SPEC

main47731-12150iZZE112..LHD..TERRA;ZZE111..LHD..SED..TERRA¥4,950199711-200109

ROUGH ROAD PACKAGE

main47731-12180iAE11#,CE110,EE111¥2,520199704-200109

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iZZE112..LHD..TERRA;ZZE111..LHD..SED..TERRA¥120199711-200109

ROUGH ROAD PACKAGE

main90522-61001iZZE112..SED..4FC..SOL¥120200006-200109

CHINA SPEC

main90522-61001iCE110,EE110..LHD..SED¥120199704-200107

RUSSIA SPEC

main90522-64003iAE11#,CE110,EE111¥240199704-200109

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12090iAE115,CDE110,WZE110,ZZE11#¥90199704-200109

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12310iEE110¥42,100199704-200107

main47750-12400iCE110..LHD..SED¥23,700199704-200107

RUSSIA SPEC

main47750-12400iZZE112..LHD..TERRA;ZZE111..LHD..SED..TERRA¥23,700199711-200109

ROUGH ROAD PACKAGE

main47750-12400iZZE112..SED..4FC..SOL¥23,700200006-200109

CHINA SPEC

main47750-12451iAE11#,CE110,EE111¥44,400199704-200109

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAE111..LHD..TERRA;EE111..LHD..SED..TERRA¥590199711-200109

ROUGH ROAD PACKAGE

main47769-12030iEE110,WZE110..LHD..SED¥590199704-200107

RUSSIA SPEC

main47769-12030iZZE112..SED..4FC..SOL¥590200006-200109

CHINA SPEC

main47769-50010iAE115,CDE110,WZE110,ZZE11#¥50199704-200109

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080iAE11#,CE110,EE111¥430199704-200109

sub47775-30070¥840

main47775-32010iZZE112..SED..4FC..SOL¥510200006-200008

CHINA SPEC

main47775-32010iEE110¥510199704-200107

RUSSIA SPEC

main47775-32010iZZE112..LHD..TERRA;EE110,ZZE111..LHD..SED..TERRA¥510199711-200109

ROUGH ROAD PACKAGE

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAE115..SOL;CDE110,EE110,WZE110,ZZE11#¥120199704-200109

9010508164

main90105-08164¥90

25 parts on this diagram · 3 diagrams in section
