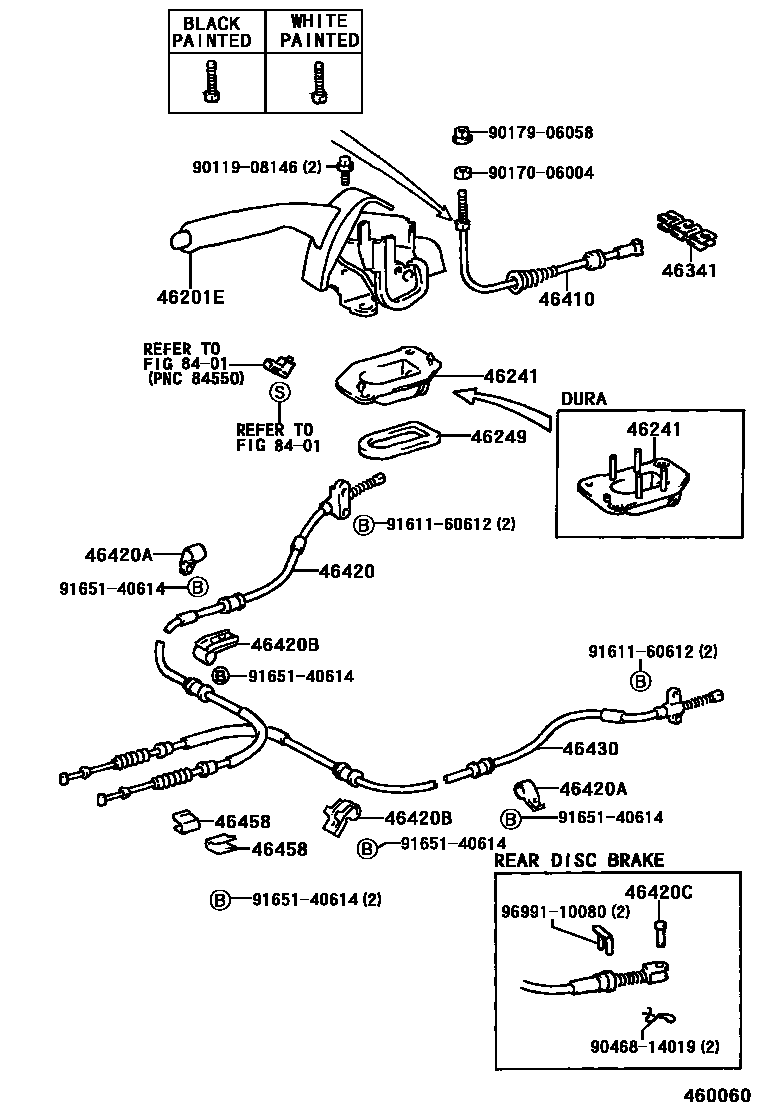

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12180-B3iEE111..STD199704-200109

DK.CHARCOAL,TRIM1#

sub46201-12180

main46201-12190-B0iAE111,CE110,EE11#..SED..TERRA199704-199808

W(HEADLAMP CLEANER),SHADOW GRAY,TRIM0#

sub46201-12190

main46201-12190-B0iEE110199808-199910

W(HEADLAMP CLEANER),SHADOW GRAY,TRIM12

sub46201-12190

main46201-12190-B0iEE110199808-199910

SHADOW GRAY,TRIM12

sub46201-12190

main46201-12190-B0iWZE110200001-200107

SHADOW GRAY,TRIM16

sub46201-12190

main46201-12190-B0iAE115,EE110,ZZE11#..SOL,TERRA199910-200109

W(HEADLAMP CLEANER),SHADOW GRAY,TRIM16

sub46201-12190

main46201-12190-B3iAE111,CE110,EE11#..SED..TERRA199901-199910

W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM0#,10

sub46201-12190

main46201-12190-B3iAE11#,CE110,EE11#..TERRA199704-200109

W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM1#

sub46201-12190

main46201-12190-B3iEE110199808-199901

W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM0#,1#

sub46201-12190

main46201-12190-B3iEE110199808-199901

DK.CHARCOAL,TRIM0#,1#

sub46201-12190

main46201-12190-B3iAE11#,CE110,EE111..WG199808-199910

W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM10

sub46201-12190

main46201-12190-B3iEE110199901-199910

DK.CHARCOAL,TRIM0#,10

sub46201-12190

main46201-12190-B3iWZE110200001-200107

DK.CHARCOAL,TRIM11

sub46201-12190

main46201-12190-B3iZZE111..STD199910-200109

W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM11

sub46201-12190

main46201-12200-B0iAE111,CE110,EE111..WG199808-199910

W(14 INCHES DISC WHEEL),SHADOW GRAY,TRIM12

sub46201-12200

main46201-12200-B0iCDE110200008-200109

SHADOW GRAY,TRIM16

sub46201-12200

main46201-12200-B0iWZE110,ZZE11#..SOL,TERRA199910-200109

W(14 INCHES DISC WHEEL),SHADOW GRAY,TRIM16

sub46201-12200

main46201-12200-B1iEE111..STD199808-199910

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM10

sub46201-12200

main46201-12200-B1iAE111,CE110,EE111..WG199808-200109

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM1#

sub46201-12200

main46201-12200-B1iZZE111..STD199910-200109

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM11

sub46201-12200

main46201-12200-B1iCDE110200008-200109

DK.CHARCOAL,TRIM11

sub46201-12200

main46201-12200-B1iAE111,CE110,EE111..SED..(LUNA,TERRA)199901-199910

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM0#,10

sub46201-12200

main46201-12200-B1iAE111,CE110,EE111..SED..(LUNA,TERRA)199808-199901

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM0#,1#

sub46201-12200

46241BOOT, PARKING BRAKE LEVER

main46241-12110iAE11#,CE110,EE11#199704-200109

46249SHIELD, PARKING BRAKE HOLE

main46249-12010iAE11#,CE110,EE11#199704-200109

46341EQUALIZER, PARKING BRAKE

main46341-12020iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12250iAE115..SOL;CDE110,EE110,WZE110,ZZE11#199704-200109

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12390iAE111,CE110,EE111199808-199910

W(REAR DISC BRAKE)

main46420-12390iWZE110,ZZE11#199910-200109

W(14 INCHES DISC BRAKE)

main46420-12390iCDE110200008-200109

main46420-12400iAE111,CE110,EE11#199704-200109

main46420-12480iAE115199704-200107

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01746iAE11#,CE110,EE11#199704-200109

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01744iCDE110,EE110,WZE110,ZZE11#199704-200109

LH

main90949-01745iAE115199704-199910

RH

main90949-01747iAE111,CE110,EE11#199704-200109

RH

main90949-01748iAE115199704-200107

LH

main90949-01C20iAE115199910-200107

RH

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040iAE111,CE110,EE111199808-200109

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12290iAE111,CE110,EE111199808-199910

W(REAR DISC BRAKE)

main46430-12290iCDE110200008-200109

main46430-12290iWZE110,ZZE11#199910-200109

W(14 INCHES DISC BRAKE)

main46430-12300iEE110,WZE110,ZZE11#199704-200109

main46430-12380iAE115199704-200107

46458RETAINER, CABLE

main46458-50010iAE11#,CE110,EE11#199704-200109

8401

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046814019

main90468-14019

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

19 parts on this diagram · 1 diagram in section
