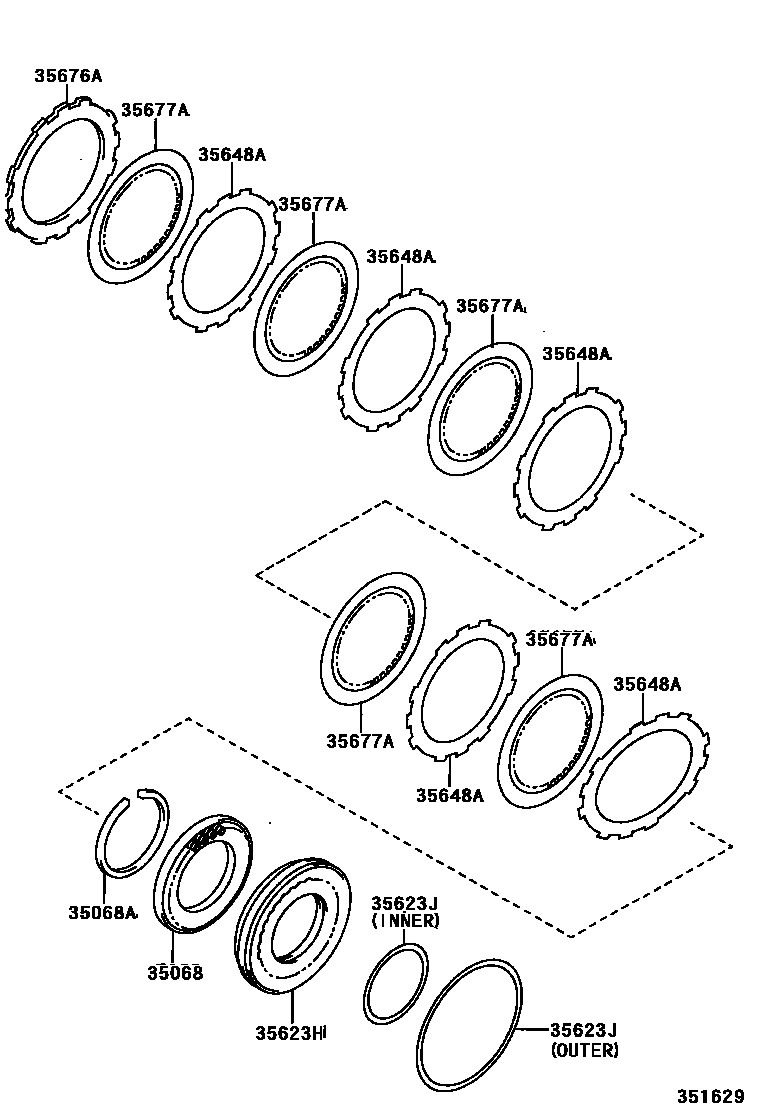

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-12010iZZE112..4FC199910-200109

main35068-20010iAE111,EE111..ATM199704-199910

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAE111,EE111..ATM199704-200109

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12050iAE111..4FC199704-199910

main35623-20020iZZE112..4FC199910-200109

main35623-32050iEE111..3FC199704-199910

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAE111,EE111..ATM199704-200008

INNER

main90301-94004iZZE112..4FC200008-200109

INNER

main90301-99022iZZE112..4FC199704-200008

OUTER

main90301-99131iZZE112..4FC200008-200109

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-12020iZZE112..4FC199910-200109

main35648-32020iAE111,EE111..ATM199704-199910

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-12030iZZE112..4FC199704-200109

T=3.5

main35676-32010iEE111..3FC199704-199810

T=3.5

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12060iAE111..4FC199704-199910

main35677-20070iZZE112..4FC199910-200109

main35677-32060iEE111..3FC199704-199910

7 parts on this diagram · 1 diagram in section
