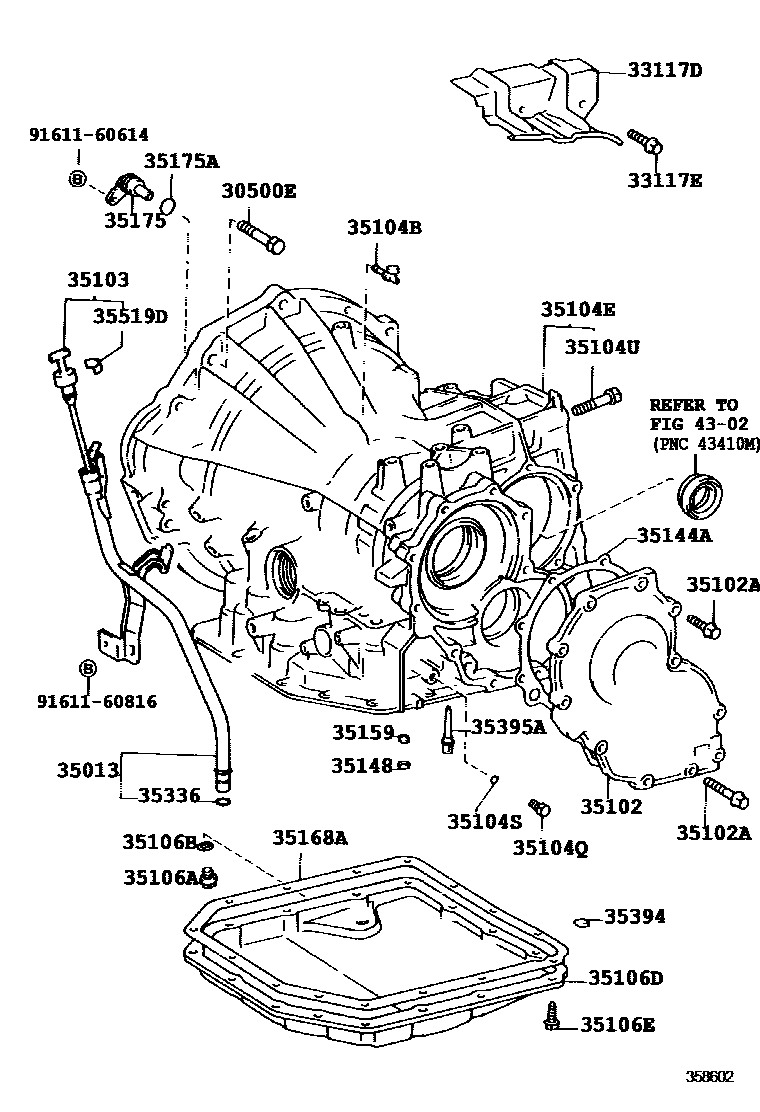

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A132L 0002 1A240L 0003 1A245E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAE111..4FC199704-199910

*10-1.25PX43-26

main90105-10097iEE111..3FC199704-199910

*10-1.25PX60-22

main90119-12168iAE111,EE111..ATM199704-200109

*12-1.25PX55-30

main91619-61245iAE111,EE111..ATM199704-199910

*12-1.25PX45-30

main91642-81055iZZE112..4FC199910-200109

*10-1.25PX55-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAE111..4FC199704-199910

main33117-12040iEE111..3FC199704-199910

main33117-12050iZZE112..4FC199910-200109

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iZZE112..4FC199704-200109

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12380iEE111..3FC199704-199910

main35013-12391iAE111..4FC199704-199910

main35013-12450iZZE112..4FC199910-200109

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iEE111..3FC199704-199910

main35102-20050iAE111..4FC199704-199910

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198iZZE112..4FC199910-200109

*6-1.00PX32-32

main90105-08050iEE111..3FC199704-199910

*8-1.25PX28-28

main90105-08056iEE111..3FC199704-199910

*8-1.25PX40-40

main90105-08065iAE111..4FC199704-199910

*8-1.25PX45-35

main90105-08068iAE111..4FC199704-199910

*8-1.25PX35-30

sub90105-08333

main91511-80625iZZE112..4FC199910-200109

*6-1.0PX25-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12180iEE111..3FC199704-199910

main35103-12271iAE111..4FC199704-199910

main35103-12320iZZE112..4FC199910-200109

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iEE111..3FC199704-199910

main90930-03101iAE111..4FC199704-199910

main90930-03132iZZE112..4FC199910-200109

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12193iEE111..3FC199704-199910

main35104-12230iZZE112..4FC199910-200109

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iZZE112..4FC199704-200109

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iZZE112..4FC199704-200109

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008iEE111..3FC199704-199910

*10-1.25PX53-26

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAE111..4FC199704-199910

sub90341-10011

main90341-10011iZZE112..4FC199910-200109

main90341-18016iEE111..3FC199704-199910

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAE111..4FC199704-200109

main90430-18008iEE111..3FC199704-199910

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iEE111..3FC199704-199910

main35106-12070iAE111..4FC199704-199910

main35106-12090iZZE112..4FC199910-200109

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iEE111..3FC199704-200109

35144AGASKET, TRANSAXLE REAR COVER

main35144-12020iEE111..3FC199704-199808

sub35144-12030

main35144-12030iEE111..3FC199808-199910

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAE111,EE111..ATM199704-200109

35159GASKET, BRAKE DRUM

main35159-20010iZZE112..4FC199704-200109

main35159-32011iEE111..3FC199704-199910

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAE111..4FC199704-199910

main35168-12030iZZE112..4FC199910-200109

main35168-32010iEE111..3FC199704-199910

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iEE111..3FC199704-199910

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iEE111..3FC199704-199910

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iZZE112..4FC199704-200109

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iZZE112..4FC199704-200109

35395ASTRAINER, GOVERNOR OIL

main35395-12020iAE111..4FC199704-199910

main35395-32030iEE111..3FC199704-199910

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-32040iEE111..3FC199704-199910

4302

9161160614

main91611-60614

9161160816

main91611-60816
