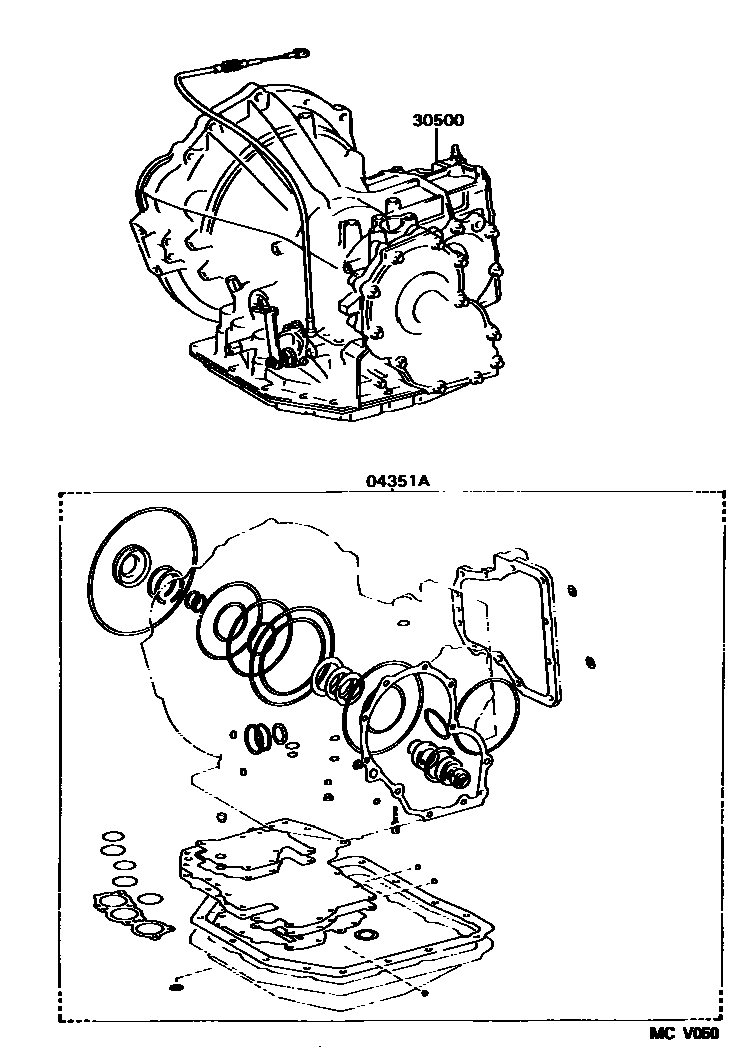

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A132L 0002 1A240L 0003 1A245E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12110iEE111..3FC199704-199706

main04351-12150iEE111..3FC199706-199803

main04351-12151iEE111..3FC199803-199910

main04351-12170iZZE112..4FC199910-200109

main04351-16070iAE111..4FC199704-199910

sub04351-16071

30500TRANSAXLE ASSY, AUTOMATIC

main30500-1A430iAE111..4FC199704-199910

main30500-1A560iEE111..3FC199704-199910

sub30500-1A561

main30500-1A650iZZE112..4FC199910-200109

2 parts on this diagram · 3 diagrams in section
