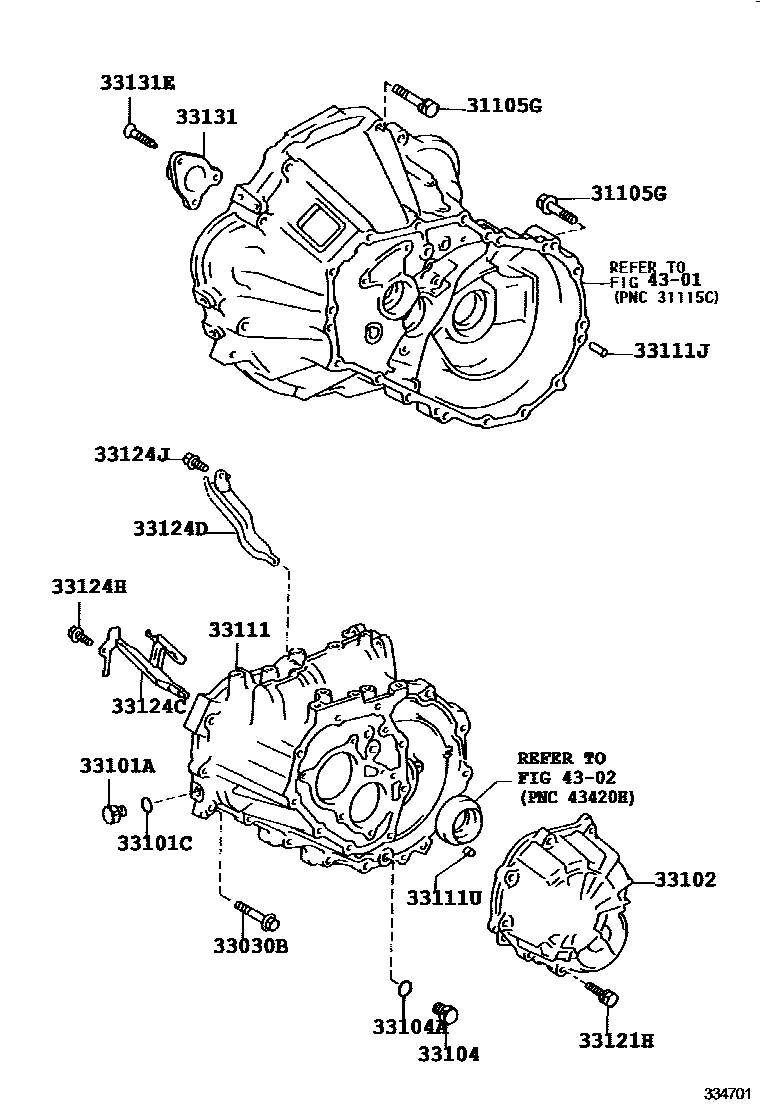

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50,C52 0002 1C140,C150 0003 1E55F,E55F5 0004 1S50 0005 1BE-3 0006 1BE-3 0007 1E351

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90080-11184iWZE110200001-200107

10X150-75

main90080-11239iWZE110200001-200107

10X150-70

main90105-08040iCE110199704-199910

*8-1.25PX18-15

sub91641-H0820

main90105-10077iAE115,CDE110199704-200109

*10-1.25PX43-26

main90105-10097iEE110199704-200107

*10-1.25PX60-22

main90119-12042iAE111..5F199704-199910

*12-1.25PX75-30

main90119-12128iAE115199704-200107

*12-1.25PX96-30

main90119-12168iAE11#..5F199704-200109

*12-1.25PX55-30

main91612-41025iEE110199910-200107

*10-1.25PX25-25

sub90119-10223

main91619-61260iEE110199704-200107

*12-1.25PX60-30

main91621-60614iEE11#..5F..(STD,TERRA)199704-200107

*6-1.00PX14-14

main91642-81055iZZE11#..5F199910-200109

*10-1.25PX55-30

main91651-41022iCDE110200008-200109

*10-1.25PX22-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCE110199704-199910

*8-1.25PX45-27.5

sub90105-08430

main90105-08064iZZE112..5F199704-200109

*8-1.25PX51-28

sub90105-08353

main90105-08086iAE111..5F199704-200109

*8-1.25PX45-27.5

main90105-08126iAE115199704-200109

*8-1.25PX45-27.5

mainSU00100356iWZE110200001-200107

7X100-45

mainSU00100357iWZE110200001-200107

7X100-35

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE111,CE110,EE11#..5F199704-200109

main90341-18033iAE115199704-200109

mainSU00100253iWZE110200001-200107

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAE115..SOL;CDE110,EE110,ZZE11#..5F199704-200109

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iEE11#..5F199704-200109

main33102-12021iAE111..5F199704-200109

main33102-12041iAE115199704-200109

sub33102-12042

main33102-33020iCE110199704-199910

mainSU00100027iWZE110200001-200107

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE11#,CE110,EE11#..5F199704-200109

mainSU00100280iWZE110200001-200107

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE11#,CE110,EE11#..5F199704-200109

33111CASE, MANUAL TRANSMISSION

main33101-12160iAE115199704-199911

sub33101-12161

sub90311-50027

main33101-12161iAE115199911-200009

sub33101-12162

main33101-12162iAE115200009-200107

sub33101-12163

sub33290-33020

main33101-28040iCDE110..LHD200008-200107

sub33101-28041

sub33250-12180

sub33290-33020

main33101-28041iCDE110200107-200109

sub33101-20090

sub33250-12180

main33111-16052iEE11#..5F199704-199907

sub33111-16053

sub90109-18005

sub90430-18008

main33111-16053iEE11#..5F199907-200109

main33111-16062iAE111..5F199704-199907

sub33111-16063

sub90109-18005

sub90430-18008

main33111-16063iZZE112..5F199907-200109

sub33111-16064

sub90101-08166

sub90201-08049

main33111-28050iCDE110..RHD200008-200009

sub33101-28040

main33111-32030iCE110199704-199910

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iCE110199704-200109

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAE111..5F199704-200109

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273iCE110199704-199910

main90119-08630iAE115199704-200109

main90119-08A34iEE11#..5F199704-200109

sub90119-08373

main91611-60835iAE111..5F199704-200109

mainSU00100343iWZE110200001-200107

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iEE110,ZZE111199704-200109

main33124-12012iAE111..5F199704-199907

sub33124-20050

main33124-12030iAE115199704-200107

main33124-20050iZZE112..5F199907-200109

main33124-28050iCDE110200008-200109

main33124-33010iCE110199704-199910

mainSU00100342iWZE110200001-200107

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iEE11#..5F199704-200109

main33124-12021iZZE112..5F199704-200109

main33124-12041iAE115199704-200107

main33124-28060iCDE110200008-200109

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iAE115199704-200109

sub90119-08830

main91611-60820iEE110,ZZE11#..5F199704-200109

sub91611-G0820

main91651-60618iCE110199704-199910

33124JBOLT, W/WASHER

main91611-60820iEE110,ZZE11#..5F199704-200109

sub91611-G0820

33131RETAINER, BEARING, FRONT(MTM)

main33131-12080iAE111..5F199704-199910

mainSU00100183iWZE110200001-200107

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE111..5F199704-199910

4301

4302
