TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

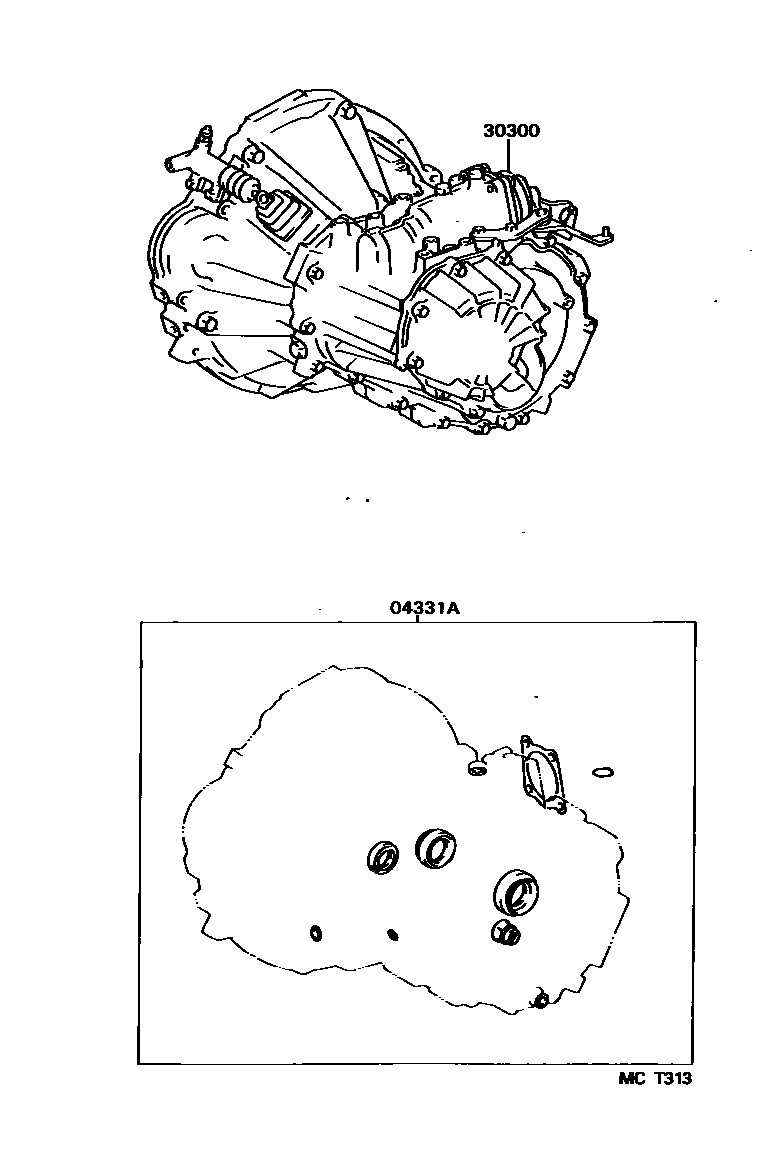

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12101i199704-200107
main04331-12110i199704-200109
main04331-28020i200008-200109
sub04331-64011
main04331-32011i199704-199910
mainSU00100361i200001-200107
30300TRANSAXLE ASSY, MANUAL
main30300-02040i200001-200107
main30300-1A290i199704-200107
W(ABS)
main30300-1A320i199704-199910
main30300-1A360i199704-199910
sub30300-1A361
main30300-1A420i199704-200107
sub30300-1A421
main30300-1A450i199704-200107
main30300-1A520i199704-199910
main30300-1A730i199910-200109
sub30300-1A731
main30300-1A760i199910-200109
main30300-1A870i200008-200107
main30300-1A890i200008-200109

2 parts on this diagram · 5 diagrams in section
