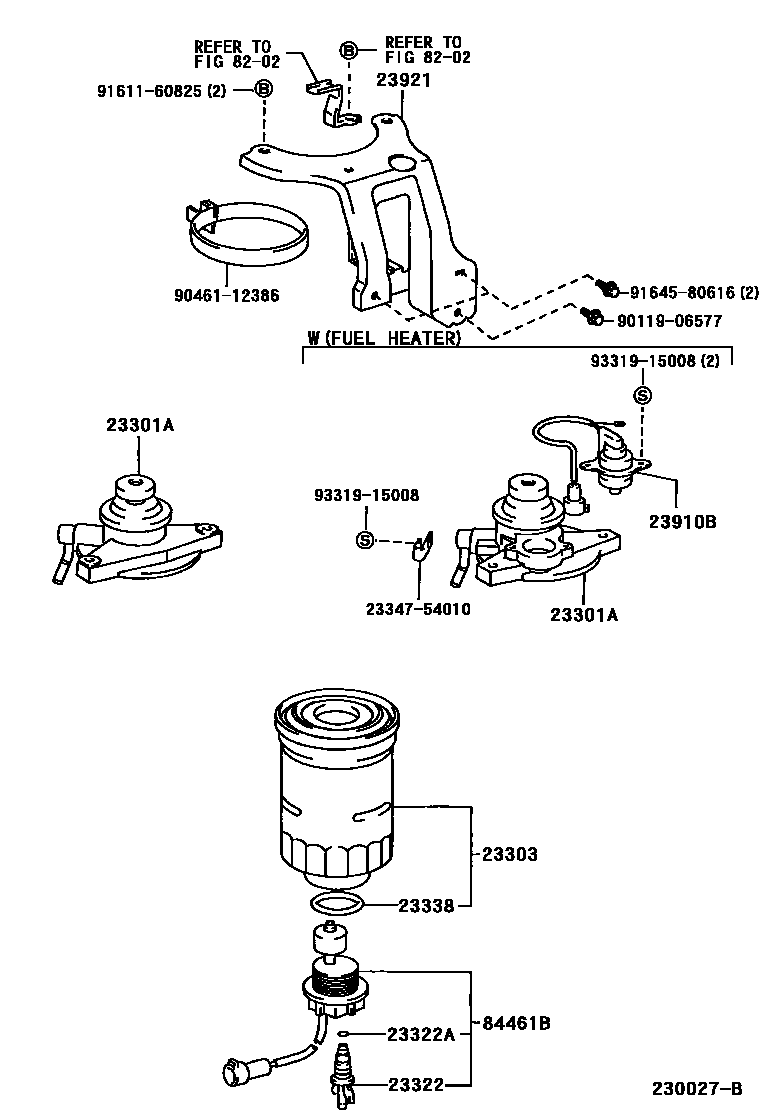

FUEL FILTER

0001 1 0002 1 0003 1W(FUEL HEATER) 0004 1 0005 1

23301ACAP ASSY, FUEL FILTER

main23301-64300i2CE..CE110¥13,500199704-199910

main23301-64310i2CE..CE110..LHD¥16,700199704-199910

W(FUEL HEATER)

main23380-27010i1CDFTV..CDE110¥7,500200008-200109

sub23380-27011

main23380-27060i1CDFTV..CDE110..LHD¥7,500200008-200109

W(FUEL HEATER)

sub23380-27061

mainSU00100339i1WZ..WZE110200001-200107

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2CE..CE110¥6,300199704-199910

main23390-64450i1CDFTV..CDE110¥4,430200008-200109

sub23390-33030

mainSU00100468i1WZ..WZE110200001-200107

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2CE..CE110¥660199704-199910

main23388-64470i1CDFTV..CDE110¥390200008-200109

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2CE..CE110¥0199704-200109

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1CDFTV..CDE110¥0199704-200109

23910BHEATER ASSY, FUEL

main23910-27010i1CDFTV..CDE110..LHD¥13,300200008-200109

main23910-64020i2CE..CE110..LHD..WG¥12,700199808-199910

main23910-64020i2CE..CE110..LHD..SED¥12,700199704-199910

W(FUEL HEATER)

23921SUPPORT, FUEL FILTER

main23264-11110i2E..EE110¥520199704-199910

main23921-27030i1CDFTV..CDE110¥3,030200008-200109

main23921-64182i2CE..CE110¥2,360199704-199910

8202

84461BSWITCH, LEVEL WARNING

main84461-12060iCE110¥5,700199704-199910

main84461-28040iCDE110¥8,400200008-200109

sub84461-28041¥5,200

2334754010CLIP, CORD

main23347-54010¥0

9011906577

main90119-06577¥70

9046112386

main90461-12386¥520

9161160825

main91611-60825¥140

9164580616

main91645-80616¥110

9331915008

main93319-15008¥170

15 parts on this diagram · 5 diagrams in section
