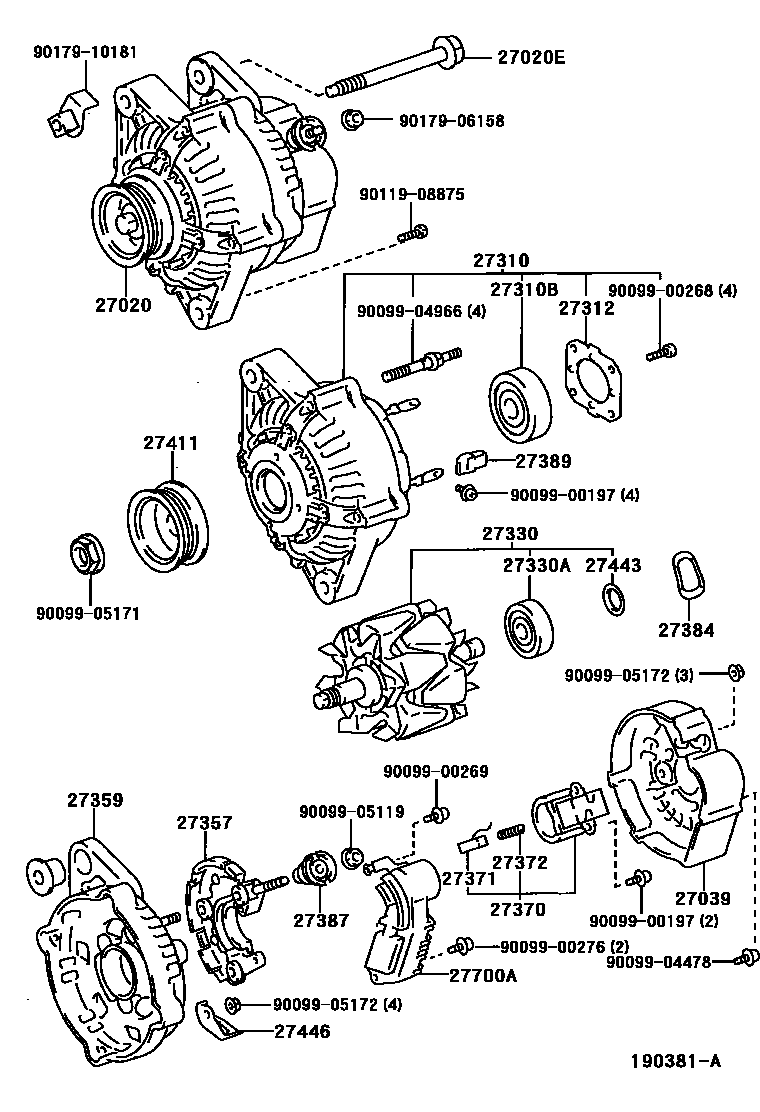

ALTERNATOR

0001 112V 70A 0003 112V 80A 0004 112V 70A 0005 112V 80A 0006 112V 80A 0007 112V 70A 0008 112V 80A 0009 112V 120A

27020ALTERNATOR ASSY

main27060-11270i2E..EE110199704-200107

12V 70A

main27060-15080i4AFE,7AFE..AE11#..5F199704-199910

12V 70A

main27060-15120i7AFE..AE115199910-200107

12V 70A

main27060-16430i4AFE..AE111..4FC199704-199910

12V 80A

main27060-22060i3ZZFE,4ZZFE..ZZE11#..5F199910-200109

12V 70A

main27060-22070i3ZZFE..ZZE112..4FC199910-200109

12V 80A

main27060-27030i1CDFTV..CDE110200008-200109

12V 120A

main27060-53020i1WZ..WZE110200001-200107

12V 80A

main27060-64080i2CE..CE110199704-199910

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90080-11269i1WZ..WZE110200001-200107

main90105-10075i3ZZFE,4ZZFE..ZZE11#199910-200109

main90105-10336i4AFE,7AFE..AE11#199704-200107

main90901-05004i1CDFTV..CDE110199704-200109

27039COVER, ALTERNATOR REAR END

main27039-16380i4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F199704-200107

main27039-21020i3ZZFE,4ZZFE..ZZE11#..5F199910-200104

sub27039-21060

main27039-21060i3ZZFE,4ZZFE..ZZE11#..5F200104-200109

main27039-22050i3ZZFE..ZZE112..4FC200104-200109

main27039-27010i1CDFTV..CDE110200008-200104

sub27039-28060

main27039-28060i1CDFTV..CDE110200104-200109

main27039-46190i3ZZFE..ZZE112..4FC199910-200104

sub27039-22050

main27039-55080i2CE..CE110;4AFE..AE111..4FC199704-200101

sub27039-70470

main27039-70470i1WZ..WZE110200101-200107

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15170i4AFE,7AFE..AE11#..5F199704-200107

main27310-16103i2E..EE110199704-200107

main27310-16430i4AFE..AE111..4FC199704-199910

main27310-22050i3ZZFE..ZZE112..4FC199910-200109

main27310-22080i3ZZFE,4ZZFE..ZZE11#..5F199910-200109

main27310-27010i1CDFTV..CDE110200008-200109

main27310-53010i1WZ..WZE110200001-200107

main27310-64320i2CE..CE110199704-199910

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F199704-200107

main90099-10192i2CE..CE110;4AFE..AE111..4FC199704-200109

main90099-10199i3ZZFE,4ZZFE..ZZE11#..5F199910-200109

main90099-10219i3ZZFE..ZZE112..4FC199910-200109

27312PLATE, RETAINER

main27312-42010i3ZZFE..ZZE112..4FC;1CDFTV,1WZ..CDE110,WZE110199704-200109

main27312-70200i4AFE,7AFE,2E,4EFE..AE11#,EE11#..3FC,5F199704-200107

main27312-72100i3ZZFE,4ZZFE..ZZE11#..5F199910-200109

27330ROTOR ASSY, ALTERNATOR

main27330-16390i1WZ..WZE110;3ZZFE..ZZE112..4FC199910-200109

main27330-20070i1CDFTV..CDE110200008-200109

main27330-64570i2E..EE110;7AFE..AE115..SOL199704-200107

main27330-67100i3ZZFE,4ZZFE..ZZE11#..5F199910-200109

main27330-76030i2CE..CE110;4AFE..AE111..4FC199704-200007

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11#199704-200109

main90099-10216i3ZZFE,4ZZFE..ZZE11#..5F199910-200109

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16380i2E..EE110;7AFE..AE115..SOL199704-200107

main27357-20060i1CDFTV..CDE110200008-200109

main27357-22050i1WZ..WZE110200001-200107

main27357-55080i3ZZFE..ZZE112..4FC199704-200109

main27357-64281i2CE..CE110199704-199910

main27357-67100i3ZZFE,4ZZFE..ZZE11#..5F199910-200109

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15180i4AFE..AE111..4FC199704-199910

main27359-16182i2E..EE110199704-200107

main27359-16380i4AFE,7AFE..AE11#..5F199704-200107

main27359-22040i3ZZFE..ZZE112..4FC199910-200109

main27359-22080i3ZZFE,4ZZFE..ZZE11#..5F199910-200109

main27359-27010i1CDFTV..CDE110200008-200109

main27359-53010i1WZ..WZE110200001-200107

main27359-64320i2CE..CE110199704-199910

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i4AFE,7AFE..AE11#..5F199704-200109

main27370-58320i2E..EE110199704-200107

main27370-75060i3ZZFE..ZZE112..4FC;1CDFTV,1WZ..CDE110,WZE110199704-200109

27371BRUSH, ALTERNATOR

main27371-70300i7AFE..AE115..SOL;2E,3ZZFE,4ZZFE..EE110,ZZE11#..5F199704-200109

27372SPRING, ALTERNATOR BRUSH

main27372-63020i7AFE..AE115..SOL;2E,3ZZFE,4ZZFE..EE110,ZZE11#..5F199704-200109

sub27372-87501

27384WASHER

main27384-16380i7AFE..AE115..SOL;2E,3ZZFE,4ZZFE..EE110,ZZE11#..5F199704-200109

main27384-50030i3ZZFE..ZZE112..4FC;1CDFTV,1WZ..CDE110,WZE110199704-200109

27387INSULATOR, TERMINAL

main27387-42020i4AFE..AE111..4FC199704-199708

main27387-42021i4AFE..AE111..4FC199708-200109

main27387-64261i2CE..CE110199704-199708

main27387-64320i2CE..CE110199708-199910

main27387-70170i2E..EE110199704-199709

main27387-70171i7AFE..AE115..SOL;2E,3ZZFE,4ZZFE..EE110,ZZE11#..5F199709-200109

27389INSULATOR, TERMINAL

main27389-42010i2CE..CE110;4AFE..AE111..4FC199704-200109

main27389-63020i2E..EE110;7AFE..AE115..SOL199704-200107

27411PULLEY, ALTERNATOR

main27411-16180i7AFE..AE115199704-200107

main27411-22080i3ZZFE,4ZZFE..ZZE11#..5F199910-200109

main27411-27010i1CDFTV..CDE110200008-200109

main27411-42030i4AFE..AE111..4FC199704-199910

main27411-50050i3ZZFE..ZZE112..4FC199910-200109

main27411-53010i1WZ..WZE110200001-200107

main27411-64320i2CE..CE110199704-199910

main27411-65010i2E,4EFE..EE11#199704-200107

27443COVER, ALTERNATOR BEARING

main27443-63020i4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11#199704-200109

27446CLIP, ALTERNATOR CORD

main27446-15170i4AFE,7AFE..AE11#199704-200107

main27446-22040i3ZZFE,4ZZFE..ZZE11#199910-200109

main27446-64320i2CE..CE110199704-199910

main27446-64450i1CDFTV..CDE110200008-200109

27700AREGULATOR ASSY, GENERATOR

main27700-11070i2E..EE110199704-200107

main27700-35040i1WZ..WZE110199704-200107

main27700-46050i7AFE..AE115199910-200107

main27700-46060i3ZZFE,4ZZFE..ZZE11#199910-200109

main27700-64090i1CDFTV..CDE110200008-200109

main27700-74030i4AFE,7AFE..AE11#199704-199910

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181
