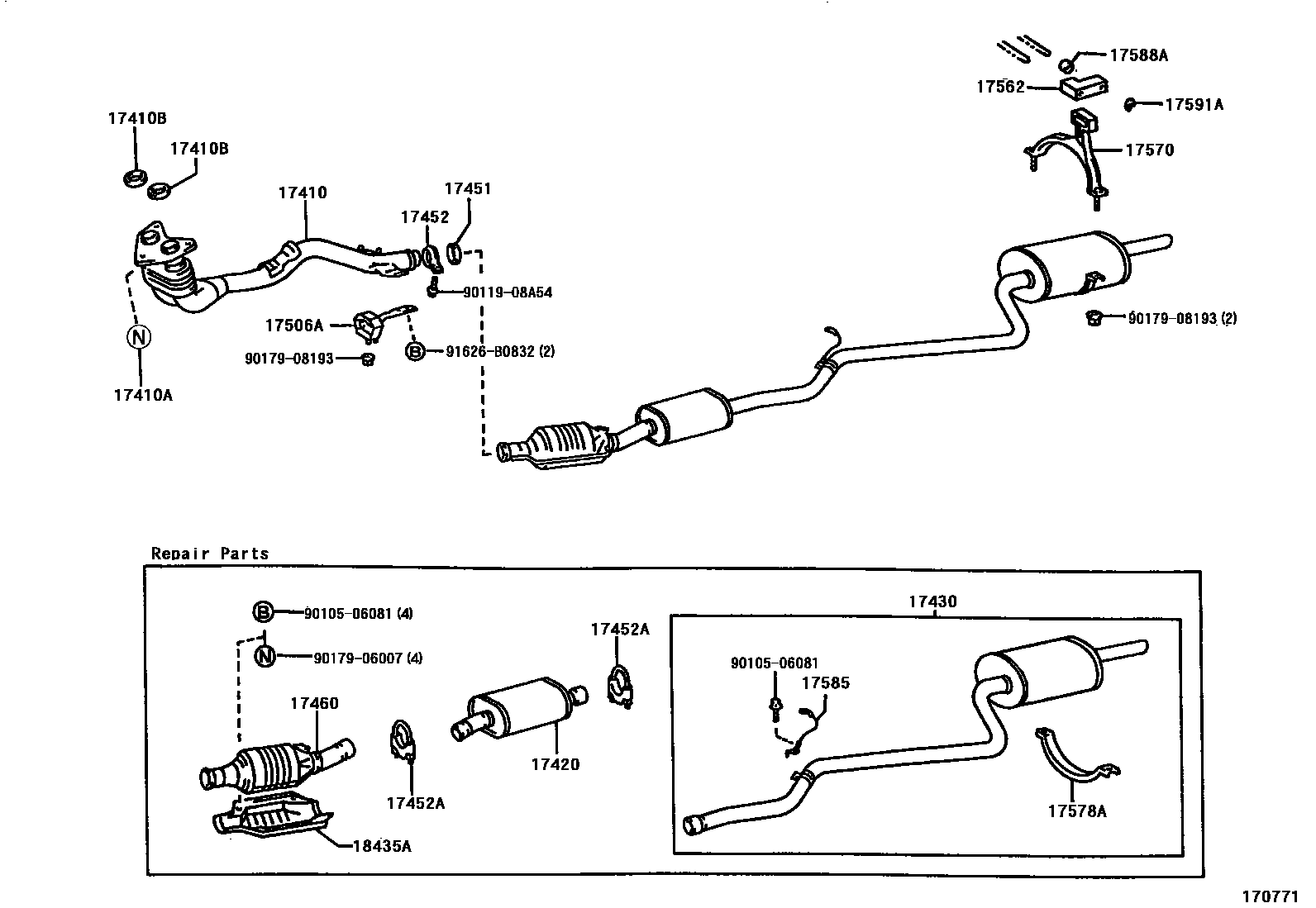

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-11390i2E..EE110199704-200002

sub17401-11391

main17401-11391i2E..EE110200002-200107

main17410-1A320i7AFE..AE115199704-200107

main17410-1A480i4AFE..AE111..5F199704-199910

sub17410-1A481

main17410-1A490i4AFE..AE111..4FC199704-199910

main17410-1B090i4EFE..EE111199704-199910

main17410-22140i3ZZFE,4ZZFE..ZZE11#199910-200109

main17410-27110i1CDFTV..CDE110200008-200109

main17410-53010i1WZ..WZE110200001-200107

main17410-64790i2CE..CE110199704-199910

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i2E..EE110199704-200107

17410BGASKET, EXHAUST PIPE

main17451-16040i4AFE..AE111..4FC199704-199910

REAR

main17451-22020i3ZZFE,4ZZFE..ZZE11#199910-200109

main17451-74060i1CDFTV..CDE110200008-200109

main90917-06061i2CE..CE110199704-199910

FRONT

main90917-06065i4AFE..AE111..4FC199704-199910

FRONT

main90917-06065i7AFE..AE115199910-200107

main90917-06069i2E..EE110199704-200107

FRONT

main90917-06080i4EFE..EE111199704-200107

REAR

main90917-06080i1WZ..WZE110200001-200107

17420PIPE ASSY, EXHAUST, CENTER

main17420-11340i2E..EE110199704-200107

main17420-11370i4EFE..EE111199704-199910

main17420-16720i4AFE..AE111199704-199910

main17420-22010i3ZZFE,4ZZFE..ZZE11#199910-200109

main17420-27020i1CDFTV..CDE110200008-200109

main17420-53010i1WZ..WZE110200001-200107

main17420-64280i2CE..CE110199704-199910

17430PIPE ASSY, EXHAUST, TAIL

main17430-11820i2E..EE110199704-199811

sub17430-11821

main17430-11821i2E..EE110199811-200107

main17430-1A630i7AFE..AE115199704-199910

sub17430-1A906

sub17578-16050

main17430-1B070i4EFE..EE111199704-199910

main17430-1D010i4AFE..AE111199704-199910

sub17430-1D011

main17430-1D310i7AFE..AE115199910-200107

sub17430-1D903

sub17578-16050

main17430-22120i3ZZFE,4ZZFE..ZZE11#199910-200109

main17430-27100i1CDFTV..CDE110200008-200109

main17430-53040i1WZ..WZE110200001-200107

main17430-6A210i2CE..CE110199704-199910

17451GASKET, EXHAUST PIPE

main90917-06039i7AFE..AE115199704-200107

main90917-06045i2CE..CE110199704-199910

main90917-06082i2E,1WZ..EE110,WZE110199704-200107

main90917-06084i1CDFTV,3ZZFE,4ZZFE..CDE110,ZZE11#199704-200109

17452CLAMP, EXHAUST PIPE

main90461-15013i2E,1WZ..EE110,WZE110199704-200107

main90461-15016i1CDFTV,3ZZFE,4ZZFE..CDE110,ZZE11#199704-200109

17452ACLAMP, EXHAUST PIPE

main17452-15020i4EFE..EE111199704-199910

REAR

main17452-16120i4EFE..EE111199704-200109

REAR

main17452-16120i2E,1WZ..EE110,WZE110199704-200107

main17452-16120i4AFE..AE111199704-199910

FRONT

main17452-16160i3ZZFE,4ZZFE..ZZE11#199704-200109

FRONT

main17452-16160i1CDFTV..CDE110200008-200109

17460CONVERTER ASSY, CATALYTIC W/PIPE

main17460-11030i4EFE..EE111199704-199910

main17460-16120i7AFE..AE115199704-199910

*115=TOYOTA/95-99/N

main17460-16170i4AFE..AE111199704-199910

main17460-16260i4AFE..AE111..LHD..WG..5F199808-199910

*114=TOYOTA/U10/Y,GERMANY SPEC

main17460-16290i7AFE..AE115199910-200107

*115=TOYOTA/99-01/Y

main17460-22010i3ZZFE,4ZZFE..ZZE11#199910-200109

*115=TOYOTA/99-01/Y

main17460-53010i1WZ..WZE110200001-200107

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-11100i4AFE,2E,4EFE..AE111,EE11#199704-200107

main17506-16110i7AFE..AE115199704-200107

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-16240i7AFE..AE115..SOL;1CDFTV,2E,1WZ,3ZZFE,4ZZFE..CDE110,EE110,WZE110,ZZE11#199704-200109

17570BRACKET ASSY, EXHAUST PIPE SUPPORT

main17570-11010i2CE,4EFE..CE110,EE111199704-199910

main17570-16020i2E..EE110199704-200107

main17570-16040i4AFE,7AFE..AE11#199704-200109

17578ACLAMP, MUFFLER

main17578-11020i2CE,4EFE..CE110,EE111199704-199910

main17578-11030i4AFE,2E..AE111,EE110199704-200109

main17578-16040i2E..EE110199704-199811

sub17578-11030

main17578-16050i7AFE..AE115199704-200107

17585HANGER, EXHAUST PIPE

main17585-16060i2E..EE110199704-200107

main17585-16100i7AFE..AE115199704-200107

17588ASPACER, EXHAUST PIPE HANGER

main17588-16020i4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11#199704-200109

17591ASTOPPER, EXHAUST PIPE SUPPORT

main17591-16020i4AFE,7AFE,2CE,2E,4EFE..AE11#,CE110,EE11#199704-200109

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-11020i4EFE..EE111199704-199901

sub18435-11040

main18435-11030i4EFE..EE111199901-199910

main18435-16170i4AFE..AE111199704-199901

sub18435-20020

main18435-20020i4AFE..AE111..4FC;4AFE..AE111..RHD;4AFE..AE111..LHD..SED..5F199901-199910

9010506081

main90105-06081

9011908A54

main90119-08A54

9017906007

main90179-06007

9017908193

main90179-08193

91626B0832

main91626-B0832

22 parts on this diagram · 9 diagrams in section
