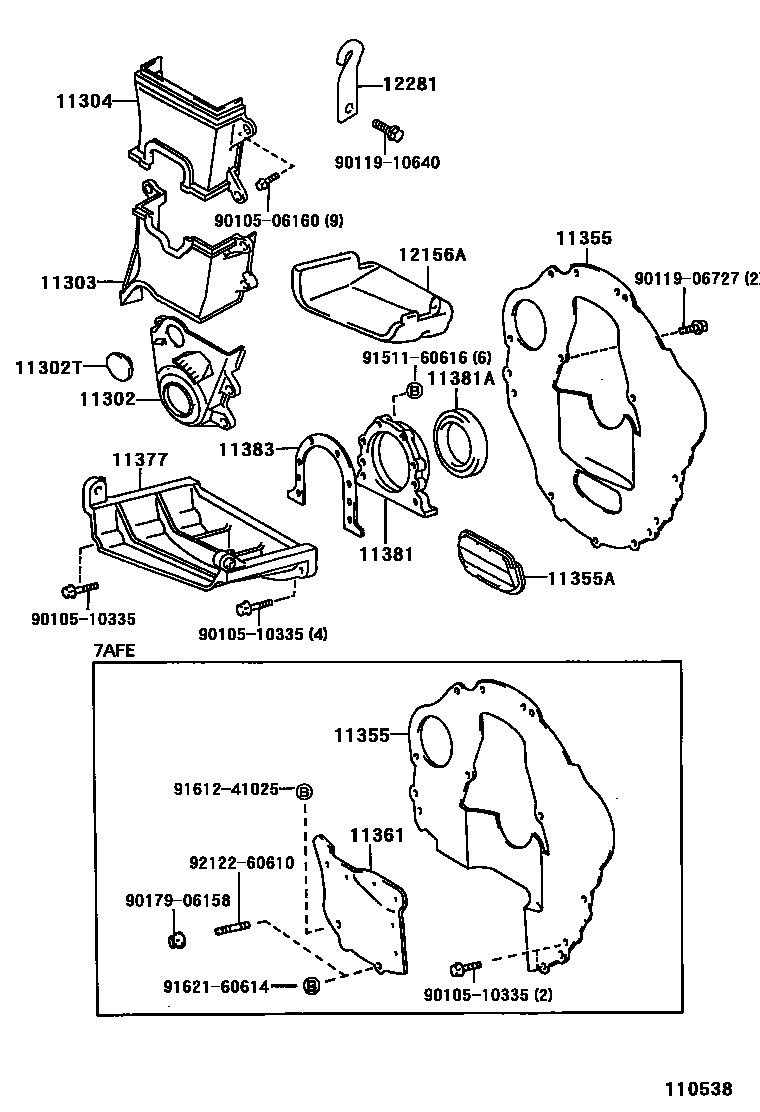

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11110i4EFE..EE111199704-199910

main11302-15050i4AFE,7AFE..AE11#199704-199910

main11302-16040i7AFE..AE115199910-200107

main11321-22021i3ZZFE,4ZZFE..ZZE11#199910-200109

mainSU00100046i1WZ..WZE110200001-200107

subSU001-00491

11302TPLUG, HOLE

main90950-01783i7AFE..AE115199704-200107

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-11031i4EFE..EE111199704-199910

main11303-15050i4AFE..AE111199704-199910

main11303-16050i7AFE..AE115199704-199910

main11303-16070i7AFE..AE115199910-200107

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15030i4AFE..AE111199704-199910

main11304-16060i7AFE..AE115199704-200107

mainSU00100048i1WZ..WZE110200001-200107

11355PLATE, REAR END

main11355-10012i2E,4EFE..EE11#..5F199704-200107

main11355-11012i4EFE..EE111..3FC199704-199910

main11355-15070i4AFE..AE111..5F199704-199910

main11355-15080i4AFE..AE111..4FC199704-199910

main11355-16060i7AFE..AE115199704-200107

main11355-27010i1CDFTV..CDE110200008-200105

sub11355-27011

main11355-27011i1CDFTV..CDE110200105-200109

main11355-64051i2CE..CE110199704-199910

sub11355-64052

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AFE..AE111..4FC199704-199910

main90950-01548i4EFE..EE111..3FC199704-199804

11361COVER, FLYWHEEL HOUSING UNDER

main11361-16050i7AFE..AE115199704-200107

11377STIFFENER, REAR END PLATE

main11377-11020i4EFE..EE111199704-199910

main11377-15012i4AFE..AE111199704-199910

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10021i2E..EE110199704-200107

main11381-15010i7AFE..AE115199704-200107

main11381-64012i2CE..CE110..TERRA199704-199812

sub11381-64020

main11381-64020i2CE..CE110..LUNA199808-200109

11381ASEAL, ENGINE REAR OIL

main90311-70007i7AFE..AE115199704-200107

main90311-75009i2E,4EFE..EE11#199704-200107

main90311-90008i2CE..CE110199704-200109

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i7AFE..AE115199704-200107

12156AINSULATOR, OIL PAN

main12156-16010i4AFE..AE111199704-199910

12281HANGER, ENGINE, NO.1

main12281-11031i4EFE..EE111199704-199910

main12281-15050i4AFE,7AFE..AE11#199704-200107

main12281-22021i3ZZFE,4ZZFE..ZZE11#199910-200109

9010506160

main90105-06160

9010510335

main90105-10335

9011906727

main90119-06727

9011910640

main90119-10640

9017906158

main90179-06158

9151160616

main91511-60616

9161241025

main91612-41025

9162160614

main91621-60614

9212260610

main92122-60610

22 parts on this diagram · 7 diagrams in section
