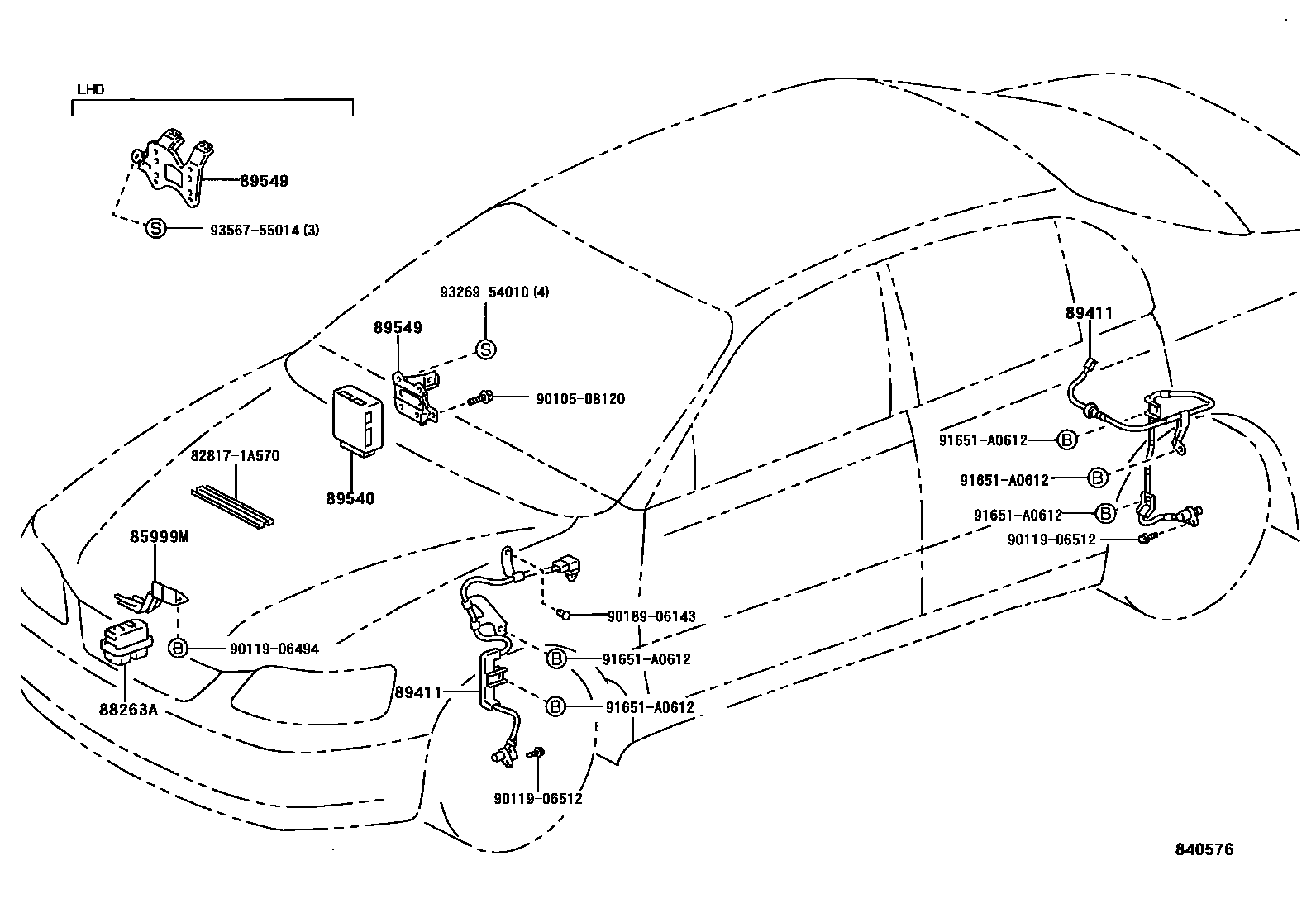

ABS & VSC

0001 1 0002 1

85999MBRACKET, RELAY

main85999-12170iAE101,CE100,EE101¥550199205-199305

main85999-12320iAE10#,CE100,EE101¥540199305

88263ARELAY, SKID CONTROL

main88263-12070iAE10#,CE100,EE101¥6,600199305-199604

sub88263-12080¥6,700

main88263-12090iAE101,CE100,EE101¥6,600199205-199305

main88263-32060iAE10#,CE100,EE101¥6,600199604

89411SENSOR, SPEED

main89542-12020iAE101,CE100,EE101¥21,700199205-199505

FRONT RH

main89542-12040iAE10#,CE100,EE101¥21,700199505

FRONT RH

main89543-12020iAE101,CE100,EE101¥21,700199205-199505

FRONT LH

main89543-12040iAE10#,CE100,EE101¥21,700199505

FRONT LH

main89545-12020iAE101,CE100,EE101¥21,700199205-199505

REAR RH

main89545-12030iAE103¥21,700199505

REAR RH

main89545-12040iAE101,CE100,EE101¥21,600199505

REAR RH

main89546-12020iAE101,CE100,EE101¥21,700199205-199505

REAR LH

main89546-12030iAE103¥21,700199505

REAR LH

main89546-12040iAE101,CE100,EE101¥21,600199505

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89540-12240iAE101,CE100,EE101..RHD¥94,900199505

main89540-12250iAE101,CE100,EE101..LHD..(3FC,5F)¥94,900199505

main89540-12260iAE101..LHD..4FC¥94,900199505

main89540-12280iAE103¥94,900199505

main89541-12070iAE101,CE100,EE101¥94,900199205-199505

89549BRACKET, SKID CONTROL COMPUTER

main89549-12040iAE101,CE100,EE101..RHD¥1,590199205-199505

main89549-12050iAE101,CE100,EE101..LHD¥1,440199205-199505

828171A570PROTECTOR, WIRING HARNESS, NO.1

main82817-1A570¥1,000

9010508120

main90105-08120¥90

9011906494

main90119-06494¥120

9011906512

main90119-06512¥160

9018906143

main90189-06143¥130

91651A0612

main91651-A0612¥80

9326954010

main93269-54010¥60

9356755014

main93567-55014¥110

13 parts on this diagram · 2 diagrams in section
