EPC Data

MUDGUARD & SPOILER

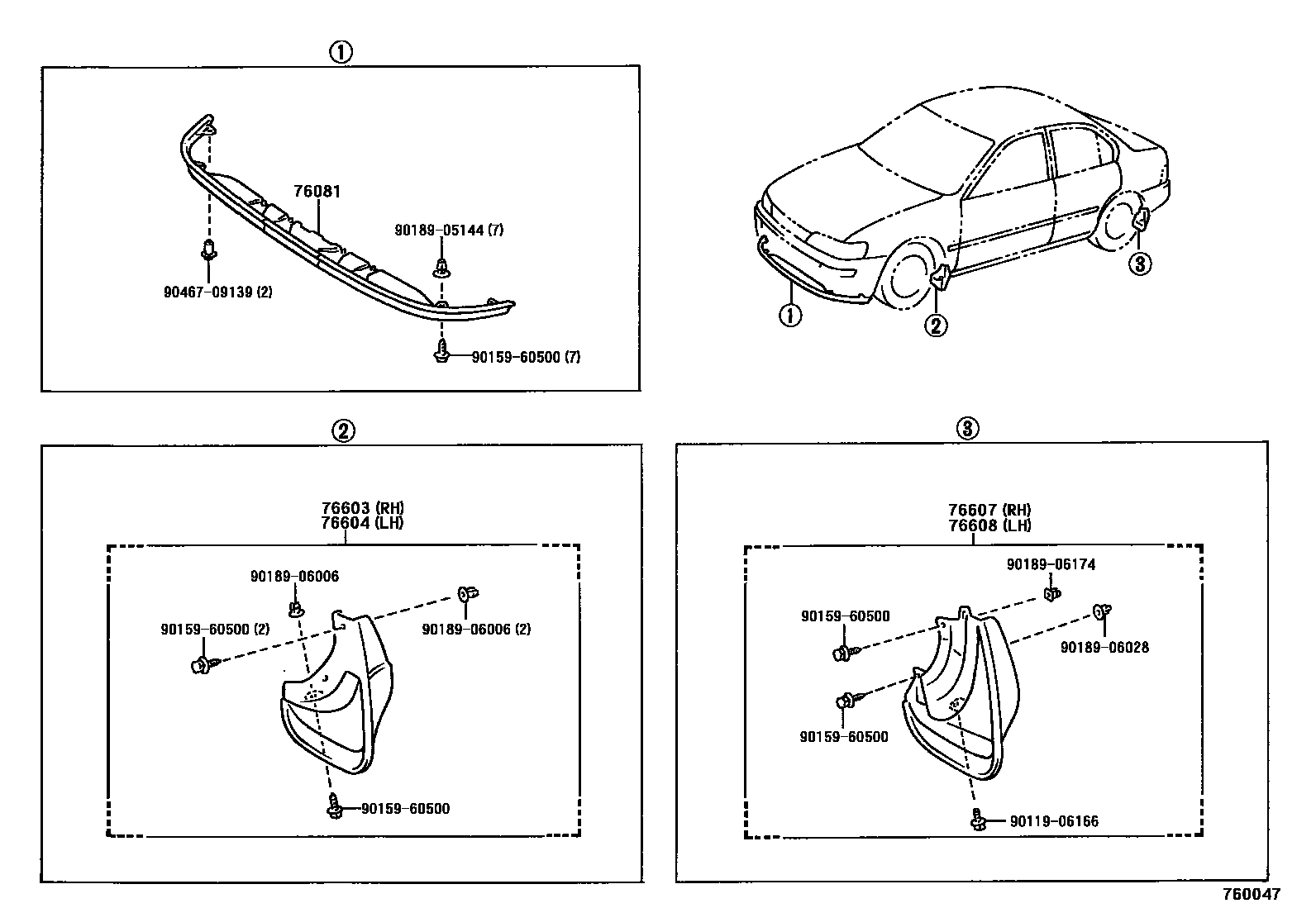

Parts diagram
76081SPOILER SUB-ASSY, FRONT
main76081-12120i199205
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76621-19215i199205-199704
BLACK TYPE
main76621-19225-03i199205-199505
W(COLORED TYPE),DARK BLUEISH GRAY M,183
sub76621-09070
main76621-19225-04i199205-199210
W(COLORED TYPE),DARK BLUE MICA M,8J7
sub76621-09070
main76621-19225-05i199205-199210
W(COLORED TYPE),LIGHT BEIGE M,3K9
sub76621-09070
main76621-19225-07i199205-199505
W(COLORED TYPE),GRAYISH GREEN M,6M3
sub76621-09070
main76621-19225-08i199205-199210
W(COLORED TYPE),SUPER WHITE 2,040
sub76621-09070
main76621-19225-12i199205-199210
W(COLORED TYPE),RED MICA M,3K4
sub76621-09070
main76621-19225-13i199205-199210
W(COLORED TYPE),SILVER MICA M,192
sub76621-09070
main76621-19225-22i199205-199210
W(COLORED TYPE),ROSE MICA M.GRAPHITE,3K5
sub76621-09070
main76621-19225-A0i199210-199505
W(COLORED TYPE),SUPER WHITE 2,040
sub76621-09070
main76621-19225-B0i199210-199505
W(COLORED TYPE),SILVER MICA M,192
sub76621-09070
main76621-19225-B2i199505-199704
W(COLORED TYPE),BLUISH GRAY ME,182
sub76621-09070
main76621-19225-B3i199605-199704
W(COLORED TYPE),SILVER ME,199
sub76621-09070
main76621-19225-D1i199205-199704
W(COLORED TYPE),SUPER RED 2,3E5
sub76621-09070
main76621-19225-D3i199210-199305
W(COLORED TYPE),ROSE GRAPHITE MI ME,3K5
sub76621-09070
main76621-19225-D4i199210-199505
W(COLORED TYPE),LT BEIGE ME,3K9
sub76621-09070
main76621-19225-G1i199305-199405
W(COLORED TYPE),MD.GRAISHGREEN MC.GR,6N1
sub76621-09070
main76621-19225-G2i199505-199611
W(COLORED TYPE),MD.GREEN M.M,6P0
sub76621-09070
main76621-19225-G5i199611-199704
W(COLORED TYPE),GREEN MC.,6P6
sub76621-09070
main76621-19225-H1i199505-199704
W(COLORED TYPE),TURQUOISE M.M,746
sub76621-09070
main76621-19225-J0i199205-199405
W(COLORED TYPE),LIGHT BLUE M M,8J6
sub76621-09070
main76621-19225-J2i199405-199505
W(COLORED TYPE),DARK BLUE MICA M.,8G5
sub76621-09070
main76621-19225-J3i199505-199605
W(COLORED TYPE),LT PURPLISH BLUE M.M,8K1
sub76621-09070
main76621-19225-J4i199505-199704
W(COLORED TYPE),DK.BLUE MC.,8K8
sub76621-09070
main76621-19225-J5i199605-199704
W(COLORED TYPE),STRONG BLUE M,8B6
sub76621-09070
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76622-19215i199205-199704
BLACK TYPE
main76622-19225-03i199205-199505
W(COLORED TYPE),DARK BLUEISH GRAY M,183
sub76622-09070
main76622-19225-04i199205-199210
W(COLORED TYPE),DARK BLUE MICA M,8J7
sub76622-09070
main76622-19225-05i199205-199210
W(COLORED TYPE),LIGTH BEIGE M,3K9
sub76622-09070
main76622-19225-07i199205-199505
W(COLORED TYPE),GRAYISH GREEN M,6M3
sub76622-09070
main76622-19225-08i199205-199210
W(COLORED TYPE),SUPER WHITE 2,040
sub76622-09070
main76622-19225-12i199205-199210
W(COLORED TYPE),RED MICA 2,3K4
sub76622-09070
main76622-19225-13i199205-199210
W(COLORED TYPE),SILVER MICA M,192
sub76622-09070
main76622-19225-22i199205-199210
W(COLORED TYPE),ROSE MICA M.GRAPHITE,3K5
sub76622-09070
main76622-19225-A0i199210-199505
W(COLORED TYPE),SUPER WHITE 2,040
sub76622-09070
main76622-19225-B0i199210-199505
W(COLORED TYPE),SILVER MICA M,192
sub76622-09070
main76622-19225-B2i199505-199704
W(COLORED TYPE),BLUISH GRAY ME,182
sub76622-09070
main76622-19225-B3i199605-199704
W(COLORED TYPE),SILVER ME,199
sub76622-09070
main76622-19225-D1i199205-199704
W(COLORED TYPE),SUPER RED 2,3E5
sub76622-09070
main76622-19225-D3i199210-199305
W(COLORED TYPE),ROSE GRAPHITE MI ME,3K5
sub76622-09070
main76622-19225-D4i199210-199505
W(COLORED TYPE),LT BEIGE ME,3K9
sub76622-09070
main76622-19225-G1i199405-199505
W(COLORED TYPE),MD.GRAISHGREEN MC.GR,6N1
sub76622-09070
main76622-19225-G2i199505-199611
W(COLORED TYPE),MD.GREEN M.M,6P0
sub76622-09070
main76622-19225-G5i199611-199704
W(COLORED TYPE),GREEN MC.,6P6
sub76622-09070
main76622-19225-H1i199505-199704
W(COLORED TYPE),TURQUOISE M.M,746
sub76622-09070
main76622-19225-J0i199205-199405
W(COLORED TYPE),LIGHT BLUE M M,8J6
sub76622-09070
main76622-19225-J2i199210-199405
W(COLORED TYPE),DARK BLUE MICA M.,8J7
sub76622-09070
main76622-19225-J3i199505-199605
W(COLORED TYPE),LT PURPLISH BLUE M.M,8K1
sub76622-09070
main76622-19225-J4i199505-199704
W(COLORED TYPE),DK.BLUE MC.,8K8
sub76622-09070
main76622-19225-J5i199605-199704
W(COLORED TYPE),STRONG BLUE M,8B6
sub76622-09070
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-19445i199205-199704
main76625-19455-03i199205-199505
W(COLORED TYPE),DARK BLUEISH GRAY M,183
sub76625-09090
main76625-19455-04i199205-199210
W(COLORED TYPE),DARK BLUE MICA M,8J7
sub76625-09090
main76625-19455-05i199205-199210
W(COLORED TYPE),LIGHT BEIGE M,3K9
sub76625-09090
main76625-19455-07i199205-199505
W(COLORED TYPE),GRAYISH GREEN M,6M3
sub76625-09090
main76625-19455-08i199205-199210
W(COLORED TYPE),SUPER WHITE 2,040
sub76625-09090
main76625-19455-12i199205-199210
W(COLORED TYPE),RED MICA M,3K4
sub76625-09090
main76625-19455-13i199205-199210
W(COLORED TYPE),SILVER MICA M,192
sub76625-09090
main76625-19455-22i199205-199210
W(COLORED TYPE),ROSE MICA M.GRAPHITE,3K5
sub76625-09090
main76625-19455-A0i199210-199704
W(COLORED TYPE),SUPER WHITE 2,040
sub76625-09090
main76625-19455-B0i199210-199505
W(COLORED TYPE),SILVER MICA M,192
sub76625-09090
main76625-19455-B1i199505-199704
W(COLORED TYPE),BLUISH GRAY ME,182
sub76625-09090
main76625-19455-B2i199605-199704
W(COLORED TYPE),SILVER ME,199
sub76625-09090
main76625-19455-D1i199205-199704
W(COLORED TYPE),SUPER RED 2,3E5
sub76625-09090
main76625-19455-D2i199210-199704
W(COLORED TYPE),RED MICA M,3K4
sub76625-09090
main76625-19455-D3i199210-199305
W(COLORED TYPE),ROSE GRAPHITE MI ME,3K5
sub76625-09090
main76625-19455-D4i199210-199505
W(COLORED TYPE),LT BEIGE ME,3K9
sub76625-09090
main76625-19455-G1i199305-199505
W(COLORED TYPE),MD.GRAISHGREEN MC.GR,6N1
sub76625-09090
main76625-19455-G3i199505-199611
W(COLORED TYPE),MD.GREEN M.M,6P0
sub76625-09090
main76625-19455-G5i199611-199704
W(COLORED TYPE),GREEN MC.,6P6
sub76625-09090
main76625-19455-H1i199505-199704
W(COLORED TYPE),TURQUOISE M.M,746
sub76625-09090
main76625-19455-J0i199205-199405
W(COLORED TYPE),LIGHT BLUE M M,8J6
sub76625-09090
main76625-19455-J1i199210-199405
W(COLORED TYPE),DARK BLUE MICA M,8J7
sub76625-09090
main76625-19455-J2i199405-199505
W(COLORED TYPE),DARK BLUE MICA M.,8G5
sub76625-09090
main76625-19455-J3i199505-199605
W(COLORED TYPE),LT PURPLISH BLUE M.M,8K1
sub76625-09090
main76625-19455-J4i199505-199704
W(COLORED TYPE),DARK BLUE MC.,8K8
sub76625-09090
main76625-19455-J5i199605-199704
W(COLORED TYPE),STRONG BLUE M,8B6
sub76625-09090
main76625-19495-A0i199205-199704
W(COLORED TYPE),SUPER WHITE 2,040
main76625-19495-B0i199205-199505
W(COLORED TYPE),DARK BLUEISH GRAY M,183
main76625-19495-B1i199205-199505
W(COLORED TYPE),SILVER MICA M,192
main76625-19495-B2i199505-199704
W(COLORED TYPE),BLUISH GRAY ME,182
main76625-19495-B4i199605-199704
W(COLORED TYPE),SILVER ME,199
main76625-19495-D0i199205-199704
W(COLORED TYPE),SUPER RED 2,3E5
main76625-19495-D1i199205-199704
W(COLORED TYPE),RED MICA M,3K4
main76625-19495-D2i199205-199505
W(COLORED TYPE),LIGHT BEIGE M,3K9
main76625-19495-G0i199205-199505
W(COLORED TYPE),GRAYISH GREEN M,6M3
main76625-19495-G1i199405-199505
W(COLORED TYPE),MD.GRAISHGREEN MC.GR,6N1
main76625-19495-G2i199505-199611
W(COLORED TYPE),MD.GREEN M.M,6P0
main76625-19495-G3i199611-199704
W(COLORED TYPE),GREEN M.M,6P6
main76625-19495-H0i199505-199704
W(COLORED TYPE),TURQUOISE M.M,746
main76625-19495-J0i199205-199405
W(COLORED TYPE),DARK BLUE MICA M,8J7
main76625-19495-J1i199205-199405
W(COLORED TYPE),LIGHT BLUE M.M,8J6
main76625-19495-J2i199505-199704
W(COLORED TYPE),DARK BLUE MC,8K8
main76625-19495-J3i199605-199704
W(COLORED TYPE),STRONG BLUE M,8B6
main76625-19505i199205-199704
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76626-19445i199205-199704
main76626-19455-03i199205-199505
W(COLORED TYPE),DARK BLUEISH GRAY M,183
sub76626-09090
main76626-19455-04i199205-199210
W(COLORED TYPE),DARK BLUE MICA M,8J7
sub76626-09090
main76626-19455-05i199205-199210
W(COLORED TYPE),LIGHT BEIGE M,3K9
sub76626-09090
main76626-19455-07i199205-199505
W(COLORED TYPE),GRAYISH GREEN M,6M3
sub76626-09090
main76626-19455-08i199205-199210
W(COLORED TYPE),SUPER WHITE 2,040
sub76626-09090
main76626-19455-12i199205-199210
W(COLORED TYPE),RED MICA M,3K4
sub76626-09090
main76626-19455-13i199205-199210
W(COLORED TYPE),SILVER MICA M,192
sub76626-09090
main76626-19455-22i199205-199210
W(COLORED TYPE),ROSE MICA M.GRAPHITE,3K5
sub76626-09090
main76626-19455-A0i199210-199704
W(COLORED TYPE),SUPER WHITE 2,040
sub76626-09090
main76626-19455-B0i199210-199505
W(COLORED TYPE),SILVER MICA M,192
sub76626-09090
main76626-19455-B1i199505-199704
W(COLORED TYPE),BLUISH GRAY ME,182
sub76626-09090
main76626-19455-B2i199605-199704
W(COLORED TYPE),SILVER ME,199
sub76626-09090
main76626-19455-D1i199205-199704
W(COLORED TYPE),SUPER LED 2,3E5
sub76626-09090
main76626-19455-D2i199210-199704
W(COLORED TYPE),RED MICA M,3K4
sub76626-09090
main76626-19455-D3i199210-199305
W(COLORED TYPE),ROSE MICA M GRAPHITE,3K5
sub76626-09090
main76626-19455-D4i199210-199505
W(COLORED TYPE),LT BEIGE ME,3K9
sub76626-09090
main76626-19455-G1i199305-199505
W(COLORED TYPE),MD.GRAISHGREEN MC.GR,6N1
sub76626-09090
main76626-19455-G2i199505-199611
W(COLORED TYPE),MD.GREEN M.M,6P0
sub76626-09090
main76626-19455-G5i199611-199704
W(COLORED TYPE),GREEN MC.,6P6
sub76626-09090
main76626-19455-H1i199505-199704
W(COLORED TYPE),TURQUOISE M.M,746
sub76626-09090
main76626-19455-J0i199205-199405
W(COLORED TYPE),LIGHT BLUE M M,8J6
sub76626-09090
main76626-19455-J1i199210-199405
W(COLORED TYPE),DARK BLUE MICA M,8J7
sub76626-09090
main76626-19455-J2i199405-199505
W(COLORED TYPE),DARK BLUE MICA M.,8G5
sub76626-09090
main76626-19455-J3i199505-199605
W(COLORED TYPE),LT PURPLISH BLUE M.M,8K1
sub76626-09090
main76626-19455-J4i199505-199704
W(COLORED TYPE),DARK BLUE MC.,8K8
sub76626-09090
main76626-19455-J5i199605-199704
W(COLORED TYPE),STRONG BLUE M,8B6
sub76626-09090
main76626-19495-A0i199205-199704
W(COLORED TYPE),SUPER WHITE 2,040
main76626-19495-B0i199205-199505
W(COLORED TYPE),DARK BLUEISH GRAY M,183
main76626-19495-B1i199205-199505
W(COLORED TYPE),SILVER MICA M,192
main76626-19495-B2i199505-199704
W(COLORED TYPE),BLUISH GRAY ME,182
main76626-19495-B4i199605-199704
W(COLORED TYPE),SILVER ME,199
main76626-19495-D0i199205-199704
W(COLORED TYPE),SUPER RED 2,3E5
main76626-19495-D1i199205-199704
W(COLORED TYPE),RED MICA M,3K4
main76626-19495-D2i199205-199505
W(COLORED TYPE),LIGHT BEIGE M,3K9
main76626-19495-G0i199205-199505
W(COLORED TYPE),GARYISH GREEN M,6M3
main76626-19495-G1i199405-199505
W(COLORED TYPE),MD.GRAISHGREEN MC.GR,6N1
main76626-19495-G2i199505-199611
W(COLORED TYPE),MD.GREEN M.M,6P0
main76626-19495-G3i199611-199704
W(COLORED TYPE),GREEN M.M,6P6
main76626-19495-H0i199505-199704
W(COLORED TYPE),TURQUOISE M.M,746
main76626-19495-J0i199205-199405
W(COLORED TYPE),DARK BLUE MICA M,8J7
main76626-19495-J1i199205-199405
W(COLORED TYPE),LIGHT BLUE M.M,8J6
main76626-19495-J2i199505-199704
W(COLORED TYPE),DARK BLUE MC,8K8
main76626-19495-J3i199605-199704
W(COLORED TYPE),STRONG BLUE M,8B6
main76626-19505i199205-199704
9011906166
main90119-06166
9015960500
main90159-60500
9018905144
main90189-05144
9018906006
main90189-06006
9018906028
main90189-06028
9018906174
main90189-06174
9046709139
main90467-09139

12 parts on this diagram · 2 diagrams in section

MUDGUARD & SPOILER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
