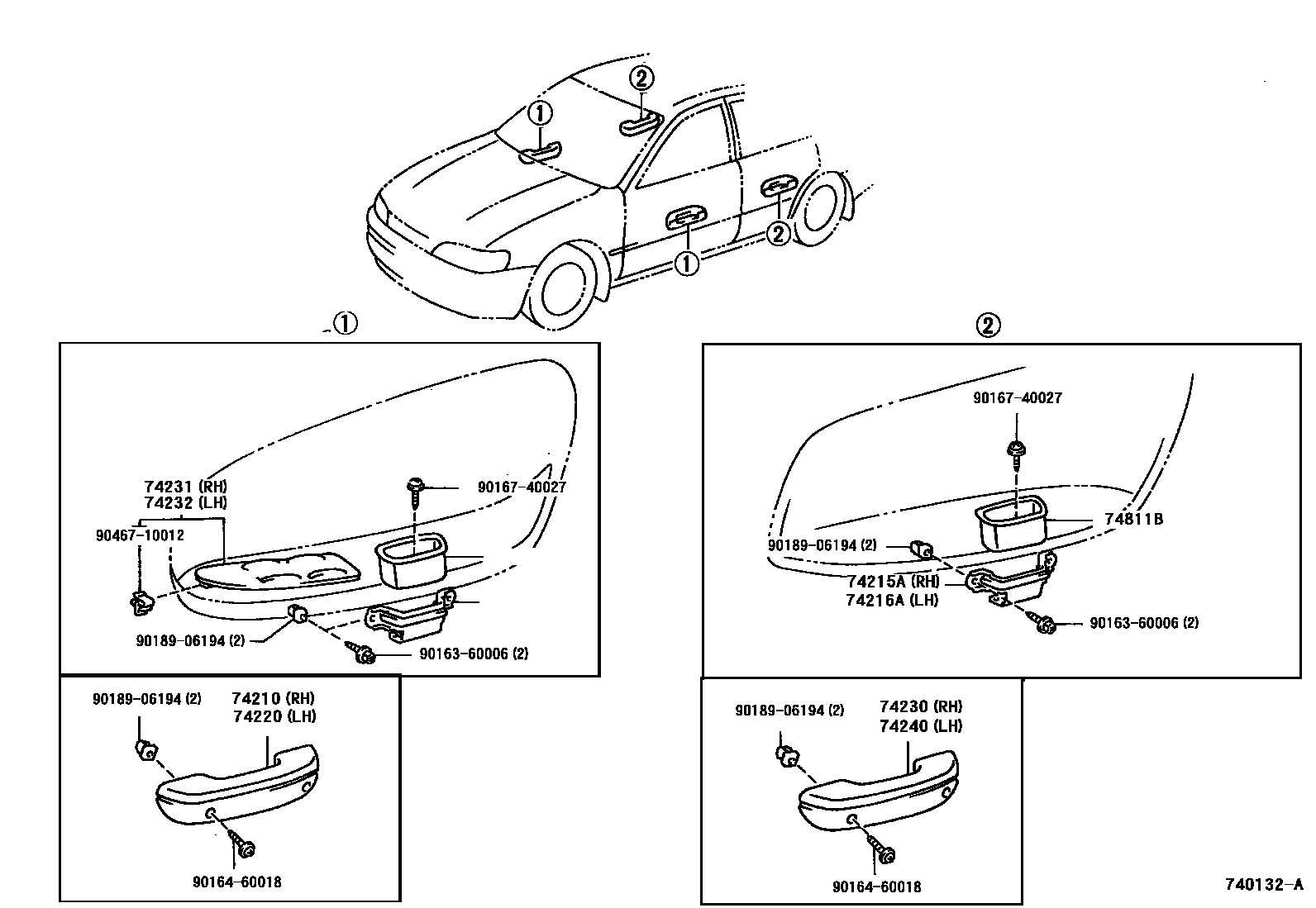

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR

74210ARMREST ASSY, FRONT, RH

main74210-16060-K0iEE101..SED..STD199205-199505

TAUPE,TRIM9#

sub74210-16060¥3,410

sub74210-16061¥3,420

main74210-16060-P0iCE100,EE101..STD199205-199704

SHADOW GRAY,TRIM1#

sub74210-16060¥3,410

sub74210-16061¥3,420

main74210-16060-W3iCE100,EE101..STD199205-199704

DARK BLUE,TRIM8#

sub74210-16060¥3,410

sub74210-16061¥3,420

74215ABASE, DOOR ARMREST RH

main74215-12050iAE10#,CE100,EE10#..GLI,XL,XLI¥500199205

74216ABASE, DOOR ARMREST, LH

main74215-12050iAE10#,CE100,EE10#..GLI,XL,XLI¥500199205

74220ARMREST ASSY, FRONT, LH

main74210-16060-K0iEE101..SED..STD199205-199505

TAUPE,TRIM9#

sub74210-16060¥3,410

sub74210-16061¥3,420

main74210-16060-P0iCE100,EE101..STD199205-199704

SHADOW GRAY,TRIM1#

sub74210-16060¥3,410

sub74210-16061¥3,420

main74210-16060-W3iCE100,EE101..STD199205-199704

DARK BLUE,TRIM8#

sub74210-16060¥3,410

sub74210-16061¥3,420

74230ARMREST ASSY, REAR, RH

main74210-16060-K0iEE101..SED..STD199205-199505

TAUPE,TRIM9#

sub74210-16060¥3,410

sub74210-16061¥3,420

main74210-16060-P0iCE100,EE101..STD199205-199704

SHADOW GRAY,TRIM1#

sub74210-16060¥3,410

sub74210-16061¥3,420

main74210-16060-W3iCE100,EE101..STD199205-199704

DARK BLUE,TRIM8#

sub74210-16060¥3,410

sub74210-16061¥3,420

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12130-K0iAE101,EE101..RHD..SED..GLI199205-199505

TAUPE,TRIM9#

sub74231-12131¥1,920

sub74231-12130¥1,440

main74231-12130-P0iAE101,EE101..RHD..GLI199205-199505

SHADOW GRAY,TRIM1#

sub74231-12131¥1,920

sub74231-12130¥1,440

main74231-12130-W3iAE101,EE101..RHD..GLI199205-199505

DARK BLUE,TRIM8#

sub74231-12131¥1,920

sub74231-12130¥1,440

main74231-12131-P0iAE101,EE101..RHD..SED..GLI199505-199704

W(*PW),SHADOW GRAY,TRIM1#

sub74231-12130¥1,440

main74231-12131-W3iAE101,EE101..RHD..SED..GLI199505-199704

W(*PW),BLUE,TRIM8#

sub74231-12130¥1,440

main74231-12170-B0iAE101..LHD;EE101..LHD..SED..(GLI,XLI)199205-199704

SHADOW GRAY,TRIM1#

sub74231-12170¥1,950

main74231-12170-J0iAE10#,CE100,EE101..LHD..(GLI,XL,XLI)199205-199704

DARK BLUE,TRIM8#

sub74231-12170¥1,950

main74231-12170-K0iAE101,EE101..LHD..SED..(GLI,XLI)199205-199505

TAUPE,TRIM9#

sub74231-12170¥1,950

main74231-12220-B0iAE101,CE100,EE101..RHD199505-199704

SHADOW GRAY,TRIM1#

main74231-12220-J0iAE101,CE100,EE101..RHD199505-199704

DARK BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12110-K0iAE101,EE101..RHD..SED..GLI199205-199505

TAUPE,TRIM9#

sub74232-12110¥1,940

main74232-12110-P0iAE101,EE101..RHD..GLI199205-199704

SHADOW GRAY,TRIM1#

sub74232-12110¥1,940

main74232-12110-W3iAE101,CE100,EE101..RHD199205-199704

DARK BLUE,TRIM8#

sub74232-12110¥1,940

main74232-12150-B0iAE101,EE101..LHD..GLI;AE10#,CE100,EE101..LHD..WG..(XL,XLI)199505-199704

W/O(REAR *PW),SHADOW GRAY,TRIM1#

main74232-12150-J0iAE10#,CE100,EE101..LHD..(GLI,XL,XLI)199505-199704

W/O(REAR *PW),DARKBLUE,TRIM8#

main74232-12160-B0iAE101,CE100,EE101..LHD..(GLI,XL,XLI)199205-199505

SHADOW GRAY,TRIM1#

sub74232-12160¥1,950

main74232-12160-J0iAE101,CE100,EE101..LHD..(GLI,XL,XLI)199205-199505

DARK BLUE,TRIM8#

sub74232-12160¥1,950

main74232-12160-K0iAE101,EE101..LHD..GLI199205-199505

TAUPE,TRIM9#

sub74232-12160¥1,950

main74232-12161-B0iAE101,EE101..LHD..GLI;AE10#,CE100,EE101..LHD..WG..(XL,XLI)199505-199704

W(REAR *PW),SHADOW GRAY,TRIM1#

sub74232-12160¥1,950

main74232-12161-B0iAE101,CE100,EE101..LHD..SED..(XL,XLI)199505-199605

SHADOW GRAY,TRIM1#

sub74232-12160¥1,950

main74232-12161-J0iAE101,CE100,EE101..LHD..SED..(XL,XLI)199505-199605

DARK BLUE,TRIM8#

sub74232-12160¥1,950

main74232-12161-J0iAE10#,CE100,EE101..LHD..(GLI,XL,XLI)199505-199704

W(REAR *PW),DARK BLUE,TRIM8#

sub74232-12160¥1,950

74240ARMREST ASSY, REAR, LH

main74210-16060-K0iEE101..SED..STD199205-199505

TAUPE,TRIM9#

sub74210-16060¥3,410

sub74210-16061¥3,420

main74210-16060-P0iCE100,EE101..STD199205-199704

SHADOW GRAY,TRIM1#

sub74210-16060¥3,410

sub74210-16061¥3,420

main74210-16060-W3iCE100,EE101..STD199205-199704

DARK BLUE,TRIM8#

sub74210-16060¥3,410

sub74210-16061¥3,420

74811BHANDLE, DOOR PULL

main74811-12060-K0iAE101,EE101..SED..GLI199205-199505

TAUPE,TRIM9#

sub74811-12060¥630

main74811-12060-P0iAE10#,CE100,EE10#..GLI,XL,XLI199205-199704

SHADOW GRAY,TRIM1#

sub74811-12060¥630

main74811-12060-W3iAE10#,CE100,EE10#..GLI,XL,XLI199205-199704

DARK BLUE,TRIM8#

sub74811-12060¥630

9016360006

main90163-60006¥120

9016460018

main90164-60018¥70

9016740027

main90167-40027¥120

9018906194

main90189-06194¥130

9046710012

main90467-10012¥130

14 parts on this diagram · 2 diagrams in section
