EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

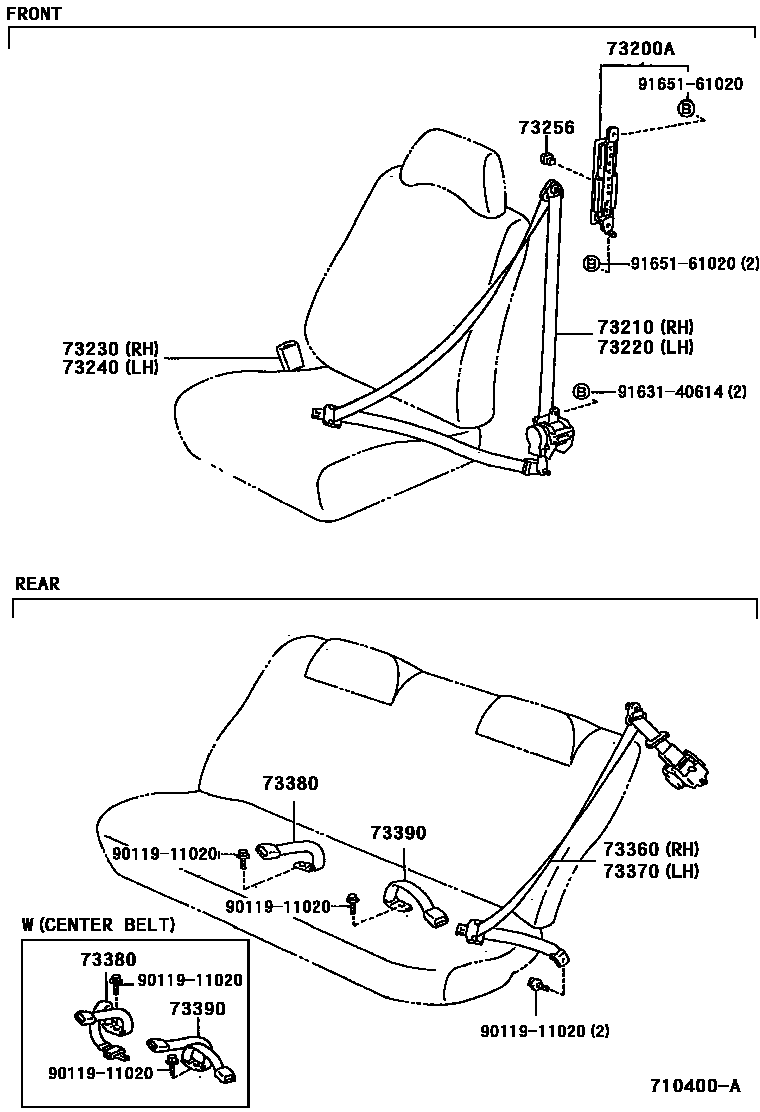

Parts diagram
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-12020-K0i199205-199505
TAUPE,TRIM9#
sub73200-12020
main73200-12020-P0i199205-199704
SHADOW GRAY,TRIM1#
sub73200-12020
main73200-12020-W3i199205-199704
DARK BLUE,TRIM8#
sub73200-12020
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-12880-B0i199205-199211
SHADOW GRAY,TRIM1#
sub73210-12881
main73210-12880-J0i199205-199211
DARK BLUE,TRIM8#
sub73210-12881
main73210-12880-K0i199205-199211
TAUPE,TRIM9#
sub73210-12881
main73210-12881-B0i199211-199305
SHADOW GRAY,TRIM1#
sub73210-12882
main73210-12881-J0i199211-199305
DARK BLUE,TRIM8#
sub73210-12882
main73210-12881-K1i199211-199305
TAUPE,TRIM9#
sub73210-12882
main73210-12882-B0i199305-199505
SHADOW GRAY,TRIM1#
sub73210-12882
main73210-12882-J0i199305-199505
DARK BLUE,TRIM8#
sub73210-12882
main73210-12882-K1i199305-199505
TAUPE,TRIM9#
sub73210-12882
main73210-1A100-B1i199505-199509
SHADOW GRAY,TRIM1#
sub73210-1A101
main73210-1A100-J1i199505-199509
DARK BLUE,TRIM8#
sub73210-1A101
main73210-1A101-B1i199509
SHADOW GRAY,TRIM1#
main73210-1A101-J1i199509
DARK BLUE,TRIM8#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-12770-B0i199205-199211
SHADOW GRAY,TRIM1#
sub73220-12771
main73220-12770-J0i199205-199211
DARK BLUE,TRIM8#
sub73220-12771
main73220-12770-K0i199205-199211
TAUPE,TRIM9#
sub73220-12771
main73220-12771-B0i199211-199305
SHADOW GRAY,TRIM1#
sub73220-12772
main73220-12771-J0i199211-199305
DARK BLUE,TRIM8#
sub73220-12772
main73220-12771-K1i199211-199305
TAUPE,TRIM9#
sub73220-12772
main73220-12772-B0i199305-199505
SHADOW GRAY,TRIM1#
sub73220-12772
main73220-12772-J0i199305-199505
DARK BLUE,TRIM8#
sub73220-12772
main73220-12772-K1i199305-199505
TAUPE,TRIM9#
sub73220-12772
main73220-12880-B1i199505-199509
SHADOW GRAY,TRIM1#
sub73220-12881
main73220-12880-J1i199505-199509
DARK BLUE,TRIM8#
sub73220-12881
main73220-12881-B1i199509
SHADOW GRAY,TRIM1#
main73220-12881-J1i199509
DARK BLUE,TRIM8#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-12480-B0i199205-199505
SHADOW GRAY,TRIM1#
sub73230-12480
main73230-12480-J0i199205-199505
DARK BLUE,TRIM8#
sub73230-12480
main73230-12480-K0i199205-199505
TAUPE,TRIM9#
sub73230-12480
main73230-12631-B0i199505
SHADOW GRAY,TRIM1#
main73230-12631-J0i199505
DARK BLUE,TRIM8#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-12480-B0i199205-199505
SHADOW GRAY,TRIM1#
sub73230-12480
main73230-12480-J0i199205-199505
DARK BLUE,TRIM8#
sub73230-12480
main73230-12480-K0i199205-199505
TAUPE,TRIM9#
sub73230-12480
main73230-12631-B0i199505
SHADOW GRAY,TRIM1#
main73230-12631-J0i199505
DARK BLUE,TRIM8#
73256KNOB, SHOULDER BELT ANCHOR ADJUST
main73256-12010-03i199205-199704
SHADOW GRAY,TRIM1#
sub73256-12010
main73256-12010-K0i199205-199505
TAUPE,TRIM9#
sub73256-12010
main73256-12010-W3i199205-199704
DARK BLUE,TRIM8#
sub73256-12010
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-12583-B1i199505
SHADOW GRAY,TRIM1#
main73360-12583-J1i199505
DARK BLUE,TRIM8#
main73360-12590-B0i199205-199305
SHADOW GRAY,TRIM1#
sub73360-12591
main73360-12590-J0i199205-199305
DARK BLUE,TRIM8#
sub73360-12591
main73360-12590-K0i199205-199305
TAUPE,TRIM9#
sub73360-12591
main73360-12591-B1i199305-199505
SHADOW GRAY,TRIM1#
sub73360-12591
main73360-12591-J1i199305-199505
DARK BLUE,TRIM8#
sub73360-12591
main73360-12591-K1i199305-199505
TAUPE,TRIM9#
sub73360-12591
main73360-13180-B1i199505
SHADOW GRAY,TRIM1#
sub73360-13180
main73360-13180-J1i199505
DARK BLUE,TRIM8#
sub73360-13180
main73360-13240-B0i199205-199305
SHADOW GRAY,TRIM1#
sub73360-13240
main73360-13240-J0i199205-199305
DARK BLUE,TRIM8#
sub73360-13240
main73360-13241-B0i199305-199505
SHADOW GRAY,TRIM1#
sub73360-13240
main73360-13241-J0i199305-199505
DARK BLUE,TRIM8#
sub73360-13240
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-12373-B1i199505
SHADOW GRAY,TRIM1#
main73370-12373-J1i199505
DARK BLUE,TRIM8#
main73370-12380-B0i199205-199305
SHADOW GRAY,TRIM1#
sub73370-12381
main73370-12380-J0i199205-199305
DARK BLUE,TRIM8#
sub73370-12381
main73370-12380-K0i199205-199305
TAUPE,TRIM9#
sub73370-12381
main73370-12381-B1i199305-199505
SHADOW GRAY,TRIM1#
sub73370-12381
main73370-12381-J1i199305-199505
DARK BLUE,TRIM8#
sub73370-12381
main73370-12381-K1i199305-199505
TAUPE,TRIM9#
sub73370-12381
main73370-13120-B1i199508
SHADOW GRAY,TRIM1#
sub73370-13120
main73370-13120-J1i199508
DARK BLUE,TRIM8#
sub73370-13120
main73370-13162-B0i199505-199508
SHADOW GRAY,TRIM1#
sub73370-13162
main73370-13162-J0i199505-199508
DARK BLUE,TRIM8#
sub73370-13162
main73370-13162-K0i199505-199508
TAUPE,TRIM9#
sub73370-13162
main73370-13170-B0i199205-199305
SHADOW GRAY,TRIM1#
sub73370-13170
main73370-13170-J0i199205-199305
DARK BLUE,TRIM8#
sub73370-13170
main73370-13171-B0i199305-199505
SHADOW GRAY,TRIM1#
sub73370-13170
main73370-13171-J0i199305-199505
DARK BLUE,TRIM8#
sub73370-13170
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-12340-K0i199205-199505
W/O(CENTER SEAT BELT),TAUPE,TRIM9#
sub73380-12340
main73380-12340-P0i199205-199505
W/O(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73380-12340
main73380-12340-W3i199205-199505
W/O(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73380-12340
main73380-12360-B0i199205-199505
W/O(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73380-12360
main73380-12360-J0i199205-199505
W/O(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73380-12360
main73470-12021-B0i199505-199704
SHADOW GRAY,TRIM1#
sub73470-12021
main73470-12021-J0i199505-199704
DARK BLUE,TRIM8#
sub73470-12021
main73470-12030-B0i199205-199309
W(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73470-12030
main73470-12030-J0i199205-199309
W(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73470-12030
main73470-12030-K0i199205-199309
W(CENTER SEAT BELT),TAUPE,TRIM9#
sub73470-12030
main73470-12031-B0i199309-199505
W(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
main73470-12031-J0i199309-199505
W(CENTER SEAT BELT),DARK BLUE,TRIM8#
main73470-12031-K0i199309-199505
W(CENTER SEAT BELT),TAUPE,TRIM9#
main73470-12050-B0i199205-199309
W(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73470-12050
main73470-12050-J0i199205-199309
W(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73470-12050
main73470-12051-B0i199309-199505
W(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73470-12051
main73470-12051-J0i199309-199505
W(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73470-12051
main73470-12052-B0i199505-199704
SHADOW GRAY,TRIM1#
sub73470-12052
main73470-12052-J0i199505-199704
DARK BLUE,TRIM8#
sub73470-12052
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73380-12340-K0i199205-199505
W/O(CENTER SEAT BELT),TAUPE,TRIM9#
sub73380-12340
main73380-12340-P0i199205-199505
W/O(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73380-12340
main73380-12340-W3i199205-199505
W/O(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73380-12340
main73380-12360-B0i199205-199505
W/O(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73380-12360
main73380-12360-J0i199205-199505
W/O(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73380-12360
main73480-12021-B0i199505-199704
SHADOW GRAY,TRIM1#
main73480-12021-J0i199505-199704
DARK BLUE,TRIM8#
main73480-12030-B0i199205-199309
W(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73480-12030
main73480-12030-J0i199205-199309
W(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73480-12030
main73480-12030-K0i199205-199309
W(CENTER SEAT BELT),TAUPE,TRIM9#
sub73480-12030
main73480-12031-B0i199309-199505
W(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73480-12031
main73480-12031-J0i199309-199505
W(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73480-12031
main73480-12031-K0i199309-199505
W(CENTER SEAT BELT),TAUPE,TRIM9#
sub73480-12031
main73480-12050-B0i199205-199309
W(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73480-12050
main73480-12050-J0i199205-199309
W(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73480-12050
main73480-12051-B0i199309-199505
W(CENTER SEAT BELT),SHADOW GRAY,TRIM1#
sub73480-12070
sub73480-12051
main73480-12051-J0i199309-199505
W(CENTER SEAT BELT),DARK BLUE,TRIM8#
sub73480-12070
sub73480-12051
main73480-12052-B0i199505-199704
SHADOW GRAY,TRIM1#
sub73480-12090
main73480-12052-J0i199505-199704
DARK BLUE,TRIM8#
sub73480-12090
9011911020
main90119-11020
9163140614
main91631-40614
9165161020
main91651-61020

13 parts on this diagram · 2 diagrams in section
