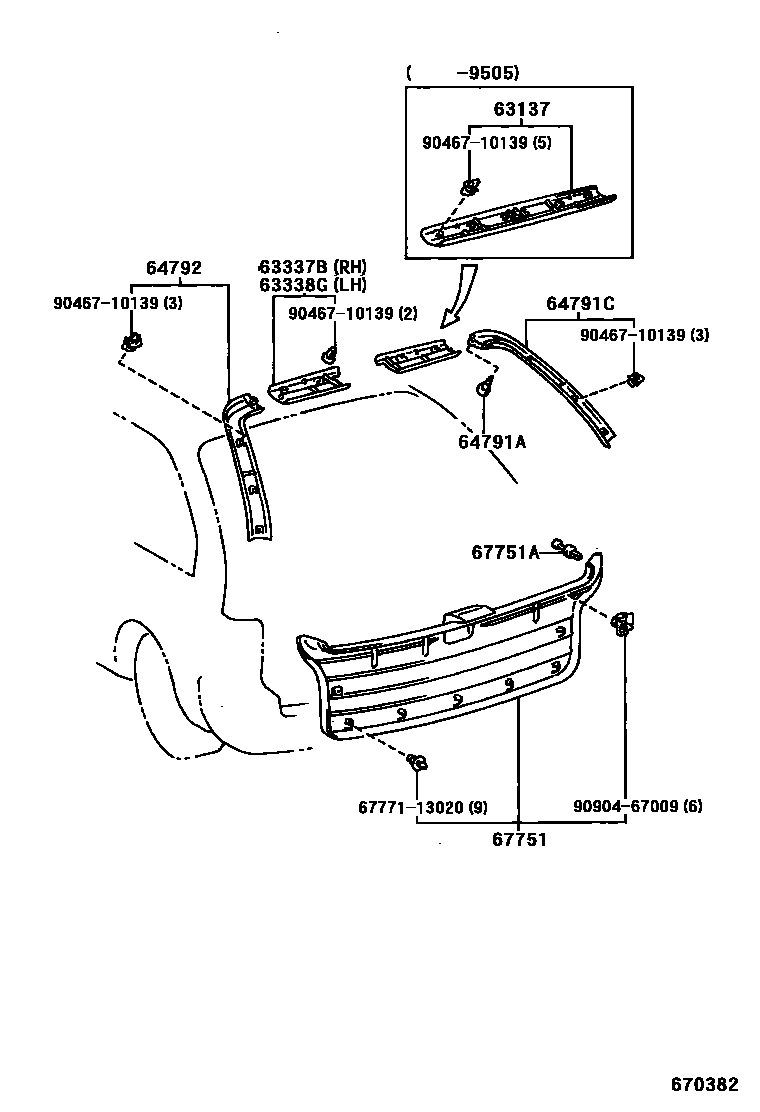

BACK DOOR PANEL & GLASS

0001 1 0002 1

63137COVER, BACK DOOR OPENING UPPER, INNER

main63137-13010-B0iAE101,CE100,EE10#..WG199205-199505

SHADOW GRAY,TRIM1#

main63137-13010-J0iAE101,CE100,EE10#..WG199205-199505

DARK BLUE,TRIM8#

63337BCOVER, BACK DOOR OPENING FRAME, UPPER RH

main63337-13020-B0iAE10#,CE100,EE101..WG199505

SHADOW GRAY,TRIM1#

main63337-13020-J0iAE10#,CE100,EE101..WG199505

DARK BLUE,TRIM8#

63338GCOVER, BACK DOOR OPENING FRAME, UPPER LH

main63338-13020-B0iAE10#,CE100,EE101..WG199505

SHADOW GRAY,TRIM1#

main63338-13020-J0iAE10#,CE100,EE101..WG199505

DARK BLUE,TRIM8#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07041-P0iAE10#,CE100,EE10#..WG199210-199704

SHADOW GRAY,TRIM1#

sub90467-07041¥140

main90467-07076-03iAE101,CE100,EE10#..WG199205-199210

SHADOW GRAY,TRIM1#

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

main90467-07076-W3iAE10#,CE100,EE10#..WG199205-199704

DARK BLUE,TRIM8#

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

64791CCOVER, BACK DOOR TRIM, RH

main64791-13030-P0iAE101,CE100,EE10#..WG199205-199206

SHADOW GRAY,TRIM1#

sub64791-13040¥2,370

main64791-13030-W3iAE101,CE100,EE10#..WG199205-199206

DARK BLUE,TRIM8#

sub64791-13040¥2,370

main64791-13040-B0iAE10#,CE100,EE10#..WG199206

SHADOW GRAY,TRIM1#

main64791-13040-J0iAE10#,CE100,EE10#..WG199206

DARK BLUE,TRIM8#

64792COVER, BACK DOOR TRIM, LH

main64792-13010-P0iAE101,CE100,EE10#..WG199205-199206

SHADOW GRAY,TRIM1#

sub64792-13020¥2,370

main64792-13010-W3iAE101,CE100,EE10#..WG199205-199206

DARK BLUE,TRIM8#

sub64792-13020¥2,370

main64792-13020-B0iAE10#,CE100,EE10#..WG199206

SHADOW GRAY,TRIM1#

sub64792-13020¥2,370

main64792-13020-J0iAE10#,CE100,EE10#..WG199206

DARK BLUE,TRIM8#

sub64792-13020¥2,370

67751BOARD, BACK DOOR TRIM

main67751-13140-P0iAE101,CE100,EE10#..WG199205-199206

SHADOW GRAY,TRIM1#

sub67751-13150¥14,700

sub64791-13040¥2,370

sub64792-13020¥2,370

sub90467-05062¥140

main67751-13140-W3iAE101,CE100,EE10#..WG199205-199206

DARK BLUE,TRIM8#

sub67751-13150¥14,700

sub64791-13040¥2,370

sub64792-13020¥2,370

sub90467-05062¥140

main67751-13150-B0iAE10#,CE100,EE10#..WG199206-199704

SHADOW GRAY,TRIM1#

sub67751-13150¥14,700

main67751-13150-J0iAE10#,CE100,EE10#..WG199206-199704

DARK BLUE,TRIM8#

sub67751-13150¥14,700

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-05062-B0iAE10#,CE100,EE101..WG199206-199704

SHADOW GRAY,TRIM1#

sub90467-05062¥140

main90467-05062-J1iAE10#,CE100,EE10#..WG199206-199704

DARK BLUE,TRIM8#

sub90467-05062¥140

6777113020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-13020¥140

9046710139

main90467-10139¥140

9090467009

main90904-67009¥140

11 parts on this diagram · 2 diagrams in section
