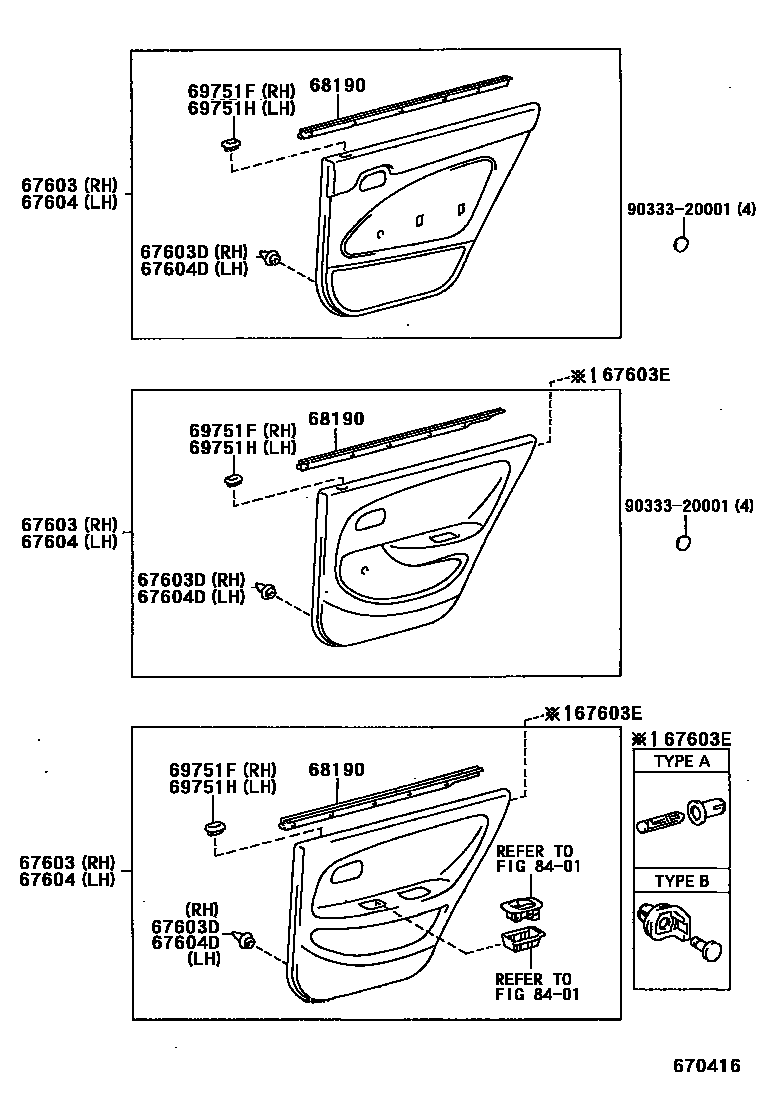

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-13210-B0iAE101,CE100,EE10#..WG..(XL,XLI)199205-199401

SHADOW GRAY,TRIM1#

main67630-13210-J0iAE101,CE100,EE10#..WG..(XL,XLI)199205-199401

DARK BLUE,TRIM8#

main67630-13230-B0iEE101..WG..GLI199205-199505

W(*PW),SHADOW GRAY,TRIM1#

main67630-13230-J1iEE101..WG..GLI199205-199505

W(*PW),DARK BLUE,TRIM8#

main67630-13232-B1iAE101,CE100,EE101..LHD..WG..(XL,XLI)199605-199704

W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-13232-J3iAE101,CE100,EE101..LHD..WG..(XL,XLI)199605-199704

W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW),BLUE/GRAY,TRIM8#

main67630-13320-B0iEE101..WG..GLI199205-199505

SHADOW GRAY,TRIM1#

main67630-13320-J1iEE101..WG..GLI199205-199505

DARK BLUE,TRIM8#

main67630-13321-B1iAE101,CE100,EE101..WG..(XL,XLI)199605-199704

W(FULL FABRIC GL(BG**/QR**)),SHADOW GRAY,TRIM1#

main67630-13321-B1iEE101..WG..GLI199505-199704

SHADOW GRAY,TRIM1#

main67630-13321-J2iEE101..WG..GLI199505-199704

BLUE/GRAY,TRIM8#

main67630-13321-J2iAE101,CE100,EE101..WG..(XL,XLI)199605-199704

W(FULL FABRIC GL(BG**/QR**)),BLUE/GRAY,TRIM8#

main67630-13330-B0iCE100,EE101..WG..STD199205-199704

SHADOW GRAY,TRIM1#

main67630-13330-J0iCE100,EE101..WG..STD199205-199704

DARK BLUE,TRIM8#

main67630-13430-B0iAE101,CE100,EE10#..WG..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

main67630-13430-J0iAE101,CE100,EE10#..WG..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

main67630-13431-B1iAE10#,CE100,EE101..WG..(XL,XLI)199505-199704

SHADOW GRAY,TRIM1#

main67630-13431-J1iAE10#,CE100,EE101..WG..(XL,XLI)199505-199704

BLUE/GRAY,TRIM8#

main67630-1E240-B0iEE101..LHD..SED..XLI199205-199401

W(*PW),SHADOW GRAY,TRIM1#

main67630-1E240-B0iAE101..SED..XLI199205-199401

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1E240-J0iAE101..SED..XLI199205-199401

W(*PW),DARK BLUE,TRIM8#

main67630-1E240-J0iEE101..LHD..SED..XLI199205-199401

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-1E240-K0iAE101..SED..XLI199205-199401

W(*PW & *EL),TAUPE,TRIM9#

main67630-1E240-K0iEE101..LHD..SED..XLI199205-199401

W(*PW),TAUPE,TRIM9#

main67630-1E250-B0iAE101,EE101..SED..GLI199205-199505

SHADOW GRAY,TRIM1#

main67630-1E250-J1iAE101,EE101..SED..GLI199205-199505

DARK BLUE,TRIM8#

main67630-1E250-K0iAE101,EE101..SED..GLI199205-199505

TAUPE,TRIM9#

main67630-1E251-B1iAE101,CE100,EE101..SED..(XL,XLI)199605-199704

W(FULL FABRIC GL(BG**/QR**)),SHADOW GRAY,TRIM1#

main67630-1E251-B1iAE101,EE101..SED..GLI199505-199704

SHADOW GRAY,TRIM1#

main67630-1E251-J2iAE101,CE100,EE101..SED..(XL,XLI)199605-199704

W(FULL FABRIC GL(BG**/QR**)),BLUE/GRAY,TRIM8#

main67630-1E251-J2iAE101,EE101..SED..GLI199505-199704

BLUE/GRAY,TRIM8#

main67630-1E280-B0iAE101..GLI199205-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1E280-B0iEE101..SED..GLI199205-199505

W(*PW),SHADOW GRAY,TRIM1#

main67630-1E280-J1iEE101..SED..GLI199205-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-1E280-J1iAE101..GLI199205-199505

W(*PW),DARK BLUE,TRIM8#

main67630-1E280-K0iEE101..SED..GLI199205-199505

W(*PW),TAUPE,TRIM9#

main67630-1E280-K0iEE101..SED..GLI199205-199505

W(*PW & *EL),TAUPE,TRIM9#

main67630-1E281-B1iAE101,EE101..SED..GLI199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main67630-1E281-B1iAE101,CE100,EE101..LHD..SED..(XL,XLI)199605-199704

W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-1E281-J2iAE101,CE100,EE101..LHD..SED..(XL,XLI)199605-199704

W(FULL FABRIC GL(BG**/QR**) & POWER WINDOW),BLUE/GRAY,TRIM8#

main67630-1E281-J2iAE101,EE101..SED..GLI199505-199704

W(*PW),BLUE/GRAY,TRIM8#

main67630-1E330-B0iEE101..SED..STD199205-199704

SHADOW GRAY,TRIM1#

main67630-1E330-J0iEE101..SED..STD199205-199704

DARK BLUE,TRIM8#

main67630-1E330-K0iEE101..SED..STD199205-199505

TAUPE,TRIM9#

main67630-1E570-B0iAE101,CE100,EE10#..SED..(XL,XLI)199205-199401

SHADOW GRAY,TRIM1#

main67630-1E570-J0iAE101,CE100,EE10#..SED..(XL,XLI)199205-199401

DARK BLUE,TRIM8#

main67630-1E570-K0iAE101,CE100,EE10#..SED..(XL,XLI)199205-199401

TAUPE,TRIM9#

main67630-1E571-B1iAE101,CE100,EE10#..SED..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

main67630-1E571-J1iAE101,CE100,EE10#..SED..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

main67630-1E572-B2iAE101,CE100,EE10#..SED..(XL,XLI)199505-199704

SHADOW GRAY,TRIM1#

main67630-1E572-J2iAE101,CE100,EE10#..SED..(XL,XLI)199505-199704

BLUE / GRAY,TRIM8#

main67630-1H230-B0iCE100,EE101..LHD..SED..(XL,XLI)199401-199505

W(*PW),SHADOW GRAY,TRIM1#

main67630-1H230-B0iAE101..SED..XLI199401-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67630-1H230-J0iCE100,EE101..LHD..SED..(XL,XLI)199401-199505

W(*PW),DARK BLUE,TRIM8#

main67630-1H230-J0iAE101..SED..XLI199401-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67630-1H231-B1iAE101,CE100,EE101..LHD..SED..(XL,XLI)199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main67630-1H231-J1iAE101,CE100,EE101..LHD..SED..(XL,XLI)199505-199704

W(*PW),BLUE / GRAY,TRIM8#

main67630-1H250-B0iAE101,CE100,EE101..LHD..WG..(XL,XLI)199401-199505

W(*PW),SHADOW GRAY,TRIM1#

main67630-1H250-J0iAE101,CE100,EE101..LHD..WG..(XL,XLI)199401-199505

W(*PW),DARK BLUE,TRIM8#

main67630-1H251-B1iAE10#,CE100,EE101..LHD..WG..(XL,XLI)199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main67630-1H251-J1iAE10#,CE100,EE101..LHD..WG..(XL,XLI)199505-199704

W(*PW),BLUE / GRAY,TRIM8#

main67630-1H470-B0iAE101,CE100,EE101..LHD..WG..(XL,XLI)199412-199504

95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#

main67630-1H480-B0iAE101,CE100,EE101..LHD..WG..(XL,XLI)199412-199504

95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#

main67630-1H490-B0iAE101,CE100,EE101..LHD..SED..(XL,XLI)199412-199504

95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#

main67630-1H510-B0iAE101,CE100,EE101..LHD..SED..(XL,XLI)199412-199504

95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12030iEE101..SED..STD199310-199605

YELLOWISH GREEN

main67771-12050iAE10#,CE100,EE10#..GLI,XL,XLI199401

main67771-12070iCE100,EE101..STD199205-199401

WHITE

main67771-13030iCE100,EE101..WG..STD199208

BROWN

main67771-16080iEE101..WG..GLI199205

NATURAL

main67771-16160iCE100,EE101..WG..STD199205

ORANGE

main67771-16170iCE100,EE101..STD199401

SABLE

main67771-28020iAE101,CE100,EE10#..GLI,XL,XLI199205-199401

main90467-08179iCE100,EE101..WG..STD199205-199605

YELLOW

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-03iAE101,CE100,EE10#..GLI,XL,XLI199205-199309

SHADOW GRAY,TRIM1#

sub90467-07066

main90467-07066-J0iAE10#,CE100,EE10#..GLI,XL,XLI199205-199704

DARK BLUE,TRIM8#

sub90467-07066

main90467-07066-K0iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199505

TAUPE,TRIM9#

sub90467-07066

main90467-07066-P0iAE10#,CE100,EE10#..GLI,XL,XLI199309-199704

SHADOW GRAY,TRIM1#

sub90467-07066

main90467-07066-P0iAE10#,CE100,EE10#..GLI,XL,XLI199309-199704

SHADOW GRAY,TYPE A

sub90467-07066

main90467-09141iAE10#,CE100,EE10#..GLI,XL,XLI199205-199704

TYPE B

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-13210-B0iAE101,CE100,EE10#..WG..(XL,XLI)199205-199401

SHADOW GRAY,TRIM1#

main67640-13210-J0iAE101,CE100,EE10#..WG..(XL,XLI)199205-199401

DARK BLUE,TRIM8#

main67640-13230-B0iEE101..WG..GLI199205-199505

W(*PW),SHADOW GRAY,TRIM1#

main67640-13230-J1iEE101..WG..GLI199205-199505

W(*PW),DARK BLUE,TRIM8#

main67640-13232-B1iAE101,CE100,EE101..LHD..WG..(XL,XLI)199605-199704

W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-13232-J3iAE101,CE100,EE101..LHD..WG..(XL,XLI)199605-199704

W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW),BLUE/GRAY,TRIM8#

main67640-13320-B0iEE101..WG..GLI199205-199505

SHADOW GRAY,TRIM1#

main67640-13320-J1iEE101..WG..GLI199205-199505

DARK BLUE,TRIM8#

main67640-13321-B1iAE101,CE100,EE101..WG..(XL,XLI)199605-199704

W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#

main67640-13321-B1iEE101..WG..GLI199505-199704

SHADOW GRAY,TRIM1#

main67640-13321-J2iEE101..WG..GLI199505-199704

BLUE/GRAY,TRIM8#

main67640-13321-J2iAE101,CE100,EE101..WG..(XL,XLI)199605-199704

W(FULL FABRIC GL(BA**/BB**)),BLUE/GRAY,TRIM8#

main67640-13330-B0iCE100,EE101..WG..STD199205-199704

SHADOW GRAY,TRIM1#

main67640-13330-J0iCE100,EE101..WG..STD199205-199704

DARK BLUE,TRIM8#

main67640-13430-B0iAE101,CE100,EE10#..WG..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

main67640-13430-J0iAE101,CE100,EE10#..WG..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

main67640-13431-B1iAE10#,CE100,EE101..WG..(XL,XLI)199505-199704

SHADOW GRAY,TRIM1#

main67640-13431-J1iAE10#,CE100,EE101..WG..(XL,XLI)199505-199704

BLUE/GRAY,TRIM8#

main67640-1E240-B0iAE101..SED..XLI199205-199401

W(*PW),SHADOW GRAY,TRIM1#

main67640-1E240-B0iEE101..LHD..SED..XLI199205-199401

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-1E240-J0iAE101..SED..XLI199205-199401

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-1E240-J0iEE101..LHD..SED..XLI199205-199401

W(*PW),DARK BLUE,TRIM8#

main67640-1E240-K0iAE101..SED..XLI199205-199401

W(*PW),TAUPE,TRIM9#

main67640-1E240-K0iEE101..LHD..SED..XLI199205-199401

W(*PW & *EL),TAUPE,TRIM9#

main67640-1E250-B0iAE101,EE101..SED..GLI199205-199505

SHADOW GRAY,TRIM1#

main67640-1E250-J1iAE101,EE101..SED..GLI199205-199505

DARK BLUE,TRIM8#

main67640-1E250-K0iAE101,EE101..SED..GLI199205-199505

TAUPE,TRIM9#

main67640-1E251-B1iAE101,CE100,EE101..SED..(XL,XLI)199605-199704

W(FULL FABRIC GL(BA**/BB**)),SHADOW GRAY,TRIM1#

main67640-1E251-B1iAE101,EE101..SED..GLI199505-199704

SHADOW GRAY,TRIM1#

main67640-1E251-J2iAE101,CE100,EE101..SED..(XL,XLI)199605-199704

W(FULL FABRIC GL(BA**/BB**)),BLUE / GRAY,TRIM8#

main67640-1E251-J2iAE101,EE101..SED..GLI199505-199704

BLUE / GRAY,TRIM8#

main67640-1E280-B0iEE101..SED..GLI199205-199505

W(*PW),SHADOW GRAY,TRIM1#

main67640-1E280-B0iAE101..GLI199205-199505

W(*PW & *EL),SHADOW GRAY,TRIM1#

main67640-1E280-J2iAE101..GLI199205-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-1E280-J2iEE101..SED..GLI199205-199505

W(*PW),DARK BLUE,TRIM8#

main67640-1E280-K0iEE101..SED..GLI199205-199505

W(*PW & *EL),TAUPE,TRIM9#

main67640-1E280-K0iAE101..GLI199205-199505

W(*PW),TAUPE,TRIM9#

main67640-1E281-B1iAE101,EE101..SED..GLI199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main67640-1E281-J3iAE101,CE100,EE101..LHD..SED..(XL,XLI)199605-199704

W(FULL FABRIC GL(BA**/BB**) & POWER WINDOW),BLUE / GRAY,TRIM8#

main67640-1E281-J3iAE101,EE101..SED..GLI199505-199704

W(*PW),BLUE / GRAY,TRIM8#

main67640-1E330-B0iEE101..SED..STD199205-199704

SHADOW GRAY,TRIM1#

main67640-1E330-J0iEE101..SED..STD199205-199704

DARK BLUE,TRIM8#

main67640-1E330-K0iEE101..SED..STD199205-199505

TAUPE,TRIM9#

main67640-1E570-B0iAE101,CE100,EE10#..SED..(XL,XLI)199205-199401

SHADOW GRAY,TRIM1#

main67640-1E570-J0iAE101,CE100,EE10#..SED..(XL,XLI)199205-199401

DARK BLUE,TRIM8#

main67640-1E570-K0iAE101,CE100,EE10#..SED..(XL,XLI)199205-199401

TAUPE,TRIM9#

main67640-1E571-B1iAE101,CE100,EE10#..SED..(XL,XLI)199401-199505

SHADOW GRAY,TRIM1#

main67640-1E571-J1iAE101,CE100,EE10#..SED..(XL,XLI)199401-199505

DARK BLUE,TRIM8#

main67640-1E572-B2iAE101,CE100,EE10#..SED..(XL,XLI)199505-199704

SHADOW GRAY,TRIM1#

main67640-1E572-J2iAE101,CE100,EE10#..SED..(XL,XLI)199505-199704

BLUE / GRAY,TRIM8#

main67640-1H230-B0iEE101..LHD..SED..XLI199401-199505

W(*PW),DARK BLUE,TRIM1#

main67640-1H230-B0iAE101..SED..XLI199401-199505

W(*PW & *EL),DARK BLUE,TRIM1#

main67640-1H230-J0iAE101..SED..XLI199401-199505

W(*PW & *EL),DARK BLUE,TRIM8#

main67640-1H230-J0iCE100,EE101..LHD..SED..(XL,XLI)199401-199505

W(*PW),DARK BLUE,TRIM8#

main67640-1H231-B1iAE101,CE100,EE101..LHD..SED..(XL,XLI)199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main67640-1H231-J1iAE101,CE100,EE101..LHD..SED..(XL,XLI)199505-199704

W(*PW),BLUE / GRAY,TRIM8#

main67640-1H250-B0iAE101,CE100,EE101..LHD..WG..(XL,XLI)199401-199505

W(*PW),DARK BLUE,TRIM1#

main67640-1H250-J0iAE101..WG199401-199505

W(*PW),DARK BLUE,TRIM8#

main67640-1H251-B1iAE10#,CE100,EE101..LHD..WG..(XL,XLI)199505-199704

W(*PW),SHADOW GRAY,TRIM1#

main67640-1H251-J1iAE10#,CE100,EE101..LHD..WG..(XL,XLI)199505-199704

W(*PW),BLUE / GRAY,TRIM8#

main67640-1H470-B0iAE101,CE100,EE101..LHD..WG..(XL,XLI)199412-199504

95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#

main67640-1H480-B0iAE101,CE100,EE101..LHD..WG..(XL,XLI)199412-199504

95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#

main67640-1H490-B0iAE101,CE100,EE101..LHD..SED..(XL,XLI)199412-199504

95 SPRING CAMPAIGN,SHADOW GRAY,TRIM1#

main67640-1H510-B0iAE101,CE100,EE101..LHD..SED..(XL,XLI)199412-199504

95 SPRING CAMPAIGN,W(*PW),SHADOW GRAY,TRIM1#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12030iCE100,EE101..STD199310-199605

YELLOW GREEN

main67771-12050iAE10#,CE100,EE10#..GLI,XL,XLI199401

main67771-12070iCE100,EE101..STD199205-199401

WHITE

main67771-13030iCE100,EE101..WG..STD199208

SABLE,PLANT K21

main67771-16080iEE101..WG..GLI199205

NATURAL

main67771-16160iCE100,EE101..WG..STD199205

ORANGE

main67771-16170iCE100,EE101..STD199401

SABLE,PLANT A31,A32

main67771-28020iAE101,CE100,EE10#..GLI,XL,XLI199205-199401

main90467-08179iCE100,EE101..STD199205-199605

YELLOW

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-12050iAE10#,CE100,EE10#199205

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-12050-B0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub69751-12050

main69751-12050-J0iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub69751-12050

main69751-12050-K0iAE101,EE101..SED..(GLI,STD)199205-199505

TAUPE,TRIM9#

sub69751-12050

69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB

main69751-12050-B0iAE10#,CE100,EE10#199205-199704

SHADOW GRAY,TRIM1#

sub69751-12050

main69751-12050-J0iAE10#,CE100,EE10#199205-199704

DARK BLUE,TRIM8#

sub69751-12050

main69751-12050-K0iAE101,CE100,EE10#..SED199205-199505

TAUPE,TRIM9#

sub69751-12050

8401

9033320001

main90333-20001

10 parts on this diagram · 2 diagrams in section
