DECK BOARD & DECK TRIM COVER

58348DCOVER, REAR ABSORBER SERVICE HOLE, RH

main58348-13050-P0iAE10#,CE100,EE10#..WG199205

W(TONNEAU COVER),SHADOW GRAY,TRIM1#

main58348-13050-W3iAE10#,CE100,EE10#..WG199205

W(TONNEAU COVER),DARK BLUE,TRIM8#

main58348-13060-P0iAE10#,CE100,EE10#..WG199205

SHADOW GRAY,TRIM1#

sub58348-13060¥3,240

main58348-13060-W3iAE10#,CE100,EE10#..WG199205

DARK BLUE,TRIM8#

sub58348-13060¥3,240

58349DCOVER, REAR ABSORBER SERVICE HOLE, LH

main58349-13060-P0iAE10#,CE100,EE10#..WG199205

W(TONNEAU COVER),SHADOW GRAY,TRIM1#

sub58349-13060¥4,460

main58349-13060-W3iAE10#,CE100,EE10#..WG199205

W(TONNEAU COVER),DARK BLUE,TRIM8#

sub58349-13060¥4,460

main58349-13070-P0iAE10#,CE100,EE10#..WG199205

SHADOW GRAY,TRIM1#

sub58349-13070¥3,720

main58349-13070-W3iAE10#,CE100,EE10#..WG199205

DARK BLUE,TRIM8#

sub58349-13070¥3,720

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64370-13020-P0iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)199205-199704

SHADOW GRAY,TRIM1#

main64370-13020-W3iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)199205-199704

DARK BLUE,TRIM8#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64370-13030-P0iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)199205-199704

SHADOW GRAY,TRIM1#

main64370-13030-W3iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)199205-199704

DARK BLUE,TRIM8#

64310BRACKET, PACKAGE TRAY TRIM, RH

main64301-13010iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)¥2,290199205

64320BRACKET, PACKAGE TRAY TRIM, LH

main64302-13010iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)¥2,290199205

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-13010-J1iAE101,CE100,EE10#..WG..(GLI,XL,XLI)199205-199308

DARK BLUE,TRIM8#

sub64330-13011¥6,800

main64330-13010-P0iAE101,CE100,EE10#..WG..(GLI,XL,XLI)199205-199308

SHADOW GRAY,TRIM1#

sub64330-13011¥6,800

main64330-13011-J1iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)199308

DARK BLUE,TRIM8#

main64330-13011-P0iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)199308

SHADOW GRAY,TRIM1#

64702ACOVER SUB-ASSY, DECK TRIM SIDE SERVICE HOLE

main64702-13040-P0iAE10#,CE100,EE10#..WG199205-199704

SHADOW GRAY,TRIM1#

sub64702-13040¥4,850

main64702-13040-W3iAE10#,CE100,EE10#..WG199205-199704

DARK BLUE,TRIM8#

sub64702-13040¥4,850

64702BSTOPPER, WASHER TANK COVER

main64981-13010iAE10#,CE100,EE10#..WG¥250199205

64702CKNOB, WASHER TANK COVER

main64982-13010-B0iAE10#,CE100,EE10#..WG199205-199509

SHADOW GRAY,TRIM1#

sub64982-13010¥300

main64982-13010-J0iAE10#,CE100,EE10#..WG199205-199509

DARK BLUE,TRIM8#

sub64982-13010¥300

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-13070-P0iAE101,CE100,EE10#..WG199205-199401

SHADOW GRAY,TRIM1#

sub64707-13080¥2,390

main64707-13070-W3iAE101,CE100,EE10#..WG199205-199401

DARK BLUE,TRIM8#

sub64707-13080¥2,390

main64707-13080-B1iAE10#,CE100,EE10#..WG199401-199704

SHADOW GRAY,TRIM1#

sub64707-13080¥2,390

main64707-13080-J0iAE10#,CE100,EE10#..WG199401-199704

DARK BLUE,TRIM8#

sub64707-13080¥2,390

64707CKNOB, JACK COVER

main64982-13010-B0iAE10#,CE100,EE10#..WG199205-199509

SHADOW GRAY,TRIM1#

sub64982-13010¥300

main64982-13010-J0iAE10#,CE100,EE10#..WG199205-199509

DARK BLUE,TRIM8#

sub64982-13010¥300

64707GSTOPPER, JACK COVER

main64981-13010iAE10#,CE100,EE10#..WG¥250199205

64716DCOVER, DECK TRIM, REAR

main64716-13060-P0iAE101,CE100,EE10#..WG199205-199308

SHADOW GRAY,TRIM1#

sub64716-13061¥8,800

main64716-13060-W3iAE101,CE100,EE10#..WG199205-199308

DARK BLUE,TRIM8#

sub64716-13061¥8,800

main64716-13061-P0iAE10#,CE100,EE10#..WG199205-199509

SHADOW GRAY,TRIM1#

sub64716-13061¥8,800

main64716-13061-W3iAE10#,CE100,EE101..WG199205-199509

DARK BLUE,TRIM8#

sub64716-13061¥8,800

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-13050-P0iAE10#,CE100,EE101..WG199205-199509

W(3-POINT REAR SEAT BELT),SHADOW GRAY,TRIM1#

sub64730-13050¥19,400

main64730-13050-W3iAE10#,CE100,EE101..WG199205-199509

W(3-POINT REAR SEAT BELT),DARK BLUE,TRIM8#

sub64730-13050¥19,400

main64730-13090-B0iAE10#,CE100,EE10#..WG199205

SHADOW GRAY,TRIM1#

main64730-13090-J0iAE10#,CE100,EE10#..WG199205

DARK BLUE,TRIM8#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-07041-P0iAE10#,CE100,EE10#..WG199210-199704

SHADOW GRAY,TRIM1#

sub90467-07041¥140

main90467-07076-03iAE101,CE100,EE10#..WG199205-199210

SHADOW GRAY,TRIM1#

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

main90467-07076-W3iAE10#,CE100,EE10#..WG199205-199704

DARK BLUE,TRIM8#

sub90467-07041¥140

sub90467-07076¥130

sub90467-A0016

64740BBOARD, DECK TRIM SIDE, LH

main64740-13050-P0iAE10#,CE100,EE101..WG199205-199509

W(3-POINT REAR SEAT BELT),SHADOW GRAY,TRIM1#

main64740-13050-W3iAE10#,CE100,EE10#..WG199205-199509

W(3-POINT REAR SEAT BELT),DARK BLUE,TRIM8#

main64740-13090-B0iAE10#,CE100,EE10#..WG199205

SHADOW GRAY,TRIM1#

main64740-13090-J0iAE10#,CE100,EE10#..WG199205

DARK BLUE,TRIM8#

64757ABRACKET, SPEAKER SET, NO.3

main64757-13010iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)¥1,260199205

64758BRACKET, SPEAKER SET, NO.4

main64758-13010iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)¥1,030199205

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-13020-P0iAE10#,CE100,EE101..WG199205-199601

SHADOW GRAY,TRIM1#

sub64901-13020¥30,700

main64901-13020-W3iAE10#,CE100,EE10#..WG199205-199601

DARK BLUE,TRIM8#

sub64901-13020¥30,700

64929COVER, TONNEAU COVER HOLDER, RH

main64929-13020-P0iAE10#,CE100,EE10#..WG199205

SHADOW GRAY,TRIM1#

sub64929-13020¥510

main64929-13020-W3iAE10#,CE100,EE10#..WG199205

DARK BLUE,TRIM8#

sub64929-13020¥510

64931BHANGER, TONNEAU COVER, RH

main64931-13020-P0iAE10#,CE100,EE10#..WG199205-199601

SHADOW GRAY,TRIM1#

sub64931-13020¥1,030

main64931-13020-W3iAE10#,CE100,EE10#..WG199205-199601

DARK BLUE,TRIM8#

sub64931-13020¥1,030

64932BHANGER, TONNEAU COVER, LH

main64932-13020-P0iAE10#,CE100,EE101..WG199205-199601

SHADOW GRAY,TRIM1#

sub64932-13020¥1,030

main64932-13020-W3iAE10#,CE100,EE10#..WG199205-199601

DARK BLUE,TRIM8#

sub64932-13020¥1,030

64935HOLDER, TONNEAU COVER, RH

main64935-13030iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)¥550199205

W(SPEAKER)

main64935-13040iCE100,EE101..WG..STD¥790199205

W(TONNEAU COVER)

64936HOLDER, TONNEAU COVER, LH

main64935-13030iAE10#,CE100,EE10#..WG..(GLI,XL,XLI)¥550199205

W(SPEAKER)

main64936-13010iCE100,EE101..WG..STD¥790199205

W(TONNEAU COVER)

64939COVER, TONNEAU COVER HOLDER, LH

main64939-13010-P0iAE10#,CE100,EE10#..WG199205

SHADOW GRAY,TRIM1#

sub64939-13010¥510

main64939-13010-W3iAE10#,CE100,EE10#..WG199205

DARK BLUE,TRIM8#

sub64939-13010¥510

67921CRETAINER, DECK TRIM SIDE BOARD

main67921-13010iAE10#,CE100,EE10#..WG¥140199205

7102

6777113020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-13020¥140

6777213010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-13010¥100

9016460006

main90164-60006¥120

9018906097

main90189-06097¥130

9046710012

main90467-10012¥130

9046804155

main90468-04155¥200

9046805119

main90468-05119¥140

9095901457

main90959-01457¥230

9161160614

main91611-60614¥180

9165140616

main91651-40616¥60

9326955012

main93269-55012¥90

9354015014

main93540-15014¥110

9356614512

main93566-14512¥120

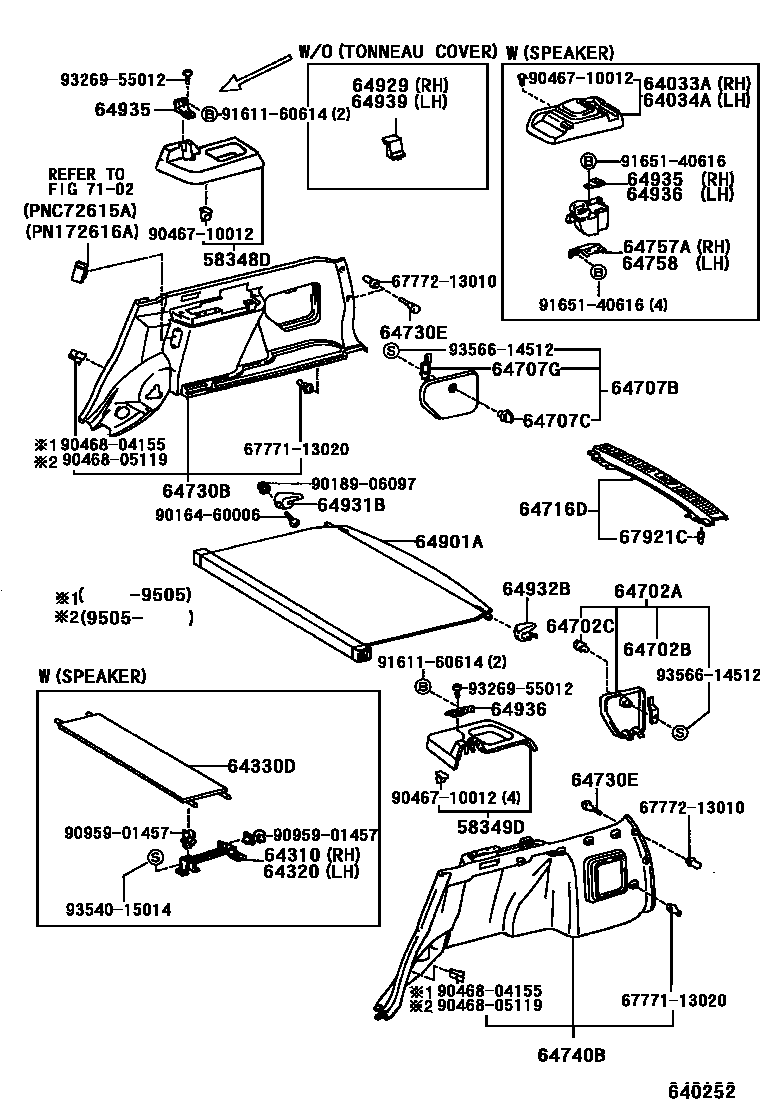

41 parts on this diagram · 1 diagram in section
