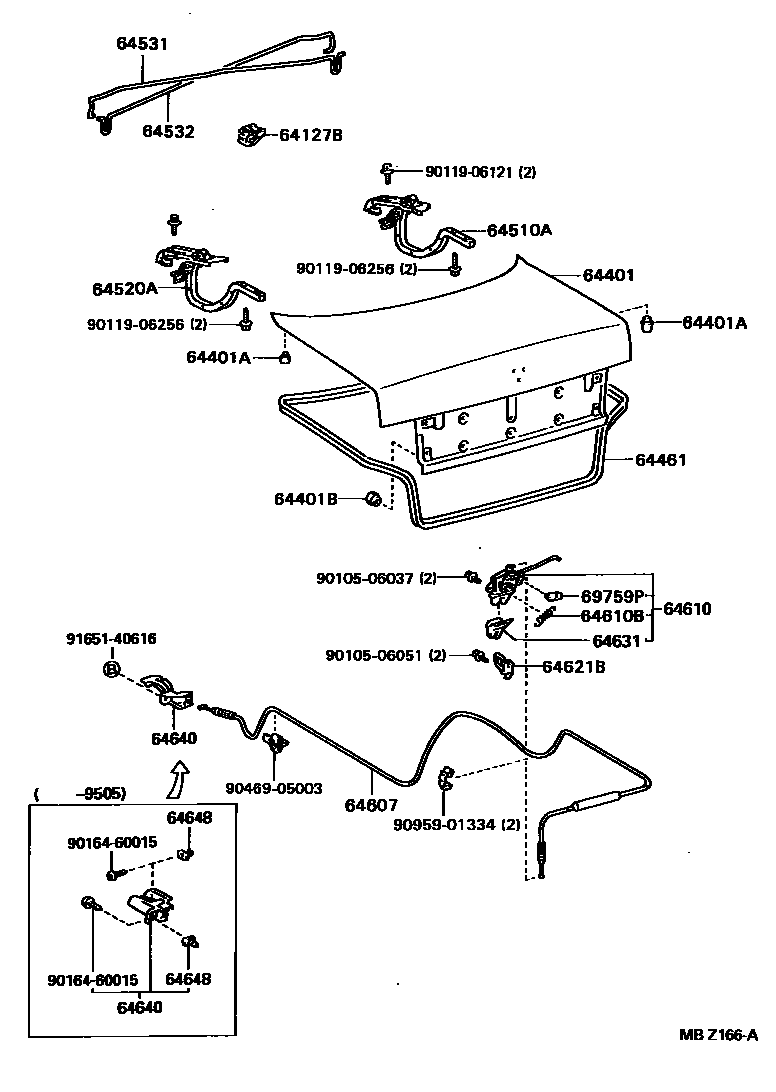

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-12080iAE101,CE100,EE10#..SED199205

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-1A520iAE101,CE100,EE10#..SED199205

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main64459-12050iAE101,CE100,EE10#..SED199205

REAR

main90541-06056iAE101,CE100,EE10#..SED199205

FRONT

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01820iAE101,CE100,EE10#..SED199205-199505

main90950-01864iAE101,CE100,EE10#..SED199505

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12290iAE101,CE100,EE10#..SED199205

64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12220iAE101,CE100,EE10#..SED199205

64520AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12210iAE101,CE100,EE10#..SED199205

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12390iAE101,CE100,EE10#..SED199205

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12380iAE101,CE100,EE10#..SED199205

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12560iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199505

main64607-12561iAE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI)199409-199505

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12160iEE101..SED..STD199205

main64610-12170iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199207

sub64610-12171

main64610-12171iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199207

64610BSPRING, TENSION(FOR LOCK)

main90506-05001iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199609

WD=0.55,CW=17.5

main90506-05002iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205

WD=0.25,CW=17.25

main90905-06021iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199609

WD=0.55,CW=17.5

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-12070iAE101,CE100,EE10#..SED199205

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12040iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199505

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64606-20090iAE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI)199505-199508

sub64606-20091

main64606-20091iAE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI)199508

main64606-20160iAE101,CE100,EE101..RHD..SED199505-199508

sub64606-20161

main64606-20161iAE101,CE100,EE101..RHD..SED199508

main64640-12090-02iAE101,CE100,EE101..RHD..SED199205-199505

TAUPE,TRIM9#

sub64640-12091

main64640-12090-03iAE101,CE100,EE101..RHD..SED199205-199505

SHADOW GRAY,TRIM1#

sub64640-12091

main64640-12090-04iAE101,CE100,EE101..RHD..SED199205-199505

DARK BLUE,TRIM8#

sub64640-12091

main64640-12100-B0iAE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI)199205-199401

SHADOW GRAY,TRIM1#

sub64640-12101

main64640-12100-J0iAE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI)199205-199504

DARK BLUE,TRIM8#

sub64640-12101

main64640-12100-K0iAE101,EE101..LHD..GLI199205-199504

TAUPE,TRIM9#

sub64640-12101

main64640-12101-J0iAE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI)199504-199505

DARK BLUE,TRIM8#

sub64640-12101

main64640-12101-K0iAE101,EE101..LHD..GLI199504-199505

TAUPE,TRIM9#

sub64640-12101

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12010iAE101,CE100,EE10#..SED..(GLI,XL,XLI)199205-199505

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-24050iAE101,CE100,EE10#..SED199205

9010506037

main90105-06037

9010506051

main90105-06051

9011906121

main90119-06121

9011906256

main90119-06256

9016460015

main90164-60015

9046905003

main90469-05003

9095901334

main90959-01334

9165140616

main91651-40616

25 parts on this diagram · 1 diagram in section
