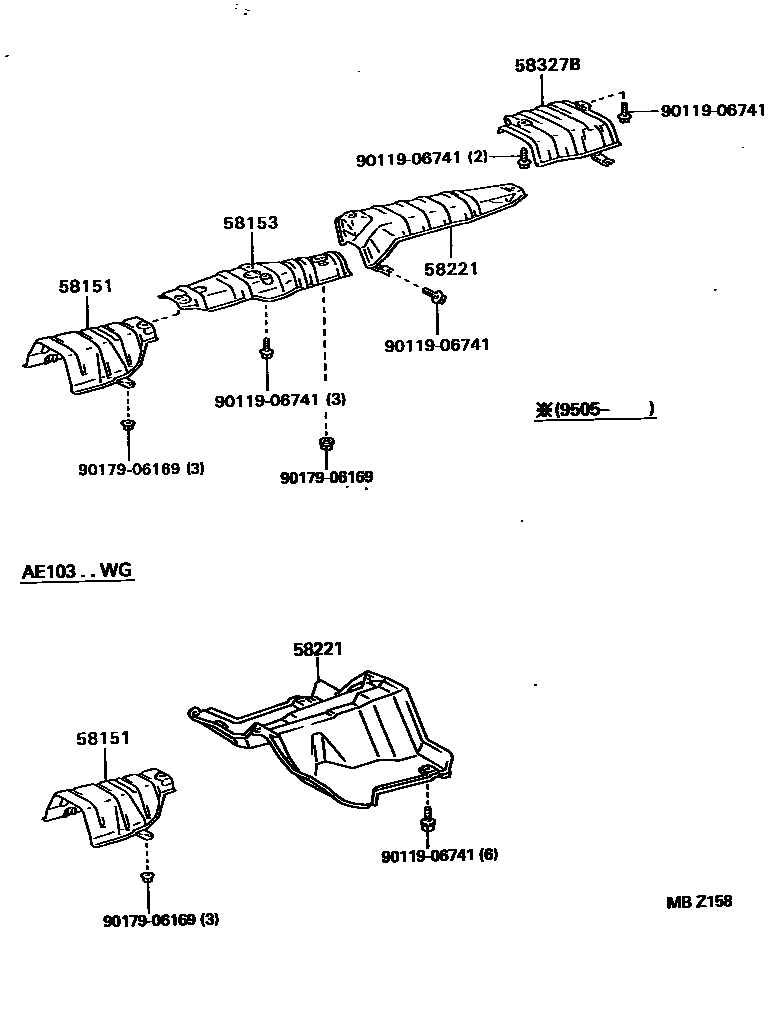

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-12140iAE101,EE101¥3,790199205-199211

sub58041-12150¥3,790

main58041-12150iAE101,EE101¥3,790199211-199505

sub58151-12200¥2,390

main58151-12160iAE103¥2,350199505

main58151-12200iAE101,EE101¥2,390199505

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12110iAE101,EE101¥1,850199205-199211

sub58153-12120¥1,870

main58153-12120iAE101,EE101¥1,870199211-199611

sub58153-12140¥1,870

main58153-12140iAE101,EE101¥1,870199611

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58044-12010iAE101,EE101¥4,100199205-199211

sub58044-12040¥4,130

main58044-12020iAE103¥15,900199505

main58044-12040iAE101,CE100,EE10#¥4,130199211

58327BINSULATOR, MAIN MUFFLER HEAT

main58031-12070iAE101,EE101¥4,080199205-199211

sub58031-12090¥4,090

main58031-12090iAE101,CE100,EE10#¥4,090199211

9011906741

main90119-06741¥80

9017906169

main90179-06169¥90

6 parts on this diagram · 1 diagram in section
