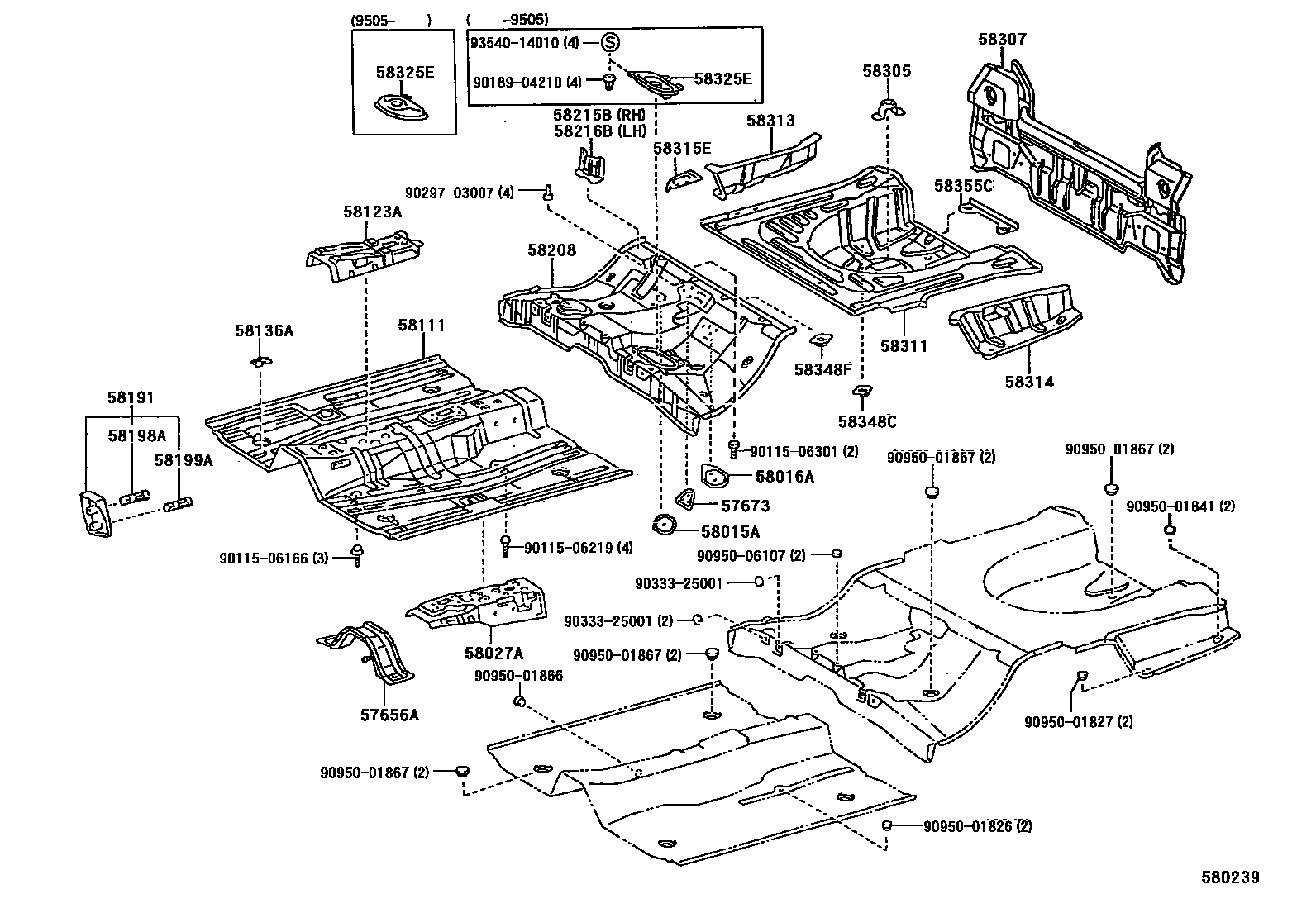

FLOOR PAN & LOWER BACK PANEL
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57673BRACKET, REAR SEATBACK HINGE MOUNTING
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
W(4-WAY SPLIT FOLD DOWN REAR SEAT)
58215BBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58325ECOVER, REAR FLOOR SERVICE HOLE
58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58348FBRACKET, CENTER FLOOR HEAR INSULATOR, NO.3
58355CBRACKET, REAR BUMPER ARM
9011506166
9011506219
9011506301
9018904210
9029703007
9033325001
9095001826
9095001827
9095001841
9095001866
9095001867
9095006107
9354014010
37 parts on this diagram · 2 diagrams in section
