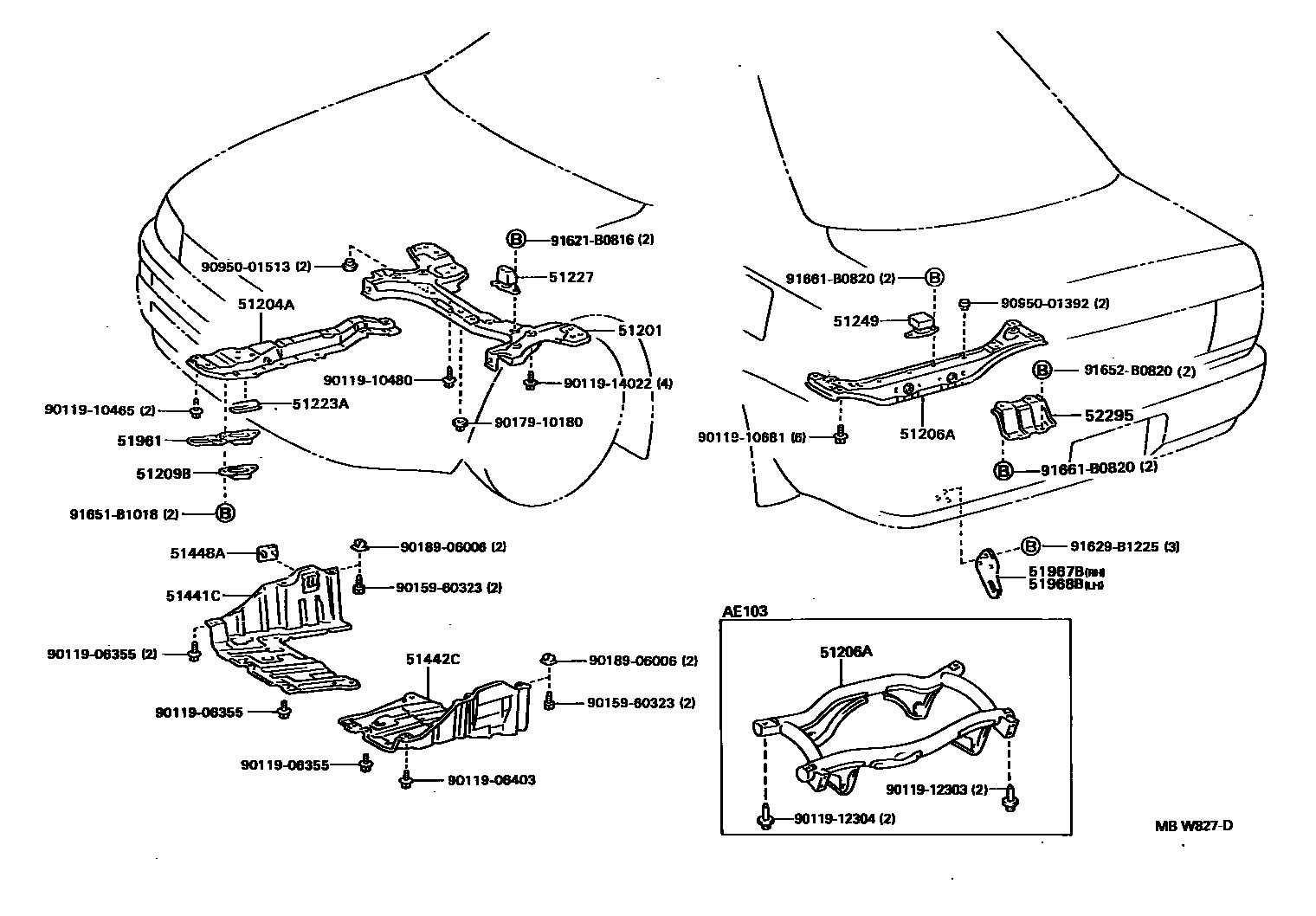

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12320iAE101,CE100,EE10#¥40,100199205-199505

sub51201-12370¥40,100

main51201-12360iEE100;CE100..LHD..SED¥43,100199205-199505

ROUGH ROAD PACKAGE

sub51201-12380¥43,300

main51201-12380iAE101,CE100,EE10#¥43,300199505

main51201-12390iAE103¥45,800199505

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12080iAE101,CE100,EE10#¥15,700199205

sub51204-12081¥15,800

main51204-12110iAE103¥15,800199505

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12040iAE101,CE100,EE10#¥21,500199205-199305

main51206-12060iAE101,CE100,EE10#¥19,500199305

main51206-12070iAE103¥38,100199505

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-12010iCE100..LHD;AE101,EE10#¥2,260199205-199505

51223ACOVER, ENGINE MOUNTING HOLE

main51223-12010iAE101,CE100,EE10#¥330199205-199406

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-12040iAE101,CE100,EE10#¥2,710199205

51249DAMPER, REAR SUSPENSION MEMBER

main51249-12060iAE101,CE100,EE10#¥6,400199205-199305

51441CCOVER, ENGINE UNDER, RH

main51410-12010iAE103¥3,410199505

main51441-12140iAE101,CE100,EE10#¥3,170199205

51442CCOVER, ENGINE UNDER, LH

main51442-12080iAE10#,CE100,EE10#..5F¥5,100199205

main51442-12090iAE101,EE101..ATM¥4,210199205

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iAE101,CE100,EE10#¥620199205-199501

51961HOOK, NO.1

main51960-12040iAE101..RHD¥2,350199205-199505

*FRG

sub51960-12060¥1,470

main51960-12060iAE10#,CE100,EE10#¥1,470199505

51967BHOOK, TRANSPORT, REAR RH

main51967-12220iAE10#,CE100,EE10#¥2,750199205

51968BHOOK, TRANSPORT, REAR LH

main51968-12110iAE10#,CE100,EE10#¥1,120199205

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12010iAE101,CE100,EE10#¥3,570199305

9011906355

main90119-06355¥160

9011906403

main90119-06403¥70

9011910465

main90119-10465¥120

9011910480

main90119-10480¥240

9011910681

main90119-10681¥310

9011912303

main90119-12303¥510

9011912304

main90119-12304¥400

9011914022

main90119-14022¥520

9015960323

main90159-60323¥100

9017910180

main90179-10180¥120

9018906006

main90189-06006¥100

9095001392

main90950-01392¥100

9095001513

main90950-01513¥190

91621B0816

main91621-B0816¥90

91629B1225

main91629-B1225¥260

91651B1018

main91651-B1018¥200

91652B0820

main91652-B0820¥130

91661B0820

main91661-B0820¥160

32 parts on this diagram · 1 diagram in section
