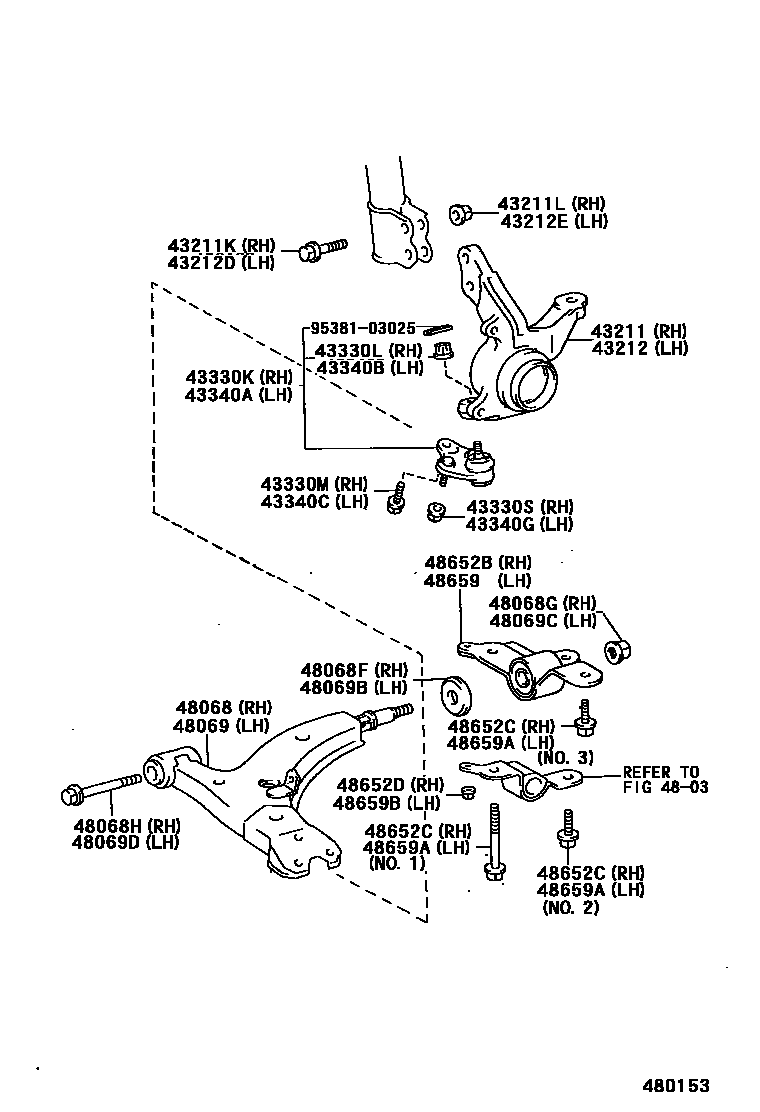

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

43211KNUCKLE, STEERING, RH

main43211-12200iCE100,EE100..LHD..SED199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub43211-12340

main43211-12220iCE100..WG;CE100..RHD;AE101,EE10#199205-199505

W(POWER STEERING)

sub43211-12330

main43211-12220iCE100..LHD..SED199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR & W(POWER STEERING)

sub43211-12330

main43211-12230iAE101,CE100,EE101199205-199505

W(*66)

sub43211-12320

sub90389-16020

main43211-12240iAE101,CE100,EE101199205-199505

W(*66 & POWER STEERING)

sub43211-12300

sub90389-16020

main43211-12290iAE101,EE10#;CE100..LHD..WG199505-199704

W(POWER STEERING)

main43211-12290iAE101,EE10#;CE100..LHD..WG199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR & W(POWER STEERING)

main43211-12300iAE101,CE100,EE101..RHD199505-199704

W(*66)

main43211-12300iAE101,CE100,EE101..RHD199505-199704

W(*66 & POWER STEERING)

main43211-12310iCE100..LHD..WG;AE101,EE101..LHD199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

main43211-12320iAE101,CE100,EE101..LHD199505-199704

W(*66)

main43211-12370iAE103199505-199704

main43211-12380iAE103199505-199704

W(*66)

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iAE10#,CE100,EE10#199408-199704

OD=15.0

main90105-15004iAE10#,CE100,EE10#199211-199704

OD=13.9

main90105-15005iAE10#,CE100,EE10#199211-199704

OD=13.3

main90105-15006iAE10#,CE100,EE10#199211-199704

OD=12.4

main90105-15007iAE101,CE100,EE10#199205-199408

OD=15.0

sub90105-15001

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iAE10#,CE100,EE10#199205-199704

43212KNUCKLE, STEERING, LH

main43212-12160iCE100..RHD;AE101,EE101;CE100,EE100..WG199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub43212-12300

main43212-12180iCE100..WG;CE100..RHD;AE101,EE10#199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR & W(POWER STEERING)

sub43212-12290

main43212-12180iCE100..WG;CE100..RHD;AE101,EE10#199205-199505

W(POWER STEERING)

sub43212-12290

main43212-12190iAE101,CE100,EE101199205-199505

W(*66)

sub43212-12280

sub90389-16020

main43212-12200iAE101,CE100,EE101199205-199505

W(*66 & POWER STEERING)

sub43212-12260

sub90389-16020

main43212-12250iAE101,CE100,EE101..RHD199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR & W(POWER STEERING)

main43212-12250iCE100..LHD..WG;AE101,EE10#..LHD199505-199704

W(POWER STEERING)

main43212-12260iAE101,CE100,EE101..RHD199505-199704

W(*66)

main43212-12260iAE101,CE100,EE101..RHD199505-199704

W(*66 & POWER STEERING)

main43212-12270iCE100,EE100..LHD..SED199505-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

main43212-12280iAE101,CE100,EE101..LHD199505-199704

W(*66)

main43212-12330iAE103199505-199704

main43212-12340iAE103199505-199704

W(*66)

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iAE10#,CE100,EE10#199408-199704

OD=15.0

main90105-15004iAE10#,CE100,EE10#199211-199704

OD=13.9

main90105-15005iAE10#,CE100,EE10#199211-199704

OD=13.3

main90105-15006iAE10#,CE100,EE10#199211-199704

OD=12.4

main90105-15007iAE101,CE100,EE10#199205-199408

OD=15.0

sub90105-15001

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iAE10#,CE100,EE10#199205-199704

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19095iAE101,CE100,EE10#199205-199505

main43330-19115iAE10#,CE100,EE10#199505-199704

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAE10#,CE100,EE10#199205-199704

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAE10#,CE100,EE10#199205

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070iAE10#,CE100,EE10#199205

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19095iAE101,CE100,EE10#199205-199505

main43330-19115iAE10#,CE100,EE10#199505-199704

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAE10#,CE100,EE10#199205-199704

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iAE10#,CE100,EE10#199205

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070iAE10#,CE100,EE10#199205

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-12130iCE100..LHD..SED199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR

main48068-12140iAE101,CE100,EE101199205-199505

main48068-12160iEE100199505-199704

main48068-12170iAE101,CE100,EE101199505-199610

sub48068-12171

main48068-12171iAE101,CE100,EE101199610-199704

main48068-12190iAE103199505-199506

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub48068-12191

main48068-12190iAE103199505-199506

ROUGH ROAD PACKAGE 1

sub48068-12191

main48068-12191iCE100..LHD..SED199506-199704

ROUGH ROAD PACKAGE 1

main48068-12191iEE100199506-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

48068FRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90948-02152iAE101,CE100,EE10#199205-199505

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14006iAE101,CE100,EE10#199205-199505

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14023iAE101,CE100,EE10#199205-199505

main90119-14023iAE10#,CE100,EE10#199505

NO.1

main90119-14041iAE10#,CE100,EE10#199505

NO.2

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-12130iCE100..LHD..SED199205-199505

ROUGH ROAD PACKAGE 1 & *EX-USSR

main48069-12140iAE101,CE100,EE101199205-199505

main48069-12160iEE100199505-199704

main48069-12170iAE101,CE100,EE101199505-199610

sub48069-12171

main48069-12171iAE101,CE100,EE101199610-199704

main48069-12190iEE100199505-199506

ROUGH ROAD PACKAGE 1 & *EX-USSR

sub48069-12191

main48069-12190iCE100..LHD..SED199505-199506

ROUGH ROAD PACKAGE 1

sub48069-12191

main48069-12191iEE100199506-199704

ROUGH ROAD PACKAGE 1 & *EX-USSR

main48069-12191iAE103199506-199704

ROUGH ROAD PACKAGE 1

48069BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90948-02152iAE101,CE100,EE10#199205-199505

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14006iAE101,CE100,EE10#199205-199505

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14023iAE101,CE100,EE10#199205-199505

main90119-14023iAE10#,CE100,EE10#199505

NO.1

main90119-14041iAE10#,CE100,EE10#199505

NO.2

48652BBRACKET, FRONT LOWER ARM, RH

main48075-12010iAE101,CE100,EE101199205-199505

ROUGH ROAD PACKAGE 1

main48075-12031iEE100199205-199505

main48075-12040iEE100199305-199505

main48652-12060iEE100199505

main48652-12070iAE10#,CE100,EE101199505

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90119-10692iAE10#,CE100,EE10#199205

*10-1.25PX29-23,NO.2

main90119-12125iAE10#,CE100,EE10#199205

*12-1.25PX31-25.3,NO.3

main90119-12238iAE10#,CE100,EE10#199205

*12-1.25PX75-38,NO.1

48652DNUT(FOR FRONT LOWER ARM BRACKET RH)

main90179-08072iAE101,CE100,EE10#199205-199408

main90179-08145iAE10#,CE100,EE10#199408

sub90179-08123

48659BRACKET, FRONT LOWER ARM, LH

main48076-12010iEE100199205-199505

ROUGH ROAD PACKAGE 1

main48076-12031iEE100199205-199505

main48076-12040iEE100199305-199505

main48659-12060iEE100199505

main48659-12070iAE10#,CE100,EE101199505

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90119-10692iAE10#,CE100,EE10#199205

*10-1.25PX29-23,NO.2

main90119-12125iAE10#,CE100,EE10#199205

*12-1.25PX31-25.3,NO.3

main90119-12238iAE10#,CE100,EE10#199205

*12-1.25PX75-38,NO.1

48659BNUT(FOR FRONT LOWER ARM BRACKET LH)

main90179-08072iAE101,CE100,EE10#199205-199408

main90179-08145iAE10#,CE100,EE10#199408

sub90179-08123

9538103025

main95381-03025

30 parts on this diagram · 3 diagrams in section
