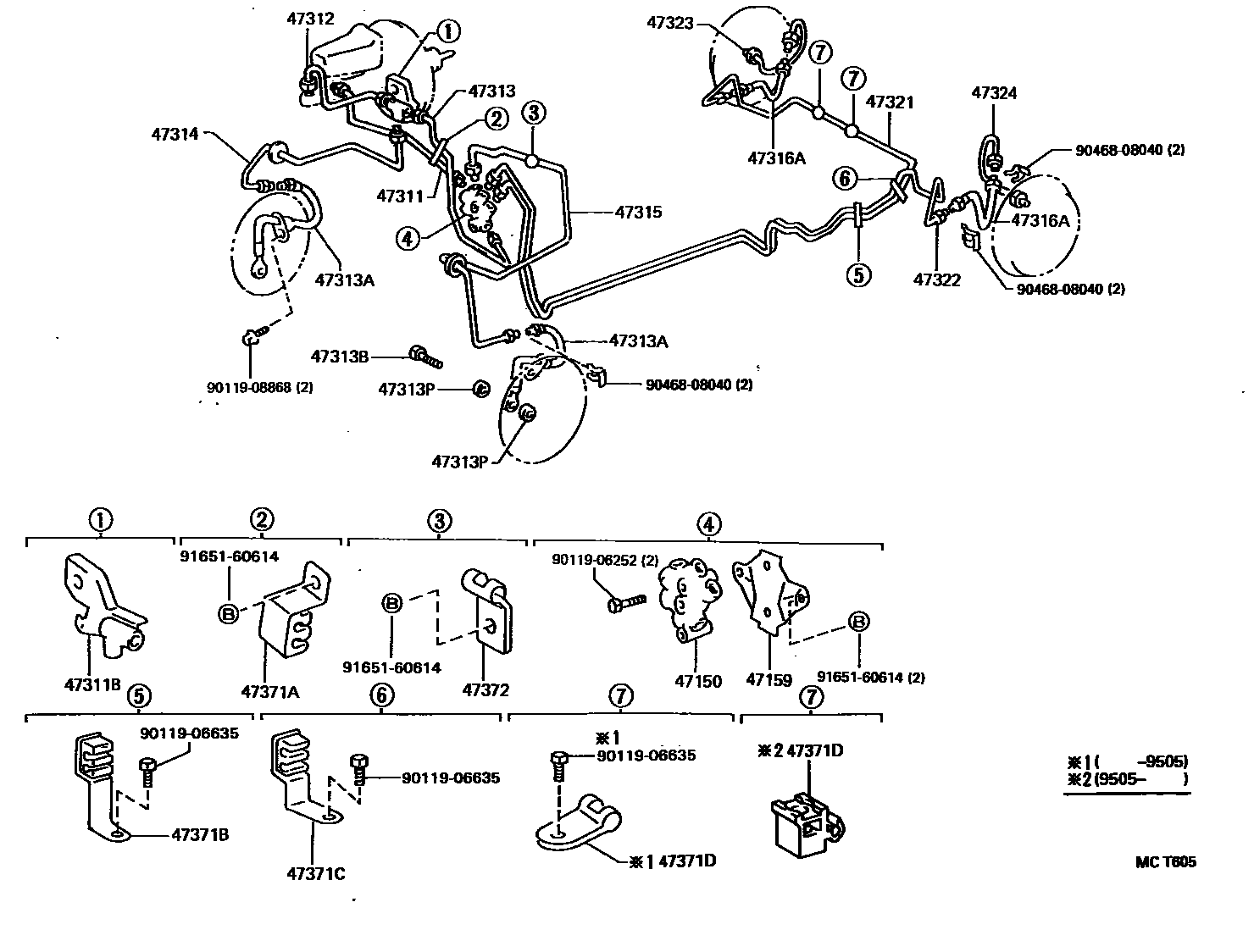

BRAKE TUBE & CLAMP

0001 1 0002 1 0004 1 0005 1 0006 1W(ABS) 0007 1W(ABS) 0008 1W(ABS) 0009 1W(ABS) 0010 1W(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-12250iAE103¥13,500199505-199704

main47150-12270iAE101,CE100,EE10#..SED¥13,500199205-199704

main47150-20270iAE103¥13,500199505-199704

W(ABS)

47159BRACKET, PROPORTIONING VALVE

main47159-12070iAE101,CE100,EE101..RHD¥540199205-199704

47311TUBE, FRONT BRAKE, NO.1

main47311-12400iAE103¥2,170199505-199704

W(ABS)

main47311-12450iAE101,CE100,EE101..RHD¥980199205-199305

main47311-12490iAE10#,CE100,EE10#..LHD¥1,090199205-199704

main47311-12500iAE101..RHD¥1,300199205-199505

W(ABS)

main47311-12510iCE100,EE101..RHD¥1,300199205-199505

W(ABS)

main47311-12520iAE101,CE100,EE101..LHD¥2,170199205-199704

W(ABS)

main47311-12540iAE101,CE100,EE101..RHD¥940199305-199505

main47311-12560iAE101,CE100,EE101..RHD¥930199505-199704

main47311-12570iAE101,CE100,EE101..RHD¥1,300199505-199704

W(ABS)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-12010iAE101,CE100,EE101..RHD¥440199305-199704

main90412-10116iAE101,CE100,EE101..RHD¥790199205-199704

W(ABS)

main90412-10207iAE10#,CE100,EE101..LHD¥430199205-199704

W(ABS)

main90413-10159iAE10#,CE100,EE10#..LHD¥1,000199205-199704

main90413-10262iAE101,CE100,EE101..RHD¥990199205-199305

47312TUBE, FRONT BRAKE, NO.2

main47312-12260iAE10#,CE100,EE10#..LHD¥480199205-199704

main47312-12290iAE101,CE100,EE101..RHD¥580199205-199305

main47312-12330iAE101,CE100,EE101..RHD¥540199305-199704

47313TUBE, FRONT BRAKE, NO.3

main47313-12211iAE103¥2,530199505-199704

W(ABS)

main47313-12260iAE101,CE100,EE101..RHD¥980199205-199305

main47313-12290iAE101..RHD¥1,090199205-199505

W(ABS)

main47313-12300iAE10#,CE100,EE10#..LHD¥750199205-199704

main47313-12310iAE101,CE100,EE101..LHD¥2,530199205-199704

W(ABS)

main47313-12320iCE100,EE101..RHD¥1,090199305-199505

W(ABS)

main47313-12340iAE101,CE100,EE101..RHD¥940199305-199505

main47313-12370iAE101,CE100,EE101..RHD¥930199505-199704

main47313-12380iAE101,CE100,EE101..RHD¥1,090199505-199704

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02659iAE101,CE100,EE10#¥2,650199205-199405

RH

sub90947-02798¥2,650

main90947-02660iAE101,CE100,EE10#¥2,650199205-199405

LH

sub90947-02799¥2,650

main90947-02798iAE101,CE100,EE10#¥2,650199405-199704

RH

sub90947-02910¥1,900

main90947-02799iAE101,CE100,EE10#¥2,650199405-199704

LH

sub90947-02913¥1,900

main90947-02802iAE103¥2,650199505-199704

RH

main90947-02803iAE103¥2,650199505-199704

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAE10#,CE100,EE10#¥200199205-199704

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iAE10#,CE100,EE10#¥100199205-199704

47314TUBE, FRONT BRAKE, NO.4

main47314-12290iAE101,CE100,EE101..RHD¥930199505-199704

main47314-12320iAE101,CE100,EE101..RHD¥740199205-199305

main47314-12350iAE10#,CE100,EE101..LHD¥540199205-199704

W(ABS)

main47314-12370iAE10#,CE100,EE10#..LHD¥1,300199205-199704

main47314-12390iAE101,CE100,EE101..RHD¥730199205-199305

W(ABS)

main47314-12400iAE101,CE100,EE101..RHD¥740199305-199505

47315TUBE, FRONT BRAKE, NO.5

main47315-12420iAE10#,CE100,EE10#..LHD¥940199205-199704

main47315-12450iAE101,CE100,EE101..RHD¥730199205-199704

W(ABS)

main47315-12460iAE101,CE100,EE101..RHD¥1,080199205-199704

main47315-12480iAE103¥940199505-199704

W(ABS)

47316TUBE, FRONT BRAKE, NO.6

main47316-12220iAE103¥2,380199505-199704

main47316-12230iAE101..RHD¥2,160199205-199505

main47316-12240iCE100,EE101..RHD¥2,160199205-199505

main47316-12250iAE101,CE100,EE101..RHD¥2,170199505-199704

main47316-12260iAE101,CE100,EE101..LHD¥2,380199205-199704

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02657iAE101,CE100,EE10#¥1,860199205-199405

sub90947-02809¥1,860

main90947-02783iAE101,CE100,EE10#¥1,600199505-199704

sub90947-02921¥1,600

main90947-02809iAE103¥1,860199405-199704

47321TUBE, REAR BRAKE, NO.1

main47321-12100iAE101,CE100,EE101..RHD..SED¥3,910199205-199505

main47321-12120iEE100;AE101,CE100,EE101..LHD..SED¥4,570199205-199505

main47321-12130iAE101,CE100,EE101..RHD..SED¥3,920199505-199704

main47321-12150iAE101,CE100,EE10#..LHD..SED¥4,570199505-199701

sub47321-12190¥4,590

main47321-12160iAE103¥4,590199505-199704

main47321-12170iCE100,EE101..RHD..WG¥4,080199505-199612

W(ABS)

sub47321-12200¥4,090

main47321-12180iAE101,CE100,EE101..LHD..WG¥4,570199505-199612

W(ABS)

sub47321-12210¥4,570

main47321-12190iAE101,CE100,EE10#..LHD..SED¥4,590199701-199704

main47321-12200iAE101,CE100,EE101..RHD¥4,090199612-199704

W(ABS)

main47321-12210iAE101,CE100,EE101..LHD¥4,570199612-199704

W(ABS)

main47321-13090iEE101..RHD..WG¥4,090199205-199505

W(ABS)

main47321-13100iAE101,CE100,EE101..LHD..WG¥4,570199205-199505

W(ABS)

47322TUBE, REAR BRAKE, NO.2

main47322-12260iAE101,CE100,EE101..RHD..SED¥3,100199205-199505

main47322-12270iEE100;AE101,CE100,EE101..LHD..SED¥3,460199205-199505

main47322-12280iAE101,CE100,EE101..RHD..SED¥3,070199505-199704

main47322-12300iAE101,CE100,EE10#..LHD..SED¥3,440199505-199701

sub47322-12340¥3,430

main47322-12310iAE103¥3,440199505-199704

main47322-12320iAE101,CE100,EE101..RHD..SED¥3,920199505-199612

W(ABS)

sub47322-12350¥3,940

main47322-12330iAE101,CE100,EE101..LHD..WG¥4,410199505-199612

W(ABS)

sub47322-12360¥4,400

main47322-12340iAE101,CE100,EE10#..LHD..SED¥3,430199701-199704

main47322-12350iAE101,CE100,EE101..RHD¥3,940199612-199704

W(ABS)

main47322-12360iAE101,CE100,EE101..LHD¥4,400199612-199704

W(ABS)

main47322-13130iAE101,CE100,EE101..RHD..SED¥3,910199205-199505

W(ABS)

main47322-13140iAE101,CE100,EE101..LHD..WG¥4,410199205-199505

W(ABS)

47323TUBE, REAR BRAKE, NO.3

main47323-12240iAE103¥580199505-199704

main47323-12250iAE101,CE100,EE10#¥580199205-199704

47324TUBE, REAR BRAKE, NO.4

main47324-12200iAE103¥580199505-199704

main47324-12210iAE101,CE100,EE10#¥580199205-199704

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12090iAE101,CE100,EE101..RHD¥660199205-199704

W(ABS)

main47371-12100iAE101,CE100,EE101..RHD¥610199205-199704

main47371-12110iAE10#,CE100,EE101..LHD¥670199205-199704

W(ABS)

main47371-12120iAE10#,CE100,EE10#..LHD¥520199205-199704

47371BCLAMP, BRAKE TUBE, NO.6

main47375-12010iAE101,CE100,EE10#¥320199205-199505

main47375-12040iAE10#,CE100,EE10#¥520199505-199704

47371CCLAMP, BRAKE TUBE, NO.7

main47375-12020iAE101,CE100,EE10#¥310199205-199505

main47375-12060iAE10#,CE100,EE10#¥440199505-199704

47371DCLAMP, BRAKE TUBE, NO.8

main47371-12150iAE101,CE100,EE101..WG¥200199505-199704

W(ABS)

main90461-08687iAE101,CE100,EE101..SED¥270199205-199505

W(ABS)

47372CLAMP, BRAKE TUBE, NO.2

main47372-12010iCE100,EE101..RHD¥620199205-199505

W(ABS)

main47372-12040iAE10#,CE100,EE101..LHD¥660199205-199704

W(ABS)

main47372-12050iAE101..RHD¥610199205-199505

W(ABS)

main47372-12060iAE101,CE100,EE101..RHD¥660199505-199704

W(ABS)

main90461-06119iAE101,CE100,EE101..RHD¥320199205-199704

main90461-08652iAE10#,CE100,EE10#..LHD¥130199205-199704

9011906252

main90119-06252¥160

9011906635

main90119-06635¥120

9011908868

main90119-08868¥70

9046808040

main90468-08040¥130

9165160614

main91651-60614¥70

27 parts on this diagram · 9 diagrams in section
