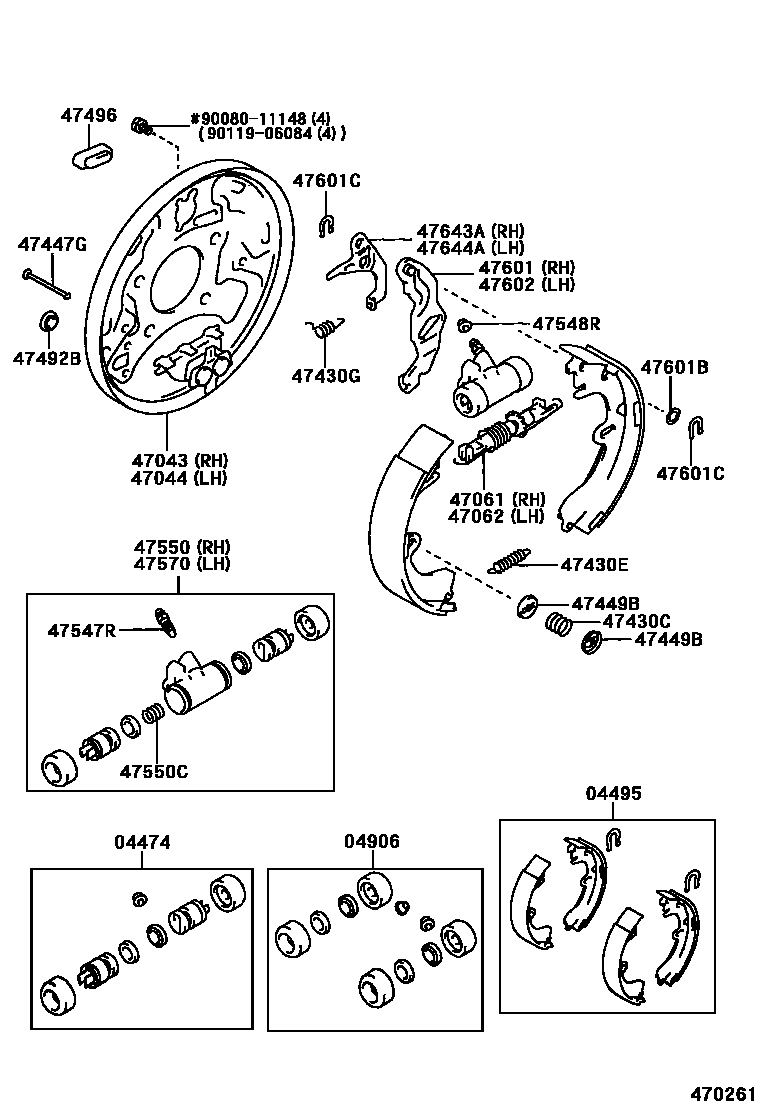

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-10032iAE10#,CE100,EE101¥1,880199205-199704

sub04474-63020¥1,880

main04474-16020iEE100¥1,990199205-199704

*EX-USSR SPEC

04495SHOE KIT, REAR BRAKE

main04495-12210iAE101,CE100,EE10#¥8,200199205-199704

*EX-USSR SPEC

main04495-12220iAE103¥8,200199505-199704

sub04495-12250¥8,100

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iAE10#,CE100,EE101¥870199205-199704

main04906-16020iEE100¥1,110199205-199704

*EX-USSR SPEC

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12070iAE101,CE100,EE10#¥4,120199205-199704

main47043-12080iAE103¥4,090199505-199704

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12070iAE101,CE100,EE10#¥4,120199205-199704

main47044-12080iAE103¥4,090199505-199704

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-16030iAE103¥1,850199505-199704

main47061-20020iAE101,CE100,EE10#¥2,170199205-199704

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-16030iAE103¥1,850199505-199704

main47062-20020iAE101,CE100,EE10#¥2,170199205-199704

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-18017iAE10#,CE100,EE10#¥190199205-199704

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iAE10#,CE100,EE10#¥250199205-199704

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iAE10#,CE100,EE10#¥260199205-199704

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010iAE10#,CE100,EE10#¥230199205-199704

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iAE10#,CE100,EE10#¥190199205-199704

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iAE10#,CE100,EE10#¥130199205-199704

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAE10#,CE100,EE10#¥140199205-199704

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAE10#,CE100,EE10#¥200199205-199704

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAE10#,CE100,EE10#¥160199205-199704

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-12090iEE100¥4,950199205-199408

*EX-USSR SPEC

sub47550-16060¥4,970

main47550-16060iCE100..LHD..SED¥4,970199408-199704

*EX-USSR SPEC

main47550-20150iAE10#,CE100,EE101¥4,960199205-199704

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAE10#,CE100,EE10#¥200199205-199704

sub90029-60014¥190

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-12030iCE100..LHD..SED¥4,950199205-199408

*EX-USSR SPEC

sub47570-16040¥4,970

main47570-16040iEE100¥4,970199408-199704

*EX-USSR SPEC

main47570-20060iAE10#,CE100,EE101¥4,960199205-199704

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iAE10#,CE100,EE10#¥760199205-199704

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAE10#,CE100,EE10#¥170199205-199704

T=0.3

main90564-08151iAE10#,CE100,EE10#¥170199205-199704

T=0.6

main90564-08152iAE10#,CE100,EE10#¥170199205-199704

T=0.9

main90564-08172iAE10#,CE100,EE10#¥190199205-199704

T=0.2

main90564-08173iAE10#,CE100,EE10#¥170199205-199704

T=0.4

main90564-08174iAE10#,CE100,EE10#¥170199205-199704

T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAE10#,CE100,EE10#¥110199205-199704

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAE10#,CE100,EE10#¥760199205-199704

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-32010iAE10#,CE100,EE10#¥430199205-199704

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-32010iAE10#,CE100,EE10#¥430199205-199704

9008011148

main90080-11148¥60

9011906084

main90119-06084¥100

27 parts on this diagram · 2 diagrams in section
