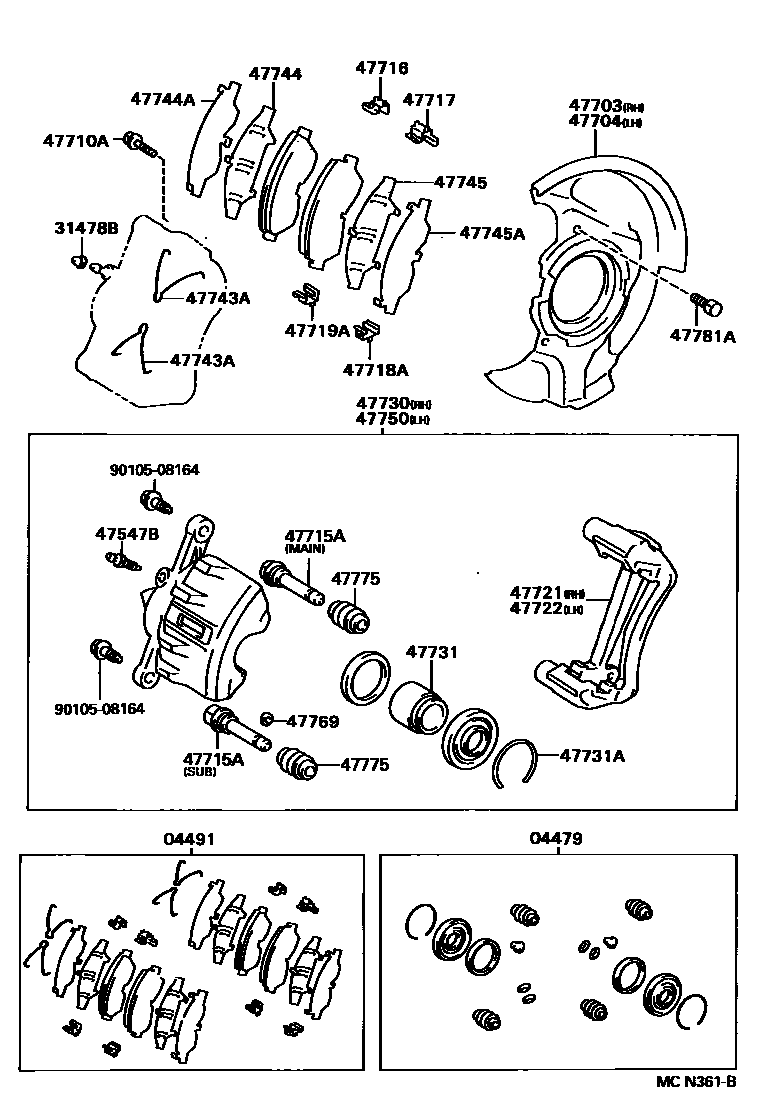

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iEE100¥3,010199205-199704

*EX-USSR SPEC

main04479-12180iAE10#,CE100,EE101¥3,130199205-199704

04491PAD KIT, DISC BRAKE, FRONT

main04491-12432iCE100..LHD..SED¥11,800199405-199505

*EX-USSR SPEC

sub04465-12090¥10,200

main04491-12540iEE100¥11,800199205-199401

sub04491-12541¥11,800

main04491-12541iCE100..LHD..SED¥11,800199403-199405

*EX-USSR SPEC

sub04491-12432¥11,800

main04491-12541iEE100¥11,800199401-199405

sub04491-12432¥11,800

main04491-12560iCE100..LHD..SED¥11,800199205-199401

*EX-USSR SPEC

sub04491-12561¥11,800

main04491-12561iCE100..LHD..SED¥11,800199401-199403

*EX-USSR SPEC

sub04491-12541¥11,800

main04491-12650iAE101,CE100,EE101¥15,600199205-199406

sub04491-12651¥15,600

main04491-12651iAE101,CE100,EE101¥15,600199406-199505

sub04465-33040¥11,900

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE10#,CE100,EE10#¥160199205-199704

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE10#,CE100,EE10#¥200199205-199704

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12160iEE100¥1,710199205-199704

*EX-USSR SPEC

main47781-12170iAE10#,CE100,EE101¥1,710199205-199704

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12160iEE100¥1,710199205-199704

*EX-USSR SPEC

main47782-12170iAE10#,CE100,EE101¥1,710199205-199704

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAE10#,CE100,EE10#¥230199205-199704

*12-1.25PX25.8-19.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010iAE101,CE100,EE101¥460199205-199212

main47715-50010iAE10#,CE100,EE101¥460199212-199704

SUB

main47715-50030iAE10#,CE100,EE101¥510199212-199704

MAIN

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140iCE100,EE100..LHD..SED¥390199610-199704

*EX-USSR SPEC

main47716-32031iCE100..LHD..SED¥390199205-199610

*EX-USSR SPEC

main47716-33010iAE10#,CE100,EE101¥390199205-199704

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33020iAE10#,CE100,EE101¥300199205-199704

main47717-20140iCE100,EE100..LHD..SED¥390199610-199704

*EX-USSR SPEC

main47717-32031iEE100¥390199205-199610

*EX-USSR SPEC

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-33010iAE10#,CE100,EE101¥240199205-199704

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-33020iAE10#,CE100,EE101¥240199205-199704

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iEE100¥12,900199205-199704

main47721-12160iCE100..LHD..SED¥3,410199205-199704

*EX-USSR SPEC

main47721-12210iAE10#,CE100,EE101¥1,430199205-199608

main47721-12211iAE10#,CE100,EE101¥6,600199608-199704

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iEE100¥12,900199205-199704

main47721-12160iCE100..LHD..SED¥3,410199205-199704

*EX-USSR SPEC

main47722-12030iAE10#,CE100,EE101¥6,200199205-199608

main47722-12031iAE10#,CE100,EE101¥10,500199608-199704

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12310iEE100¥42,100199205-199704

main47730-12400iCE100..LHD..SED¥23,700199205-199704

*EX-USSR SPEC

main47730-12450iAE10#,CE100,EE101¥44,600199205-199608

main47730-12451iAE10#,CE100,EE101¥28,000199608-199704

47731PISTON, FRONT DISC BRAKE

main47731-12150iEE100;CE100..LHD..SED¥4,950199205-199704

main47731-12180iAE10#,CE100,EE101¥2,520199205-199704

W(14 INCHES DISC WHEEL)

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iEE100;CE100..LHD..SED¥120199205-199704

main90522-64003iAE10#,CE100,EE101¥240199205-199704

W(14 INCHES DISC WHEEL)

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12070iEE100¥310199205-199401

main47743-12090iAE10#,CE100,EE101¥90199205-199704

main47743-32020iCE100..LHD..SED¥170199205-199401

*EX-USSR SPEC

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20120iAE10#,CE100,EE101¥270199312-199704

main47744-32010iEE100¥280199205-199704

*EX-USSR SPEC

main47744-33010iAE101,CE100,EE101¥270199205-199312

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040iCE100..LHD..SED¥270199205-199704

*EX-USSR SPEC

main47745-33010iAE101,CE100,EE101¥270199205-199312

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-20120iAE10#,CE100,EE101¥270199312-199704

main47744-33010iAE101,CE100,EE101¥270199205-199312

main47745-32040iEE100¥270199205-199704

*EX-USSR SPEC

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47745-33010iAE101,CE100,EE101¥270199205-199312

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12310iEE100¥42,100199205-199704

main47750-12400iCE100..LHD..SED¥23,700199205-199704

*EX-USSR SPEC

main47750-12450iAE10#,CE100,EE101¥44,600199205-199608

main47750-12451iAE10#,CE100,EE101¥44,400199608-199704

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iEE100;CE100..LHD..SED¥590199205-199704

main47769-50010iAE10#,CE100,EE101¥50199205-199704

W(14 INCHES DISC WHEEL)

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080iAE10#,CE100,EE101¥430199205-199704

W(14 INCHES DISC WHEEL)

sub47775-30070¥840

main47775-32010iEE100¥510199205-199704

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAE10#,CE100,EE10#¥120199205-199704

9010508164

main90105-08164¥90

27 parts on this diagram · 3 diagrams in section
