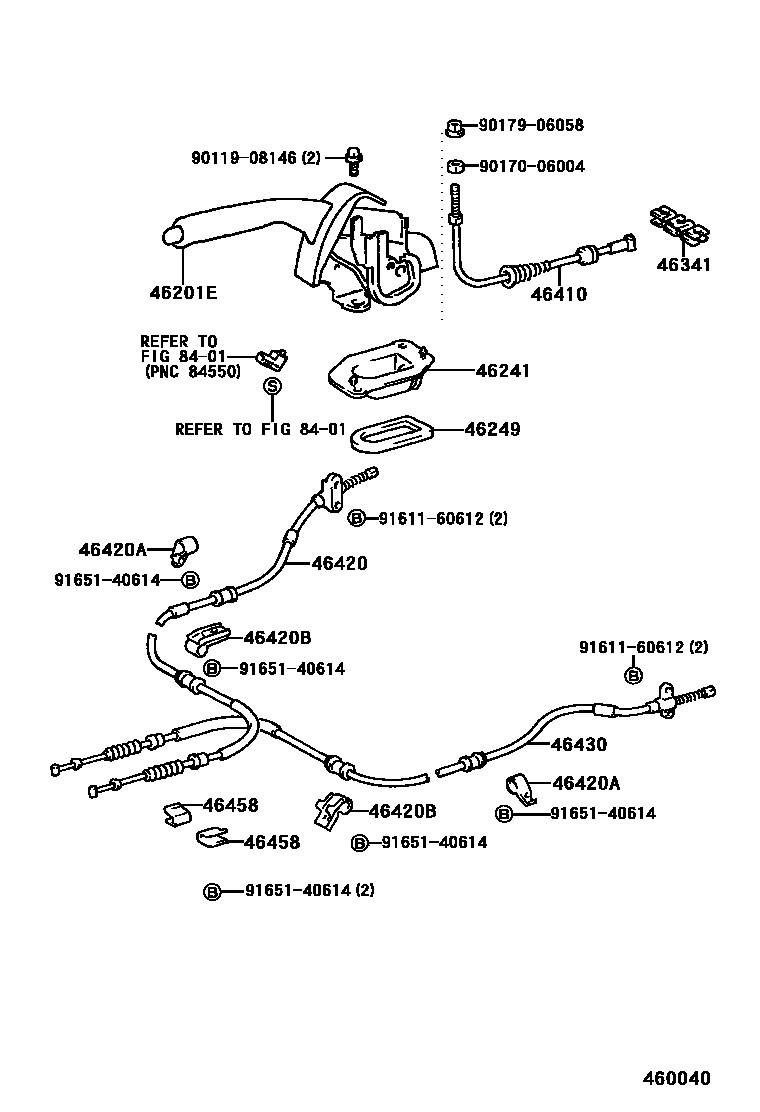

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02020-B0iAE101,EE101..GLI199306-199505

W(*HC),SHADOW GRAY,TRIM1#,(L)

sub46201-02021

sub46201-12160

main46201-02020-B0iAE101,EE101..GLI199306-199505

SHADOW GRAY,TRIM1#,(L)

sub46201-02021

sub46201-12160

main46201-02020-J0iAE101,EE101..GLI199306-199505

W(*HC),DARK,TRIM8#

sub46201-02021

sub46201-12160

main46201-02020-J0iAE101,EE101..GLI199306-199505

DARK,TRIM8#

sub46201-02021

sub46201-12160

main46201-02020-K0iAE101,EE101..SED..GLI199306-199505

TAUPE,TRIM9#,(L)

sub46201-02021

sub46201-12160

main46201-02020-K0iAE101,CE100,EE101..LHD..SED..(STD,XL,XLI)199306-199505

W(*HC),TAUPE,TRIM9#,(L)

sub46201-02021

sub46201-12160

main46201-12150-B0iAE101,CE100,EE10#..STD,XL,XLI199205-199505

SHADOW GRAY,TRIM1#

sub46201-12180

main46201-12150-J0iAE101,CE100,EE10#..STD,XL,XLI199205-199505

DARK BLUE,TRIM8#

sub46201-12180

main46201-12150-K0iEE101..SED..STD199205-199505

TAUPE,TRIM9#

sub46201-12180

main46201-12160-B0iAE101,CE100,EE101..LHD..(STD,XL,XLI)199205-199505

W(*HC),SHADOW GRAY,TRIM1#,(J)

sub46201-12190

main46201-12160-B0iAE101,CE100,EE101..LHD..(STD,XL,XLI)199205-199505

SHADOW GRAY,TRIM1#,(J)

sub46201-12190

main46201-12160-J0iAE101,EE101..GLI199205-199505

W(*HC),DARK BLUE,TRIM8#

sub46201-12190

main46201-12160-J0iAE101,EE101..GLI199205-199505

DARK BLUE,TRIM8#

sub46201-12190

main46201-12160-K0iAE101,CE100,EE101..LHD..SED..(STD,XL,XLI)199205-199505

W(*HC),TAUPE,TRIM9#,(J)

sub46201-12190

main46201-12160-K0iAE101,EE101..SED..GLI199205-199505

TAUPE,TRIM9#,(J)

sub46201-12190

main46201-12180-B0iAE10#,CE100,EE10#..STD,XL,XLI199505-199704

SHADOW GRAY,TRIM1#

sub46201-12180

main46201-12180-J0iAE10#,CE100,EE10#..STD,XL,XLI199505-199704

DARK BLUE,TRIM8#

sub46201-12180

main46201-12190-B0iAE101,EE101..GLI199505-199704

SHADOW GRAY,TRIM1#

sub46201-12190

main46201-12190-B0iAE10#,CE100,EE101..LHD..(STD,XL,XLI)199505-199704

W(*HC),SHADOW GRAY,TRIM1#

sub46201-12190

main46201-12190-J0iAE101,EE101..GLI199505-199704

W(*HC),DARK BLUE,TRIM8#

sub46201-12190

main46201-12190-J0iAE10#,CE100,EE101..LHD..(STD,XL,XLI)199505-199704

DARK BLUE,TRIM8#

sub46201-12190

46241BOOT, PARKING BRAKE LEVER

main46241-02010iAE101;CE100..LHD;EE101..GLI,STD;EE101..LHD..XLI199306-199505

(L)

main46241-12090iAE101;CE100..LHD;EE101..GLI,STD;EE101..LHD..XLI199306-199505

(J)

main46241-12090iAE101,CE100,EE10#199205-199306

main46241-12110iAE10#,CE100,EE10#199505-199704

46249SHIELD, PARKING BRAKE HOLE

main46249-02010iAE101;CE100..LHD;EE101..GLI,STD;EE101..LHD..XLI199306-199505

(L)

main46249-12010iAE10#,CE100,EE10#199205-199704

main46249-12010iAE101;CE100..LHD;EE101..GLI,STD;EE101..LHD..XLI199306-199505

(J)

46341EQUALIZER, PARKING BRAKE

main46341-12020iAE10#,CE100,EE10#199205-199704

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12210iAE101,CE100,EE10#199205-199505

main46410-12250iAE10#,CE100,EE10#199505-199704

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02030iAE101,CE100,EE10#199306-199704

(L)

main46420-12400iAE101,CE100,EE10#199205-199704

(J)

main46420-12480iAE103199505-199704

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01746iAE10#,CE100,EE10#199205-199704

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01744iAE101,CE100,EE10#199205-199704

LH

main90949-01745iAE103199505-199704

RH

main90949-01747iAE101,CE100,EE10#199205-199704

RH

main90949-01748iAE103199505-199704

LH

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02030iAE101,CE100,EE10#199306-199704

(L)

main46430-12300iAE101,CE100,EE10#199205-199704

(J)

main46430-12380iAE103199505-199704

46458RETAINER, CABLE

main46458-50010iAE10#,CE100,EE10#199205-199704

8401

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9161160612

main91611-60612

9165140614

main91651-40614

16 parts on this diagram · 1 diagram in section
