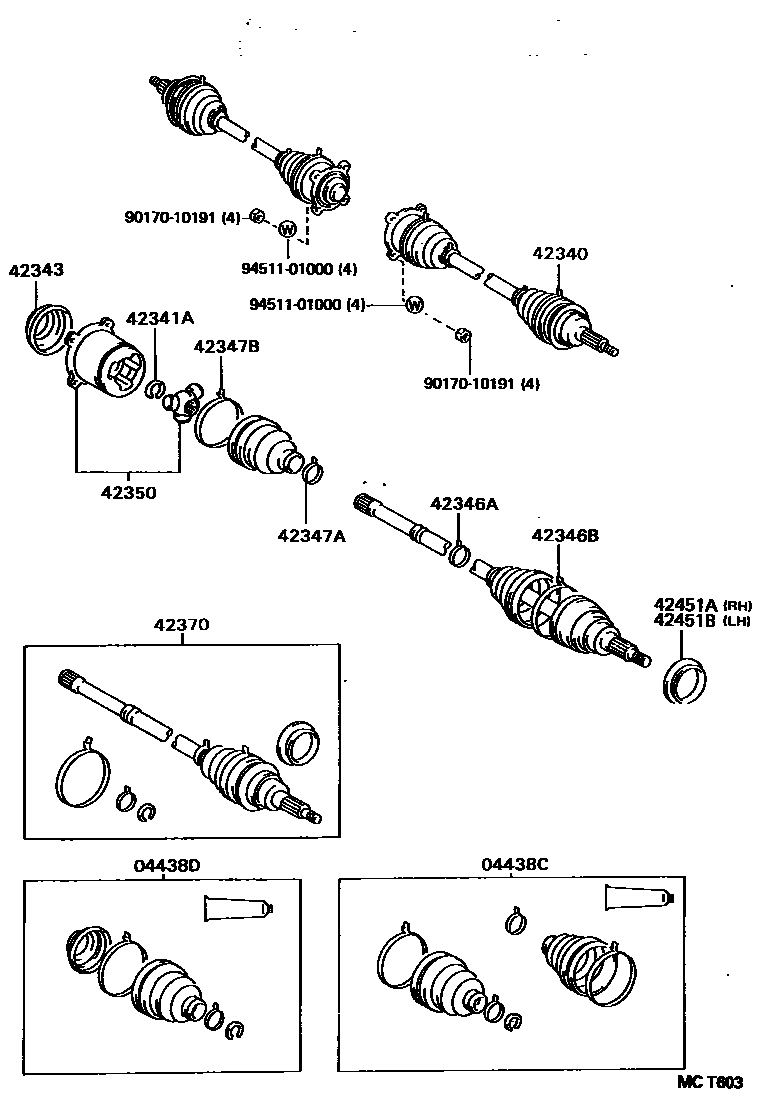

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04438-20290iAE103¥10,800199505

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04438-20240iAE103¥6,700199505

sub04438-20430¥6,700

42340SHAFT ASSY, REAR DRIVE

main42340-12030iAE103¥59,100199505-199601

sub42340-12050¥57,400

main42340-12040iAE103¥59,100199505-199601

W(*66)

sub42340-12060¥57,400

main42340-12050iAE103¥57,400199601

sub42340-12051¥57,500

sub90178-22001¥310

main42340-12060iAE103¥57,400199601

W(*66)

sub42340-12061¥57,500

sub90178-22001¥310

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-23024iAE103¥170199505

42343COVER, OUTBOARD JOINT END

main42343-14010iAE103¥770199505

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-16010iAE103¥140199505

ID=32.7

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-16020iAE103¥280199505

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-16030iAE103¥660199505

ID=35.75

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14020iAE103¥630199505

42350JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

main42350-14010iAE103¥18,100199505

sub42360-22040¥19,900

42370SHAFT ASSY, REAR DRIVE OUTBOARD JOINT

main42370-19125iAE103¥44,800199505-199601

sub42370-19126¥44,900

main42370-19126iAE103¥44,900199601

sub42370-19127¥44,900

sub90178-22001¥310

main42370-19135iAE103¥46,800199505-199601

W(*66)

sub42370-19136¥46,900

main42370-19136iAE103¥46,900199601

W(*66)

sub42370-19137¥47,000

sub90178-22001¥310

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-32010iAE103¥1,290199505

main43247-12010iAE103¥780199505

W(ABS)

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-32010iAE103¥1,290199505

main43247-12010iAE103¥780199505

W(ABS)

9017010191

main90170-10191¥110

9451101000

main94511-01000¥110

15 parts on this diagram · 3 diagrams in section
