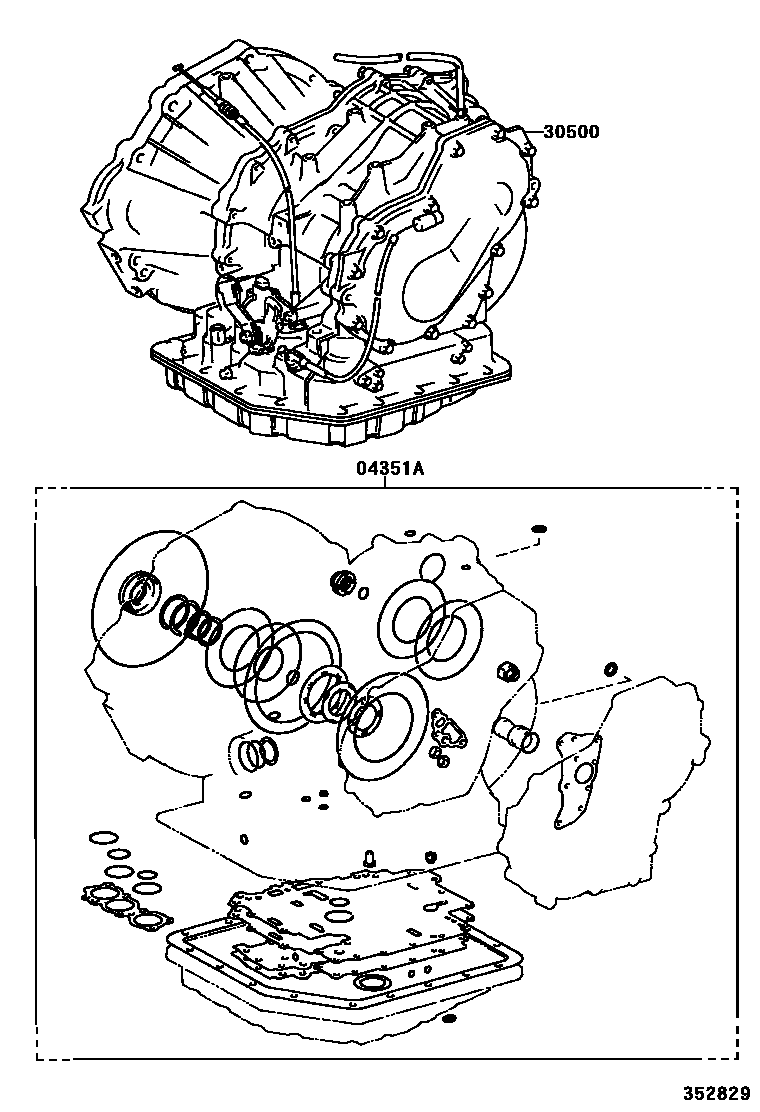

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12070i199205-199704

main04351-12080i199205-199402

main04351-12110i199402-199704

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12580i199205-199505

main30500-12890i199205-199505

main30500-1A120i199505-199704

main30500-1A300i199505-199605

main30500-1A330i199605-199704

2 parts on this diagram · 2 diagrams in section
