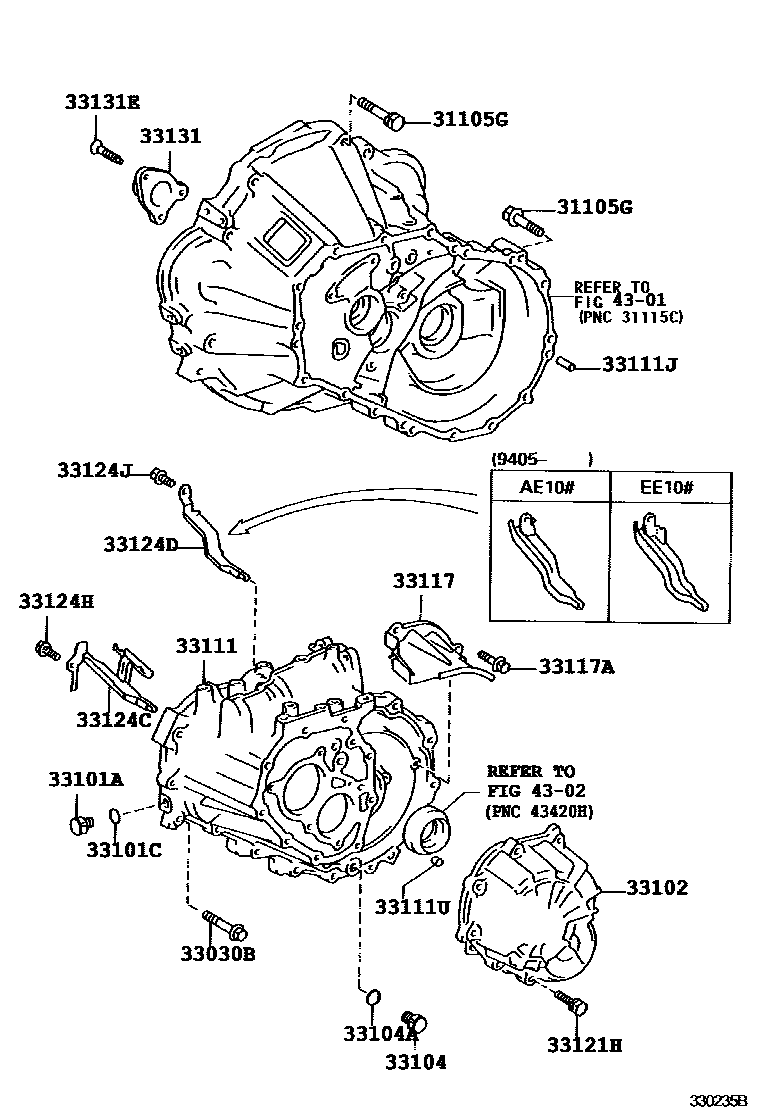

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C52 0002 1S50 0003 1E55F,E55F5

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCE100199205

*8-1.25PX18-15

sub91641-H0820

main90105-10077iAE10#,CE100..5F199205

*10-1.25PX43-26

main90105-10097iEE10#..5F199205

*10-1.25PX60-22

main90119-12042iAE101..5F199205

*12-1.25PX75-30

main90119-12128iAE103199505

*12-1.25PX96-30

main90119-12168iAE10#..5F199205

*12-1.25PX55-30

main91611-61025iEE100199205

*10-1.25PX25-25

sub91612-61025

main91619-61260iEE10#..5F199205

*12-1.25PX60-30

main91621-60614iEE101..5F199205

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCE100199205

*8-1.25PX45-27.5

sub90105-08430

main90105-08064iAE101..5F199205

*8-1.25PX51-28

sub90105-08353

main90105-08086iAE101..5F199205

*8-1.25PX45-27.5

main90105-08126iAE103199505

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE101,EE10#..5F199205-199306

main90341-18033iCE100199205-199306

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAE10#,CE100,EE10#..5F199205

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10021iEE10#..5F199205-199208

sub33102-10022

main33102-10022iEE10#..5F199208-199504

sub33102-10023

main33102-10023iEE10#..5F199504

main33102-12021iAE101..5F199205

main33102-12041iAE103199505

sub33102-12042

main33102-33020iCE100199205

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE10#,CE100,EE10#..5F199205

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE10#,CE100,EE10#..5F199205

33111CASE, MANUAL TRANSMISSION

main33101-12160iAE103199505-199704

sub33101-12161

sub90311-50027

main33111-10071iEE10#..5F199205-199405

sub33111-16050

sub33124-10021

main33111-16040iAE101..5F199205-199405

sub33111-16070

sub90109-12073

main33111-16050iEE10#..5F199405-199505

sub33111-16080

sub90109-12073

main33111-16051iEE10#..5F199505-199704

sub33111-16052

sub90109-12073

main33111-16060iAE101..5F199405-199505

sub33111-16070

sub90109-12073

main33111-16061iAE101..5F199505-199704

sub33111-16062

sub90109-12073

main33111-33030iCE100199205-199411

sub33111-33040

main33111-33031iCE100199411-199704

sub33111-32030

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAE10#,EE10#..5F199205

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAE101..5F199205

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010iAE101,EE10#..5F199205-199505

main33117-20020iAE103199505

main33117-32011iCE100199205

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAE101,CE100,EE10#..5F199205-199505

sub91641-H0820

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273iCE100199205

main90119-08494iEE10#..5F199205-199410

sub90119-08373

main90119-08630iAE103199505

main90119-08A34iEE10#..5F199410

sub90119-08373

main91611-60835iAE101..5F199205

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10010iEE10#..5F199205-199504

main33124-10012iEE10#..5F199504

main33124-12010iAE101..5F199205-199503

main33124-12012iAE101..5F199503

sub33124-20050

main33124-12030iAE103199505

main33124-33010iCE100199205

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10020iEE10#..5F199205-199405

main33124-10021iEE10#..5F199405

main33124-12020iAE101..5F199205-199405

main33124-12021iAE101..5F199405

main33124-12041iAE103199505

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iAE103199505

sub90119-08830

main91611-60820iAE101,EE10#..5F199205

sub91611-G0820

main91651-60618iCE100199205

33124JBOLT, W/WASHER

main91611-60820iAE101,EE10#..5F199205

sub91611-G0820

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAE101..5F199205-199608

sub33131-12080

main33131-12080iAE101..5F199608

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE101..5F199205

4301

4302
