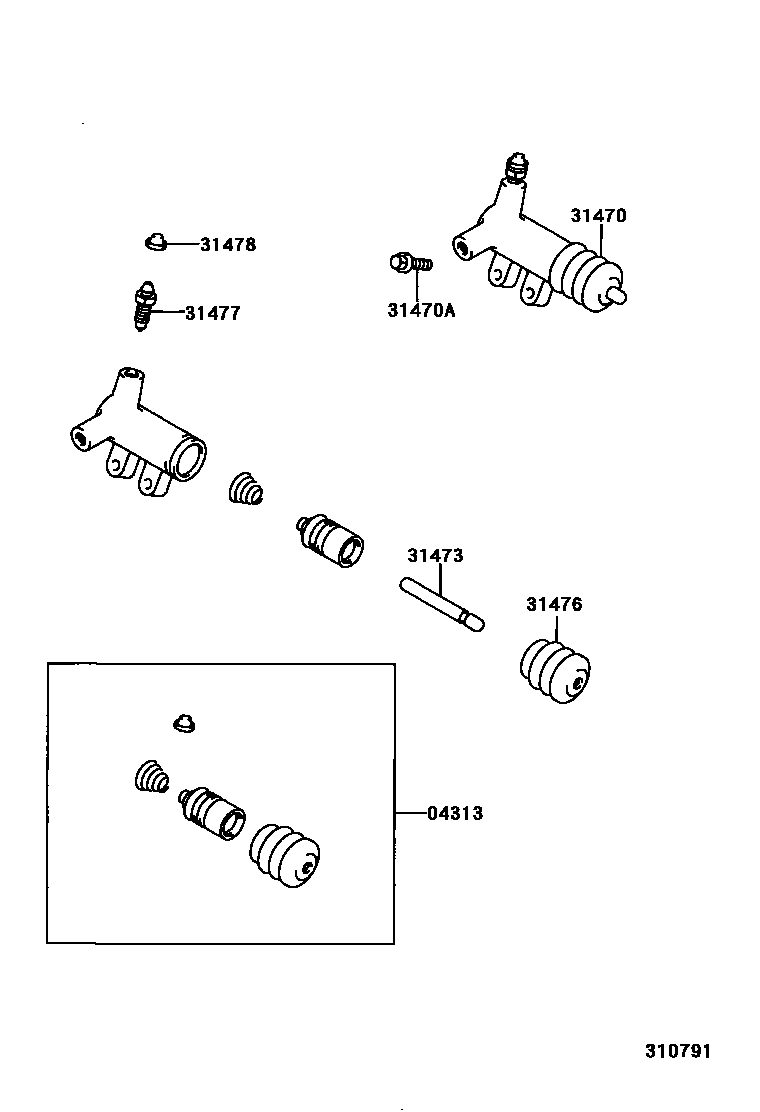

CLUTCH RELEASE CYLINDER

0001 1C52,C150,E55F,E55F5 0002 1S50

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iCE100,EE10#..5F¥800199205-199401

main04313-17010iCE100¥780199401-199704

main04313-17020iEE10#..5F¥990199401-199704

main04313-22030iAE10#..5F¥860199301-199704

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10012iEE10#..5F¥7,400199205-199509

main31470-10040iEE10#..5F¥8,700199509

main31470-12092iAE101..5F¥7,100199205-199301

sub31470-12093¥7,300

main31470-12093iAE10#..5F¥7,300199301

main31470-32022iCE100¥7,400199205

sub31470-32023¥7,400

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAE10#,EE10#..5F¥170199205

main91611-60825iCE100¥140199205

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCE100,EE10#..5F¥720199401

main31473-32010iAE101,CE100,EE10#..5F¥450199205-199401

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE10#,CE100,EE10#..5F¥230199205

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAE10#,CE100,EE10#..5F¥200199205

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAE10#,CE100,EE10#..5F¥160199205

7 parts on this diagram · 2 diagrams in section
