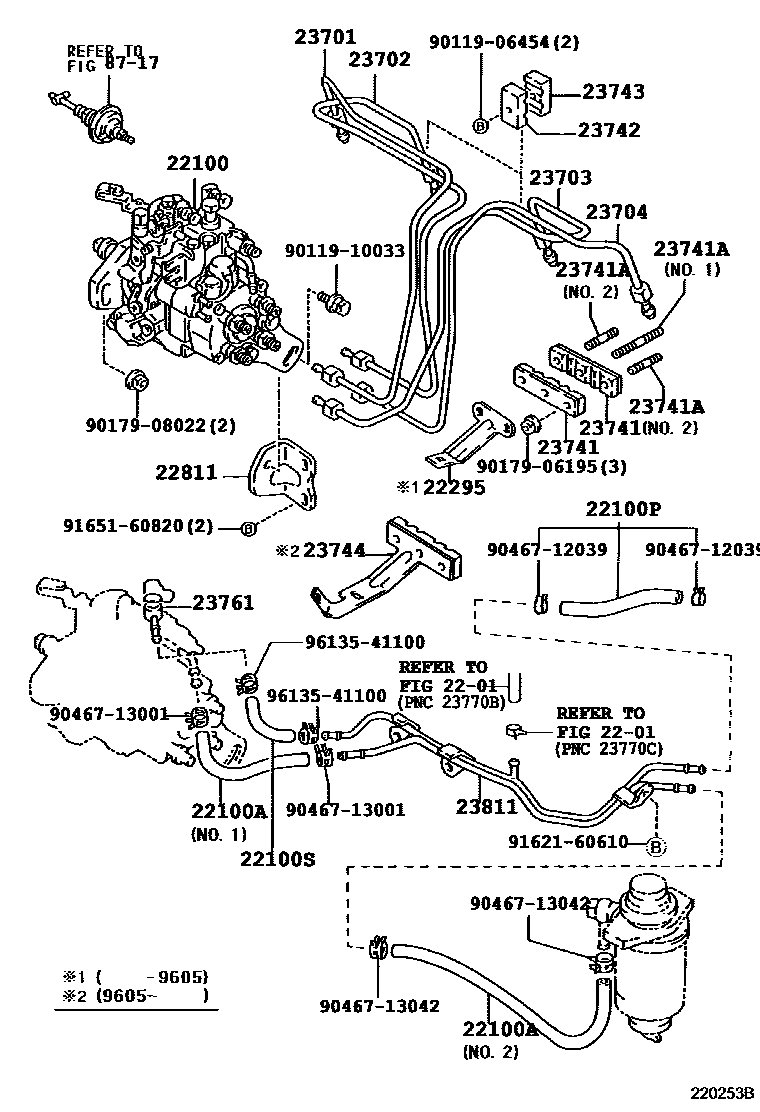

INJECTION PUMP ASSEMBLY
2201
22100PUMP ASSY, INJECTION OR SUPPLY
COLD SPEC & EXHAUST EMISSION CONTROL(ECE)
W(POWER STEERING)
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER)
W(ANTI-THEFT DEVICE)
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
NO.2
NO.1
EXHAUST EMISSION CONTROL ECE W/O(CONVERTER)
NO.1
22100PHOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
sub95337-06020
22295BRACKET, INJECTION PUMP CONNECTOR
22811STAY, INJECTION PUMP, NO.1
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)
NO.2
23743CLAMP, INJECTION PIPE, NO.3
23744CLAMP, INJECTION PIPE, NO.4
23761PIPE, NOZZLE LEAKAGE, NO.1
8717
9011906454
main90119-06454
9011910033
main90119-10033
9017906195
main90179-06195
9017908022
main90179-08022
9046712039
main90467-12039
9046713001
main90467-13001
9046713042
main90467-13042
9162160610
main91621-60610
9165160820
main91651-60820
9613541100
main96135-41100
29 parts on this diagram · 1 diagram in section
