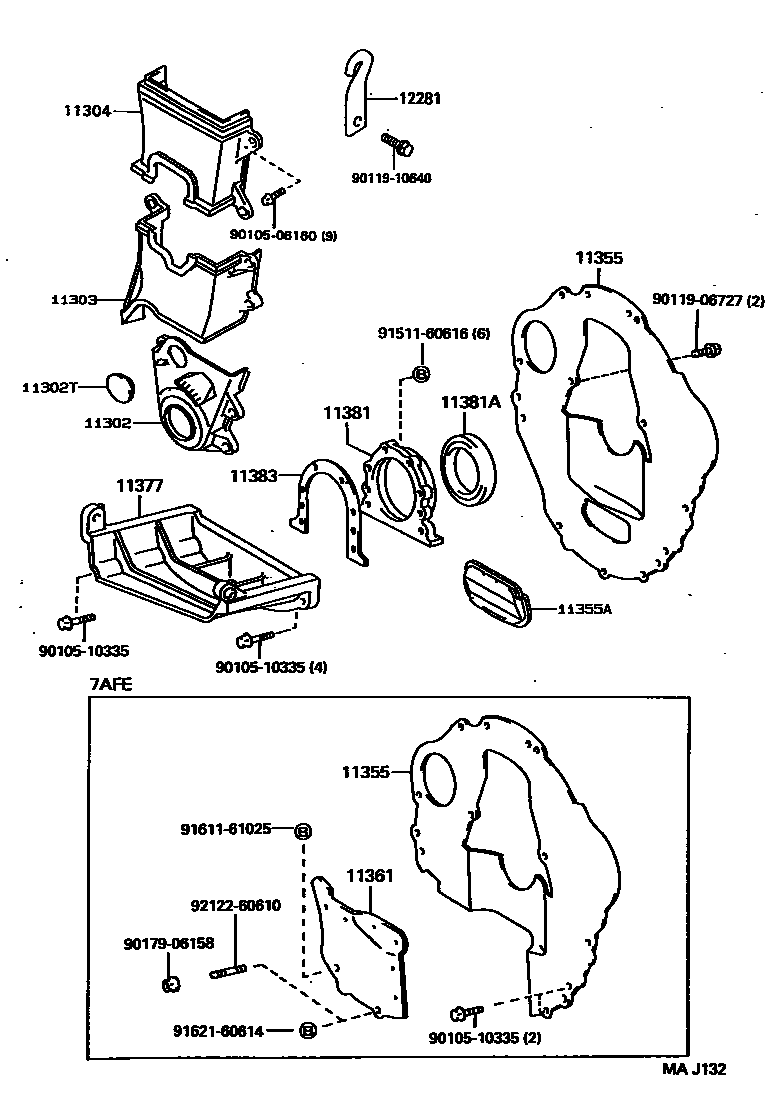

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11060i4EFE..EE101199205-199405

sub11302-11062

sub11328-11041

sub90387-06015

main11302-11062i4EFE..EE101199405

main11302-15050i4AFE,7AFE..AE10#199205

11302TPLUG, HOLE

main90950-01783i4AFE,7AFE..AE10#199205

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-11030i4EFE..EE101199205-199405

sub11303-11031

sub90387-06015

main11303-11031i4EFE..EE101199405

main11303-15050i4AFE..AE101199205

main11303-16050i7AFE..AE103199505

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15030i4AFE..AE101199205

main11304-16060i7AFE..AE103199505

11355PLATE, REAR END

main11355-10011i2E,4EFE..EE10#..5F199205-199611

sub11355-10012

main11355-10012i2E,4EFE..EE10#..5F199611

main11355-11011i4EFE..EE101..3FC199205-199611

sub11355-11012

main11355-11012i4EFE..EE101..3FC199611

main11355-15070i4AFE..AE101..5F199205

main11355-15080i4AFE..AE101..4FC199205

main11355-16060i7AFE..AE103199505

main11355-64051i2C..CE100199205

sub11355-64052

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AFE..AE101..4FC199205

main90950-01548i4EFE..EE101..3FC199205

11361COVER, FLYWHEEL HOUSING UNDER

main11361-16050i7AFE..AE103199505

11377STIFFENER, REAR END PLATE

main11377-11010i4EFE..EE101199205-199505

sub11377-11011

main11377-11011i4EFE..EE101199505

main11377-15010i4AFE..AE101199205-199208

sub11377-15011

main11377-15011i4AFE..AE101199208-199505

sub11377-15012

main11377-15012i4AFE..AE101199505

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i2E,4EFE..EE10#199205-199407

main11381-10021i2E,4EFE..EE10#199407

main11381-15010i4AFE,7AFE..AE10#199205

main11381-64012i2C..CE100199205

sub11381-64020

11381ASEAL, ENGINE REAR OIL

main90311-70007i4AFE,7AFE..AE10#199205

main90311-75009i2E,4EFE..EE10#199205

main90311-90008i2C..CE100199205

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i4AFE,7AFE..AE10#199205

12281HANGER, ENGINE, NO.1

main12281-11031i4EFE..EE101199505

main12281-15050i4AFE,7AFE..AE10#199309

9010506160

main90105-06160

9010510335

main90105-10335

9011906727

main90119-06727

9011910640

main90119-10640

9017906158

main90179-06158

9151160616

main91511-60616

9161161025

main91611-61025

9162160614

main91621-60614

9212260610

main92122-60610

21 parts on this diagram · 4 diagrams in section
