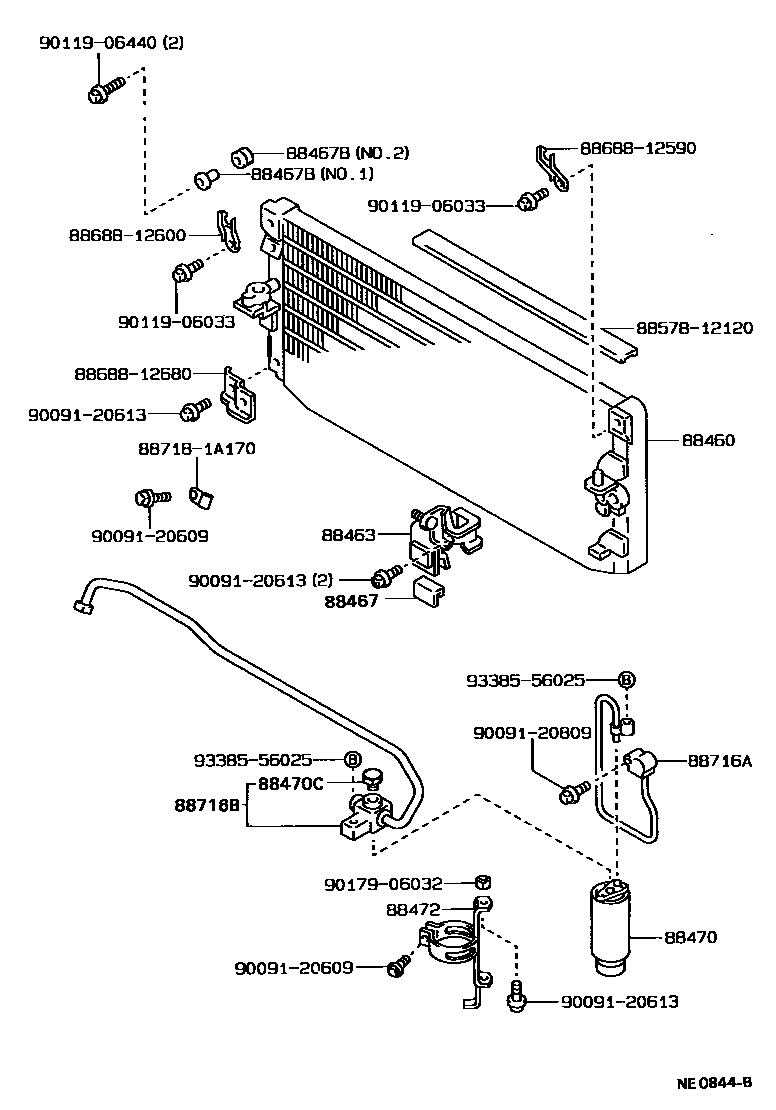

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88460CONDENSER ASSY, COOLER

main88460-12370iEE90..LHD..CBR;AE92,CE90..LHD..5F..(CBR,DSL)¥32,500198705-199205

88463BRACKET, COOLER CONDENSER, NO.1

main88463-12040iAE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL)198710-198811

main88463-12041iAE92..LHD..5F..CBR198811-199205

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12080iAE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL)198710-198811

main88467-12081iAE92..LHD..5F..CBR198811-199205

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-14070iAE95..LHD..CBR198705-199205

NO.1

main88467-20040iAE92..LHD..5F..CBR198705-199205

NO.2

88470RECEIVER & DRYER ASSY, COOLER

main88471-12020iAE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL)¥4,590198705-198812

L=167

sub88471-12060¥3,420

main88471-16040iEE90..LHD..CBR;AE92,CE90..LHD..5F..(CBR,DSL)¥4,600198908-199205

sub88471-16050¥3,420

main88471-16040iAE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL)¥4,600198812-198908

L=187

sub88471-16050¥3,420

88470CBOLT, FUSE

main88475-12020iEE90..LHD..CBR;AE92,CE90..LHD..5F..(CBR,DSL)198705-199205

88472BRACKET, RECEIVER TANK, NO.1

main88473-12040iAE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL)198710-198811

main88473-12070iCE90,EE90..LHD..(CBR,DSL)198811-199205

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-12240iAE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL)¥5,200198705-198812

main88726-12340iAE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL)¥5,100198812-199205

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-12250iCE90,EE90..LHD;AE92..LHD..5F..CBR¥7,600198705-198709

main88726-12251iAE92..LHD..5F..CBR;AE95,CE90,EE90..LHD..(CBR,DSL)¥7,500198709-199205

8857812120PAKING, COOLER AIR DUCT

main88578-12120

8868812590BRACKET, COOLER DIAPHRAGM

main88688-12590

8868812600BRACKET, COOLER DIAPHRAGM

main88688-12600

8868812680BRACKET, COOLER DIAPHRAGM

main88688-12680

887181A170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A170

9009120609

main90091-20609

9009120613

main90091-20613

9009120809

main90091-20809¥0

9011906033

main90119-06033¥130

9011906440

main90119-06440

9017906032

main90179-06032¥120

9338556025

main93385-56025¥0

21 parts on this diagram · 5 diagrams in section
