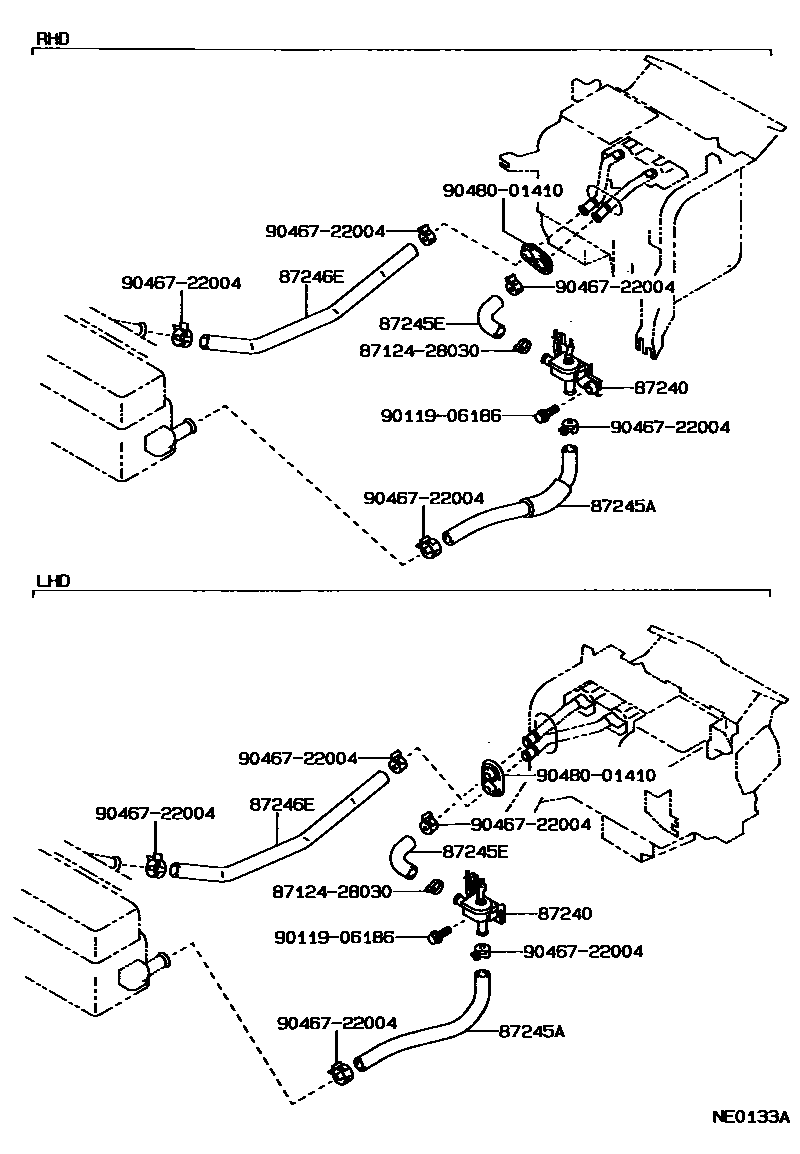

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87240VALVE ASSY, HEATER WATER

main87240-12230iAE9#,CE90,EE90..RHD¥3,230198705-199205

main87240-12240iAE9#,CE90,EE90..LHD¥3,210198705-199205

87245AHOSE, HEATER WATER, INLET A

main87245-12840iAE9#,EE90..RHD..CBR¥910198705-198905

sub87245-12841¥1,070

main87245-12841iAE9#,EE90..RHD..CBR¥1,070198905-199205

main87245-1A160iEE90..LHD;AE92..LHD..(LB,SED)..CBR¥1,120198705-199205

main87245-1A170iCE90..RHD¥1,350198705-199205

main87245-1A180iAE92..RHD..EFI¥2,020198705-198908

main87245-1A220iCE90..LHD¥1,410198705-199205

main87245-1A230iAE92..LHD..GTI¥2,030198705-199205

main87245-1A390iAE92..WG¥1,620198807-198908

main87245-1A390iAE92..WG;AE95..LHD¥1,620198708-199205

PLANT.A31

87245EHOSE, HEATER WATER, INLET E

main87245-1A300iAE9#,CE90,EE90..RHD¥780198705-199205

PLANT.A31,M12

main87245-1A300iAE9#,CE90,EE90..RHD¥780198908-199205

main87245-1A310iAE9#,CE90,EE90..LHD¥680198705-198908

sub87245-1A380¥670

main87245-1A380iAE9#,CE90,EE90..LHD¥670198908-199205

87246EHOSE, HEATER WATER, OUTLET E

main87245-1A210iEE90..RHD¥2,690198705-198905

sub87245-1A211¥2,410

main87245-1A211iEE90..RHD¥2,410198905-199205

sub87245-1A670¥2,420

main87245-1A240iAE9#..RHD..CBR¥2,730198705-198905

sub87245-1A241¥2,740

main87245-1A241iAE92..RHD..CBR¥2,740198905-199106

main87245-1A242iAE92..RHD¥2,900199106-199205

main87245-1A250iCE90..RHD¥1,320198705-199205

sub87245-1A510¥1,530

main87245-1A260iAE92..RHD..EFI¥1,970198705-198908

main87245-1A270iEE90..LHD;AE92..LHD..(LB,SED)..CBR¥2,410198705-198908

sub87245-1A271¥2,260

main87245-1A271iEE90..LHD¥2,260198908-199112

sub87245-1A272¥2,260

main87245-1A272iEE90..LHD¥2,260199112-199205

sub87245-1A273¥2,290

main87245-1A280iCE90..LHD¥1,240198705-199205

sub87245-1A600¥1,420

main87245-1A290iAE92..LHD..EFI¥2,000198705-198708

sub87245-1A400¥2,290

main87245-1A330iAE92..LHD..(GL,GLI,XL,XLI)¥2,420198708-199106

main87245-1A331iAE92..LHD..(GL,GLI,XL,XLI)¥2,860199106-199205

sub87245-1A332¥2,870

main87245-1A400iAE92..LHD..GTI¥2,290198708-199205

main87245-1A410iAE95..RHD¥3,280198712-199009

main87245-1A420iAE95..LHD¥3,030198712-199009

8712428030CLAMP, HEATER

main87124-28030

9011906186

main90119-06186¥140

9046722004

main90467-22004¥330

9048001410

main90480-01410

8 parts on this diagram · 4 diagrams in section
