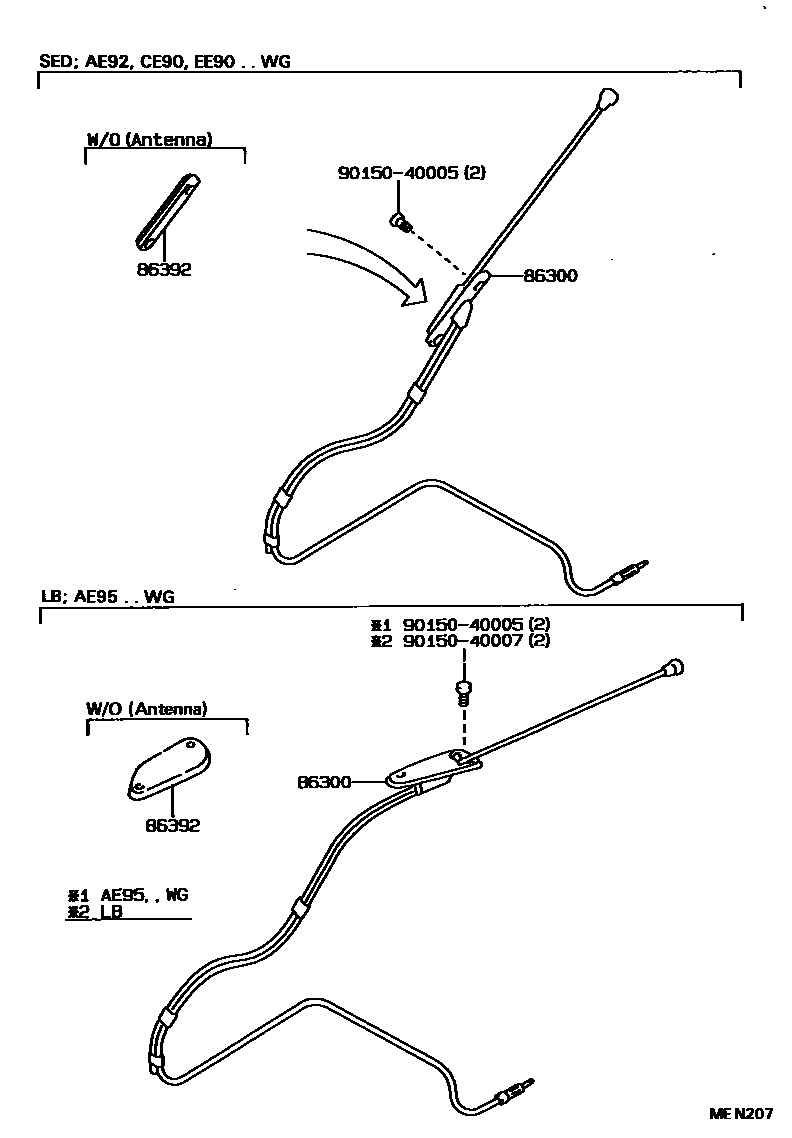

ANTENNA

86300ANTENNA ASSY, W/HOLDER

main86300-12320iAE92,EE90..RHD..LB¥5,800198705-199205

main86300-12330iAE92,CE90,EE90..LHD..LB¥6,000198705-199205

main86300-12360iAE95..RHD..WG¥5,800198802-199009

main86300-12370iAE95..LHD..WG¥5,800198802-199009

main86300-12380iAE92,CE90,EE90..SED,WG¥5,900198705-198710

sub86300-12381¥5,800

main86300-12381iAE95..SED;AE92,CE90,EE90..SED,WG¥5,800198710-199205

86392ORNAMENT, ANTENNA

main86392-12090iAE92,CE90,EE90..LB¥640198705-199205

main86392-12120iAE95..RHD..WG¥940198802-199009

main86392-12130iAE95..LHD..WG¥940198802-199009

main86392-12140iAE95..SED;AE92,CE90,EE90..SED,WG¥740198705-199205

9015040005

main90150-40005¥60

9015040007

main90150-40007¥120

4 parts on this diagram · 1 diagram in section
