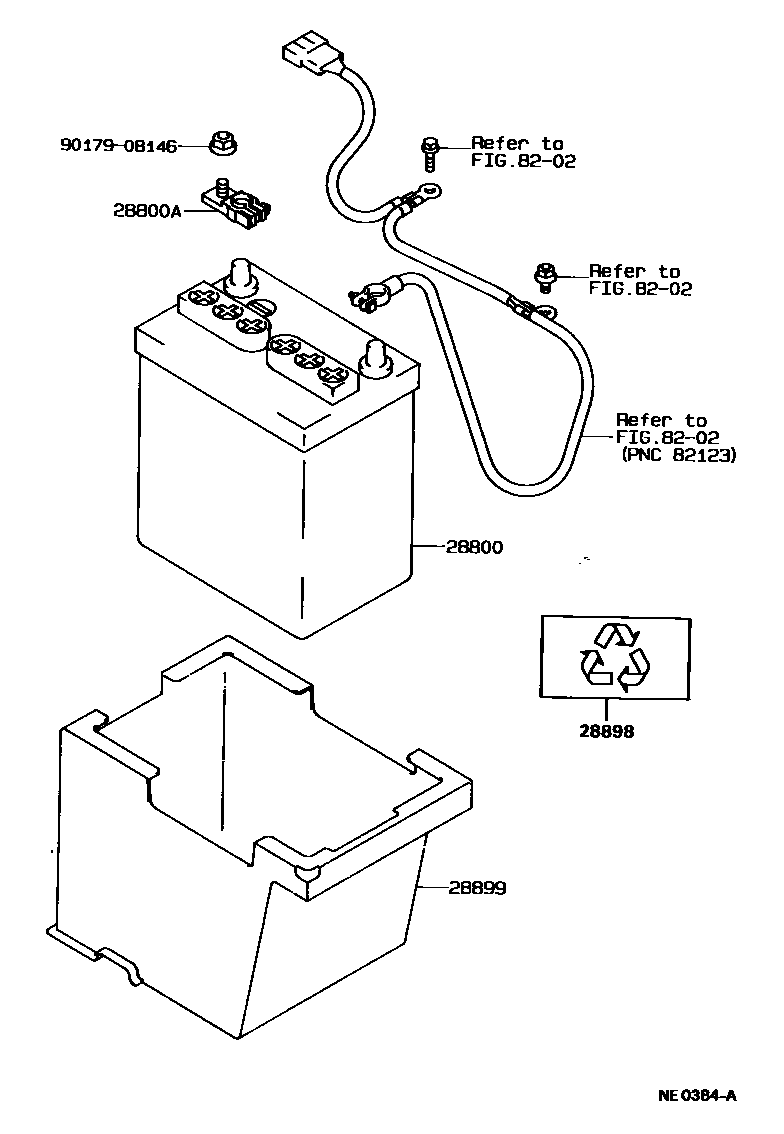

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i4AF#,4AGE..AE9#198705-198908

55D23L,GS

sub28800-42030

main28800-31021i4AF#,4AGE,2E#..AE92,EE90198705-199205

32C24L

sub28800-31010

main28800-31021i4AFE..AE95;4AF,4AGE,2E..AE9#,EE90198705-199008

32C24L,GS

sub28800-31010

main28800-31200i2E..EE90198705-198908

50D20L,GS

main28800-31210i2E..EE90198705-198908

50D20L,YUASA

main28800-31220i2E..EE90198705-198908

50D20L,SHINKOBE

main28800-31230i2E..EE90198705-198908

50D20L,MATSUSHITA

main28800-31240i2E..EE90198705-198908

50D20L,FRUKAWA

main28800-42030i4AF#..AE92..LHD..3FC198705-199205

55D23L

sub28800-64010

main28800-42030i4AF#,4AGE..AE9#198802-198908

55D23L,MATSUSHITA

sub28800-64010

main28800-42030i4AF#,4AGE..AE9#198908-199205

55D23L,GS

sub28800-64010

main28800-54200i1C..CE90198705-198908

80D26L

sub28800-64130

main28800-64070i1C..CE90198705-198908

95D31L

sub28800-64180

main28800-64130i1C..CE90198908-199205

80D26L

sub28800-64132

main28800-64180i1C..CE90198908-199205

95D31L

sub28800-64182

main28800-70060i2E#..EE90198908-199205

50D20L

sub28800-64030

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i4AF#,2E#..AE9#,EE90198705-199205

main90982-05037i4AGE,1C..AE92,CE90198705-199205

28898PLATE, BATTERY

main28898-50070i2EE..EE90..MTM;4AFE,4AGE,1C..AE92,CE90..LHD199110-199205

NORWAY SPEC

28899INSULATOR, BATTERY

main28899-64010i1C..CE90198705-199205

main28899-64020i1C..CE90198705-199205

BATTERY=95D31L

8202

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section
