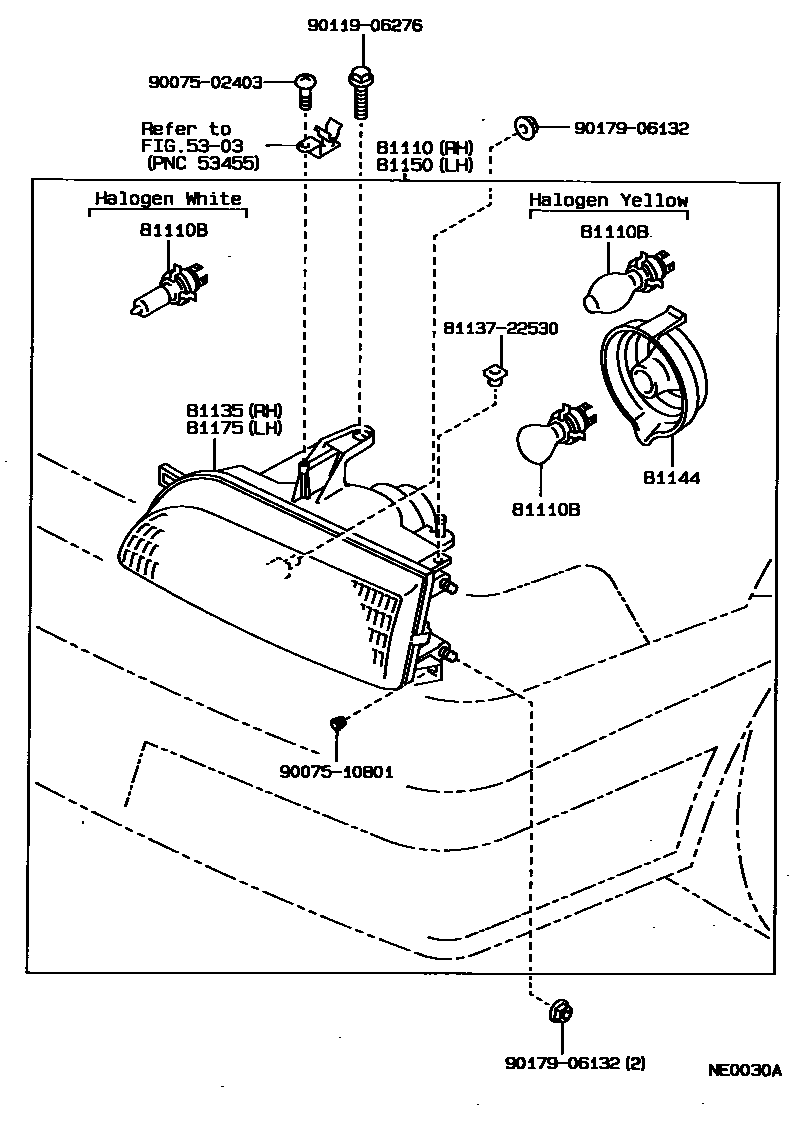

HEADLAMP

0001 1 0003 1

5303

81110HEADLAMP ASSY, RH

main81110-1A700iAE92,EE90..RHD..LB..CBR198705-199205

main81110-1A710iEE90..RHD..LB..XL198705-199205

HALOGEN WHITE

main81110-1A720iAE92,EE90..RHD..LB..CBR198705-199205

RH TRAFIC SPEC

main81110-1A730iEE90..RHD..LB..XL198705-198908

RH TRAFIC SPEC

main81110-1A730iAE92,EE90..LHD..LB..(GL,GLI,XL,XLI)198705-199205

HALOGEN WHITE

main81110-1A730iAE92,EE90..RHD..LB198908-199205

RH TRAFIC SPEC,HALOGEN WHITE

main81110-1A730iAE92..LHD..GTI198705-199205

main81110-1A740iAE92,CE90,EE90..LHD..LB198705-199205

HALOGEN YELLOW

main81110-1A790iAE95..RHD..SED;CE90,EE90..RHD..(SED,WG)198705-198908

main81110-1A800iEE90..WG..GL;CE90,EE90..RHD..(SED,WG)..XL198705-199205

HALOGEN WHITE

main81110-1A810iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)198705-199205

main81110-1A810iAE95..RHD..SED;CE90,EE90..RHD..(SED,WG)198705-199205

RH TRAFIC SPEC

main81110-1A820iCE90..LHD..SED199103-199205

HALOGEN WHITE,*EX-USSR

main81110-1A820iCE90..LHD..SED198705-199205

HALOGEN WHITE

main81110-1A820iEE90..WG..GL;CE90,EE90..RHD..(SED,WG)..XL198705-199205

RH TRAFIC SPEC,HALOGEN WHITE

main81110-1A830iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)198705-199205

HALOGEN YELLOW

main81110-1A860iAE95..RHD..WG198802-198908

main81110-1A870iAE95..RHD..WG198908-199009

main81110-1A870iAE95..RHD..WG198802-198908

HALOGEN WHITE

main81110-1A880iAE95..RHD..WG198802-199009

RH TRAFIC SPEC

main81110-1A880iAE95..LHD..WG198802-199009

main81110-1A890iAE95..LHD..WG198802-199009

HALOGEN WHITE

main81110-1A890iAE95..RHD..WG198908-199009

RH TRAFIC SPEC,HALOGEN

main81110-1A890iAE95..RHD..WG198802-198908

RH TRAFIC SPEC,HALOGEN WHITE

main81110-1E010iAE95..LHD..WG198802-199009

HALOGEN YELLOW

main81110-1E110iAE95..LHD..SED..CBR;AE92,CE90,EE90..LHD..(SED,WG)198908-199205

HALOGEN WHITE,*FRG

main81110-1E120iAE92,CE90,EE90..LHD..LB198908-199205

HALOGEN WHITE,*FRG

main81110-1E130iAE95..WG..EFI198908-199009

HALOGEN WHITE,*FRG

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iAE9#,CE90,EE90..GL,GLI,STD,XL,XLI198705-199205

12V 45/40W,WHITE

main90981-13015iCE90..LHD..(LB,SED)198705-199205

12V 60/55W,*HAL *WH

sub90981-13058

main90981-13016iAE9#,CE90,EE90..LHD198705-199205

12V 60/55W,*HAL *YE

sub90981-13H01

81135UNIT ASSY, HEADLAMP, RH

main81130-1A700iEE90..RHD..LB;AE9#..RHD..(LB,WG)..CBR198705-199205

main81130-1A710iEE90..RHD..LB..XL198705-199205

HALOGEN WHITE

main81130-1A720iAE95..LHD..WG;AE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)198705-199205

RH TRAFIC SPEC

main81130-1A730iEE90..RHD..LB..XL198705-199205

HALOGEN

main81130-1A730iAE95..LHD..WG198908-199009

HALOGEN YELLOW

main81130-1A730iAE92..LHD..GTI198705-199205

main81130-1A730iAE92,EE90..RHD..LB198908-199205

RH TRAFIC SPEC,HALOGEN WHITE

main81130-1A790iAE95..RHD..SED;CE90,EE90..RHD..(SED,WG)198705-198908

main81130-1A800iEE90..WG..GL;CE90,EE90..RHD..(SED,WG)..XL198705-199205

HALOGEN WHITE

main81130-1A810iEE90..WG..GL;AE95..RHD..SED;EE90..RHD..(SED,WG)..5F..XL198705-199205

RH TRAFIC SPEC

main81130-1A810iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)198705-199205

main81130-1A820iEE90..WG..GL;CE90,EE90..RHD..(SED,WG)..XL198705-199205

RH TRAFIC SPEC,HALOGEN WHITE

main81130-1A820iCE90..LHD..SED198705-199205

HALOGEN

main81130-1E110iAE92,CE90,EE90..LHD..(SED,WG)..MTM..(DSL,EFI)198908-199205

HALOGEN WHITE

main81130-1E120iAE95..WG..EFI;EE90..LB..5F..EFI;AE92,CE90..LB..(DSL,EFI)198908-199205

HALOGEN WHITE

81144COVER, HEADLAMP, NO.1

main81139-20730iAE9#,CE90,EE90198705-199205

81150HEADLAMP ASSY, LH

main81160-1A700iAE92,EE90..RHD..LB..CBR198705-199205

main81160-1A710iAE92,EE90..RHD..LB..GL198705-199205

HALOGEN WHITE

main81160-1A720iAE92,EE90..RHD..LB..CBR198705-199205

RH TRAFIC SPEC,HALOGEN WHITE

main81160-1A730iEE90..RHD..LB..XL198705-199205

RH TRAFIC SPEC,HALOGEN WHITE

main81160-1A730iAE92,EE90..LHD..LB..(GL,GLI,XL,XLI)199202-199205

HALOGEN WHITE,*EX-USSR

main81160-1A730iAE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)198705-199202

HALOGEN WHITE

main81160-1A730iAE92..LHD..GTI198705-199205

main81160-1A740iAE92,CE90,EE90..LHD..LB198708-199205

HALOGEN YELLOW

main81160-1A790iAE95..RHD..SED;CE90,EE90..RHD..(SED,WG)198705-198908

main81160-1A800iEE90..WG..GL;CE90,EE90..RHD..(SED,WG)..XL198705-199205

HALOGEN WHITE

main81160-1A810iEE90..WG..GL;AE95..RHD..SED;EE90..RHD..(SED,WG)..5F..XL198908-199205

RH TRAFIC SPEC

main81160-1A810iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)198705-199205

main81160-1A810iAE95..RHD..SED;CE90,EE90..RHD..(SED,WG)198705-198908

RH TRAFIC SPEC,HALOGEN

main81160-1A820iCE90..LHD..SED198705-199205

HALOGEN WHITE

main81160-1A820iEE90..WG..GL;CE90,EE90..RHD..(SED,WG)..XL198705-199205

RH TRAFIC SPEC,HALOGEN WHITE

main81160-1A830iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)198708-199205

HALOGEN YELLOW

main81160-1A860iAE95..RHD..WG198802-198908

main81160-1A870iAE95..RHD..WG198802-198908

HALOGEN WHITE

main81160-1A870iAE95..RHD..WG198908-199009

main81160-1A880iAE95..RHD..WG198802-198908

RH TRAFIC SPEC,HALOGEN

main81160-1A880iAE95..RHD..WG198908-199009

RH TRAFIC SPEC

main81160-1A880iAE95..LHD..WG198802-199009

main81160-1A890iAE95..RHD..WG198908-199009

RH TRAFIC SPEC,HALOGEN WHITE

main81160-1A890iAE95..RHD..WG198802-198908

RH TRAFIC SPEC & HALOGEN WHITE

main81160-1A890iAE95..LHD..WG198802-199009

HALOGEN WHITE

main81160-1E010iAE95..LHD..WG198802-199009

HALOGEN YELLOW

main81160-1E110iAE92,CE90,EE90..LHD..(SED,WG)..MTM..(DSL,EFI)198908-199205

HALOGEN WHITE,*FRG

main81160-1E120iAE92,CE90,EE90..LHD..LB198908-199205

HALOGEN WHITE,*FRG

main81160-1E130iAE95..LHD..WG198908-199009

HALOGEN WHITE,*FRG

81175UNIT ASSY, HEADLAMP, LH

main81170-1A700iEE90..RHD..LB;AE9#..RHD..(LB,WG)..CBR198705-199205

main81170-1A710iEE90..RHD..LB..XL198705-199205

HALOGEN WHITE

main81170-1A720iAE95..LHD..WG;AE92,CE90,EE90..LHD..LB..(GL,GLI,XL,XLI)198705-199205

RH TRAFIC SPEC,HALOGEN

main81170-1A730iEE90..RHD..LB..XL198705-199205

HALOGEN WHITE,RH TRAFIC SPEC

main81170-1A730iEE90..RHD..LB..XL198705-199205

HALOGEN

main81170-1A730iAE95..LHD..WG198908-199009

HALOGEN YELLOW

main81170-1A730iAE92..LHD..GTI198705-199205

main81170-1A790iAE95..RHD..SED;CE90,EE90..RHD..(SED,WG)198705-198908

main81170-1A800iEE90..WG..GL;CE90,EE90..RHD..(SED,WG)..XL198705-199205

HALOGEN WHITE

main81170-1A810iEE90..WG..GL;AE95..RHD..SED;EE90..RHD..(SED,WG)..5F..XL198908-199205

RH TRAFIC SPEC

main81170-1A810iAE95..RHD..SED;CE90,EE90..RHD..(SED,WG)198705-198908

RH TRAFIC SPEC,HALOGEN

main81170-1A810iAE95..LHD..SED;AE92,CE90,EE90..LHD..(SED,WG)198705-199205

main81170-1A820iEE90..WG..GL;CE90,EE90..RHD..(SED,WG)..XL198705-198908

HALOGEN WHITE,RH TRAFIC SPEC

main81170-1A820iCE90..LHD..SED198705-199205

HALOGEN

main81170-1A820iAE95,CE90..RHD..SED;EE90..RHD..(SED,WG)198908-199205

RH TRAFIC SPEC,HALOGEN

main81170-1E110iAE92,CE90,EE90..LHD..(SED,WG)..MTM..(DSL,EFI)198908-199205

HALOGEN WHITE

main81170-1E120iAE95..WG..EFI;EE90..LB..5F..EFI;AE92,CE90..LB..(DSL,EFI)198908-199205

HALOGEN WHITE

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007502403

main90075-02403

9007510801

main90075-10801

9011906276

main90119-06276

9017906132

main90179-06132

12 parts on this diagram · 2 diagrams in section
