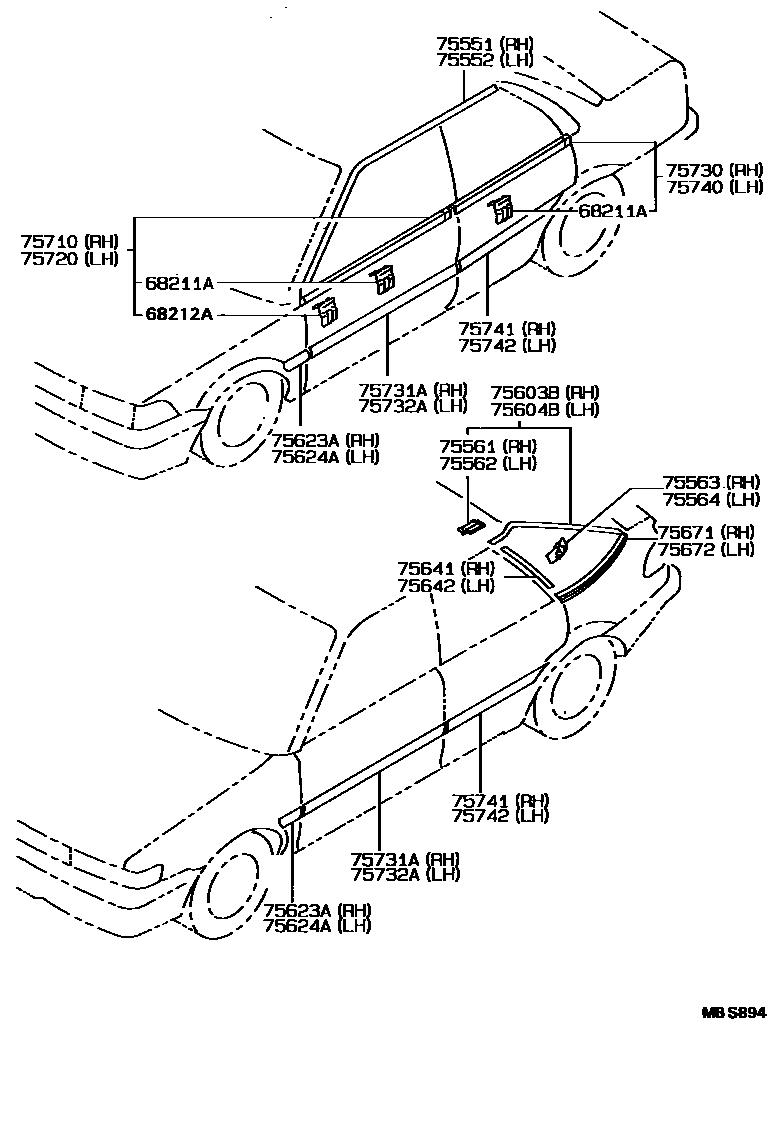

SIDE MOULDING

0001 1 0002 1 0003 1

68211ACLIP, DOOR BELT MOULDING

main68211-12130×24iAE95;AE92,CE90,EE90..SED..(GL,XL)198705-198908

68212ACLIP, DOOR GLASS WEATHERSTRIP, OUTER

main68212-12010×2iAE95;AE92,CE90,EE90..SED..(GL,XL)198705-198908

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-12370iAE9#,CE90,EE90..SED..(STD,XL,XLI)198705-199205

main75551-12380iAE9#,EE90..SED..(GL,GLI)198705-199205

main75551-12430iAE95..WG198802-199009

main75551-12440iAE92,CE90,EE90..LB..(GTI,XL,XLI)198705-199205

main75551-12450iAE92,EE90..LB..(GL,GLI)198705-199205

main75551-13071iCE90,EE90..WG..STD198708-199109

main75551-13081iAE92,CE90,EE90..WG..(XL,XLI)198708-199109

main75551-13091iEE90..WG..GL198708-199205

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-12370iAE9#,CE90,EE90..SED..(STD,XL,XLI)198705-199205

main75552-12380iAE9#,EE90..SED..(GL,GLI)198705-199205

main75552-12430iAE95..WG198802-199009

main75552-12440iAE92,CE90,EE90..LB..(GTI,XL,XLI)198705-199205

main75552-12450iAE92,EE90..LB..(GL,GLI)198705-199205

main75552-13071iCE90,EE90..WG..STD198708-199109

main75552-13081iAE92,CE90,EE90..WG..(XL,XLI)198708-199109

main75552-13091iEE90..WG..GL198708-199205

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-12020iAE92,CE90,EE90..LB198705-199205

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-12020iAE92,CE90,EE90..LB198705-199205

75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75563-12040iAE92,CE90,EE90..LB198705-199205

75564RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75564-12020iAE92,CE90,EE90..LB198705-199205

75603BMOULDING SUB-ASSY, QUARTER WINDOW OUTSIDE, RH

main75603-12100iAE92,CE90,EE90..LB..(GTI,XL,XLI)198705-199205

main75603-12110iAE92,EE90..LB..(GL,GLI)198705-199205

75604BMOULDING SUB-ASSY, QUARTER WINDOW OUTSIDE, LH

main75604-12040iAE92,CE90,EE90..LB..(GTI,XL,XLI)198705-199205

main75604-12050iAE92,EE90..LB..(GL,GLI)198705-199205

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-12460iEE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)198705-199205

main75623-12470iAE9#,EE90..SED..(GL,GLI)198705-199205

main75623-12490iAE92,CE90,EE90..LB198705-199205

main75623-12500-02iEE90..LHD..WG..XL198903

(SILVER SPEC),RED

sub75623-12600

main75623-12540-02iAE95..WG198908-199009

RED,040 ,168 ,27M ,4K1 ,8G2

main75623-12540-03iAE95..WG198908-199009

SILVER,25M ,26M ,3E5 ,3H4 ,6K6 ,8E9

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-12460iEE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)198705-199205

main75624-12470iAE9#,EE90..SED..(GL,GLI)198705-199205

main75624-12490iAE92,CE90,EE90..LB198705-199205

main75624-12500-02iEE90..LHD..WG..XL198903

(SILVER SPEC),RED

sub75624-12600

main75624-12540-02iAE95..WG198802-198808

RED,040 ,168 ,4H6 ,8D8

main75624-12540-03iAE95..WG198802-198908

SILVER,21G ,22G ,23G ,3E5 ,3H4 ,4H7 ,6J7 ,8E3

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main75641-12130iAE92,CE90,EE90..LB198705-199205

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main75642-12130iAE92,CE90,EE90..LB198705-199205

75671MOULDING, QUARTER BELT, RH

main75671-12130iAE92,CE90,EE90..LB..(GTI,XL,XLI)198705-199205

main75671-12140iAE92,EE90..LB..(GL,GLI)198705-199205

75672MOULDING, QUARTER BELT, LH

main75672-12140iAE92,CE90,EE90..LB..(GTI,XL,XLI)198705-199205

main75672-12150iAE92,EE90..LB..(GL,GLI)198705-199205

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12400iAE92,EE90..GL,GLI;AE95..SED..(GL,GLI)198705-199205

main75710-12410iAE95..WG;AE95..SED..(XL,XLI);AE92,CE90,EE90..GTI,XL,XLI198705-199205

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12400iAE92,EE90..GL,GLI;AE95..SED..(GL,GLI)198705-199205

main75720-12410iAE95..WG;AE95..SED..(XL,XLI);AE92,CE90,EE90..GTI,XL,XLI198705-199205

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-12070iAE9#,EE90..SED..(GL,GLI)198705-199205

main75730-12080iAE9#,CE90,EE90..SED..(XL,XLI)198705-199205

main75730-12100iAE92,EE90..LB..GL198705-198802

main75730-12101iAE92,EE90..LB..(GL,GLI)198802-199205

main75730-12110iAE92,CE90,EE90..LB..(GTI,XL)198705-198802

main75730-12111iAE92,CE90,EE90..LB..(GTI,XL,XLI)198802-199205

main75730-12130iEE90..WG..(XL,XLI);AE9#,CE90..WG..(GL,GLI,XL,XLI)198708-199205

main75730-13020iEE90..WG..GL198708-199205

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-12860iEE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)198705-199205

main75731-12870iAE9#,EE90..SED..(GL,GLI)198705-199205

main75731-12890iAE92,CE90,EE90..LB198705-199205

main75731-1A030-02iEE90..LHD..WG..XL198903

(SILVER SPEC),RED

sub75731-1A270

main75731-1A120-02iAE95..WG198908-199009

RED,040 ,168 ,27M ,4K1 ,8G2

main75731-1A120-03iAE95..WG198908-199009

SILVER,25M ,26M ,3E5 ,3H4 ,6K6 ,8E9

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-12700iEE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)198705-199205

main75732-12710iAE9#,EE90..SED..(GL,GLI)198705-199205

main75732-12730iAE92,CE90,EE90..LB198705-199205

main75732-12760-02iEE90..LHD..WG..XL198903

(SILVER SPEC),RED

sub75732-1A110

main75732-12850-02iAE95..WG198808-198908

RED,040 ,168 ,4H6 ,8G2

main75732-12850-03iAE95..WG198802-198908

SILVER,21G ,22G ,23G ,3E5 ,3H4 ,4H7 ,6J7 ,8E3

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-12160iAE9#,EE90..SED..(GL,GLI)198705-199205

main75740-12170iAE9#,CE90,EE90..SED..(XL,XLI)198705-199205

main75740-12190iAE92,EE90..LB..GL198705-198802

main75740-12191iAE92,EE90..LB..(GL,GLI)198802-199205

main75740-12200iAE92,CE90,EE90..LB..(GTI,XL)198705-198802

main75740-12201iAE92,CE90,EE90..LB..(GTI,XL,XLI)198802-199205

main75740-12220iEE90..WG..(XL,XLI);AE9#,CE90..WG..(GL,GLI,XL,XLI)198708-199205

main75740-13020iEE90..WG..GL198708-199205

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-12630iEE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)198705-199205

main75741-12640iAE9#,EE90..SED..(GL,GLI)198705-199205

main75741-12660iAE92,CE90,EE90..LB198705-199205

main75741-12670-02iEE90..LHD..WG..XL198903

(SILVER SPEC),RED

sub75741-12800

main75741-12710-02iAE95..WG198802-198808

RED,040 ,168 ,4H6 ,8D8

main75741-12710-03iAE95..WG198802-198908

SILVER,21G ,22G ,23G ,3E5 ,3H4 ,4H7 ,6J7 ,8E3

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-12610iEE90..WG..GL;AE95..SED..(XL,XLI);AE92,CE90,EE90..(SED,WG)..(STD,XL,XLI)198705-199205

main75742-12620iAE9#,EE90..SED..(GL,GLI)198705-199205

main75742-12640iAE92,CE90,EE90..LB198705-199205

main75742-12650-02iEE90..LHD..WG..XL198903

(SILVER SPEC),RED

sub75742-12790

main75742-12690-02iAE95..WG198908-199009

RED,040 ,168 ,27M ,4K1 ,8G2

main75742-12690-03iAE95..WG198908-199009

SILVER,25M ,26M ,3E5 ,3H4 ,6K6 ,8E9

24 parts on this diagram · 3 diagrams in section
