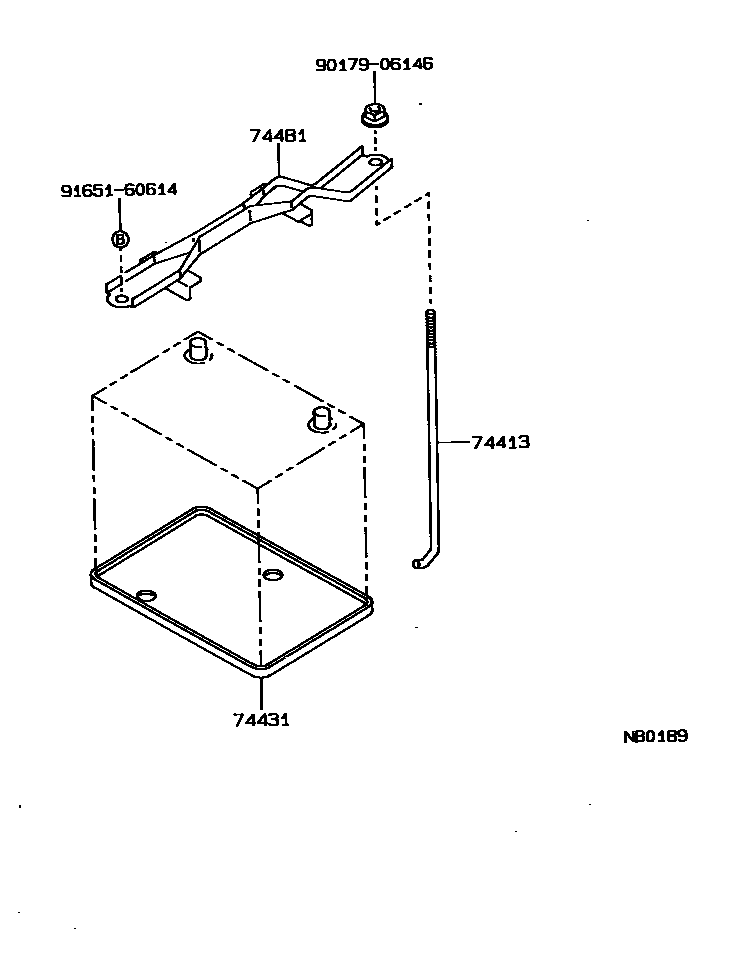

BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-12050iAE9#,CE90,EE90198705-199205

74431TRAY, BATTERY

main74431-12010iEE90198705-199205

W(50AH,50D20L-MF BATTERY)

sub74431-35030

main74431-12010iEE90198705-199205

W(60AH,55D23L-MF BATTERY)

sub74431-35030

main74431-14020iAE9#,EE90198705-199205

main74431-14030iCE90198705-199205

sub74431-52040

main74431-14040iCE90198705-199205

W(95D31L-MF BATTERY)

74481CLAMP, BATTERY HOLD DOWN

main74404-12260iAE9#,EE90198705-199205

main74404-12270iAE9#198705-199205

W(55D23L-MF BATTERY)

main74404-12270iAE9#198705-199205

W(50AH,50D20L-MF BATTERY)

main74404-12280iCE90198705-199205

9017906146

main90179-06146

9165160614

main91651-60614

5 parts on this diagram · 1 diagram in section
